8
For detailed instructions and drilling template, refer to the compatible keypad section and select your keypad to be
redirected to the corresponding techbook�
Keypad installation
Installation
The following material
is recommended:
4- # 10 screws of
appropriate length with
round, truss or pan head�
4- washers �5 OD» x
�0625» thickness
(12 mm OD x 1�5 mm)

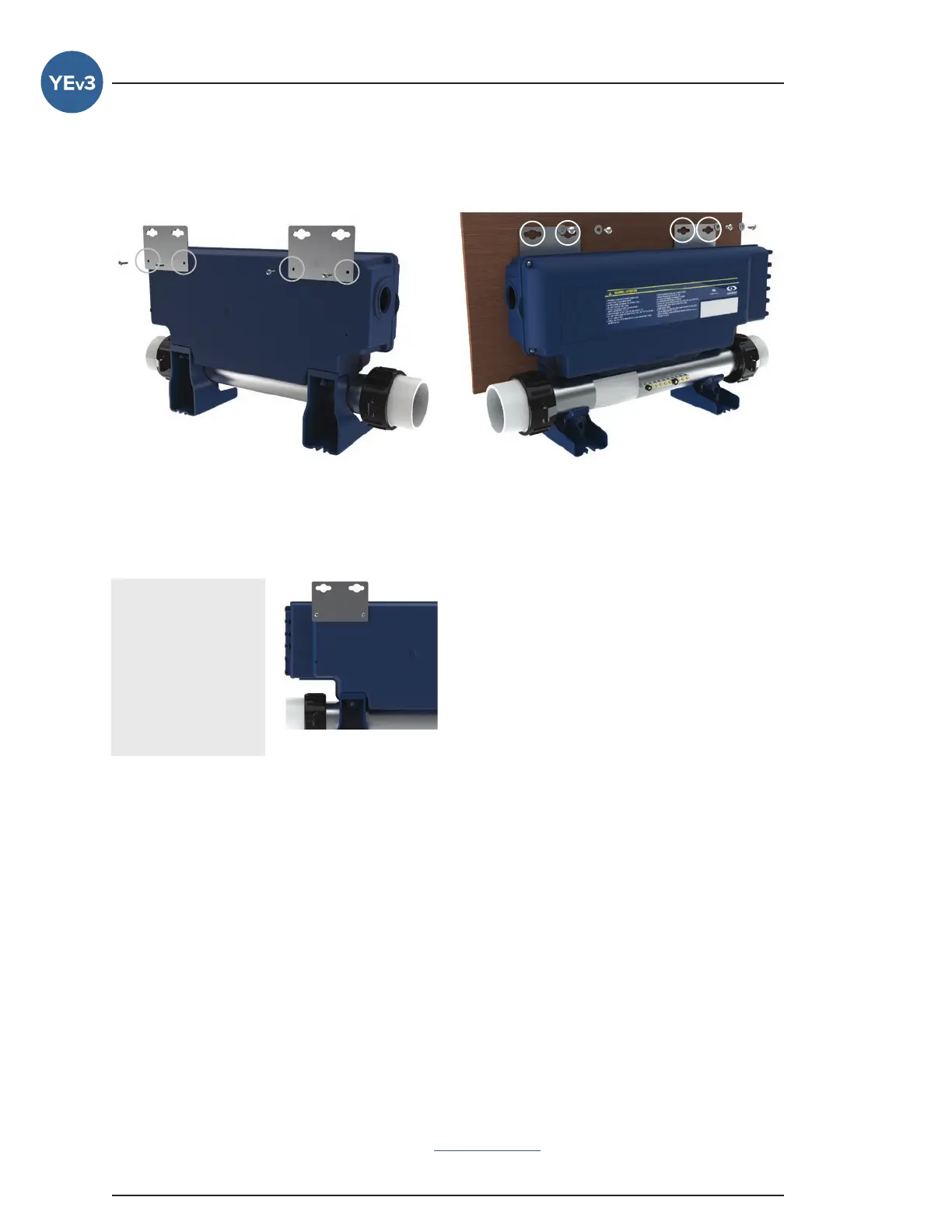

Use 2 standard 2" x 4" or 2" x 6" wall studs, spaced
17-inch from center to center to fix the spa pack�
Firmly attach, one at a time, external mounting holes on
each side of the spa pack with 2 screws backed by
2 washers�
Firmly attach internal mounting holes on each side of the
pack with the 2 remaining screws and 2 washers�
Internal and external holes are distant from 2'' (51 mm)
on the mounting braket�
Part number: Wall mount bracket kit 100 pcs - 9920-101474
(with 200 screws to attach to pack)
Install mounting brackets on both sides on the top at the
rear, using screws provided with the brackets�
Torque screws to 13 in� lb max (1�49 N�m)�
Wall installation procedure with optional wall mounting brackets (option 2)
