Geeetech A30 Building Instructions

4
Bottom frame parts, Vertical frame parts, Control box
Materials in the Tool Box
4* M5x20mm hex screws, 4 spring washers, Filament spool, 2* M3x6mm screws, Power
cable, Blue A-B USB cord, 2* Z axis stator kits, 3D touch stator, Filament detector kit,
Ties, Allen key, Pin, Starter filament, Spare screw package, TF card
Tips:
1. Before assembly, you are advised to put all the parts, especially the screws and nuts in
order, which would save you much time in looking for the required parts.
2. The part ID is corresponding to the number labeled on the bag of each part. Some
parts may not have labels and you can refer to the pictures on the package list.
2. Assembly

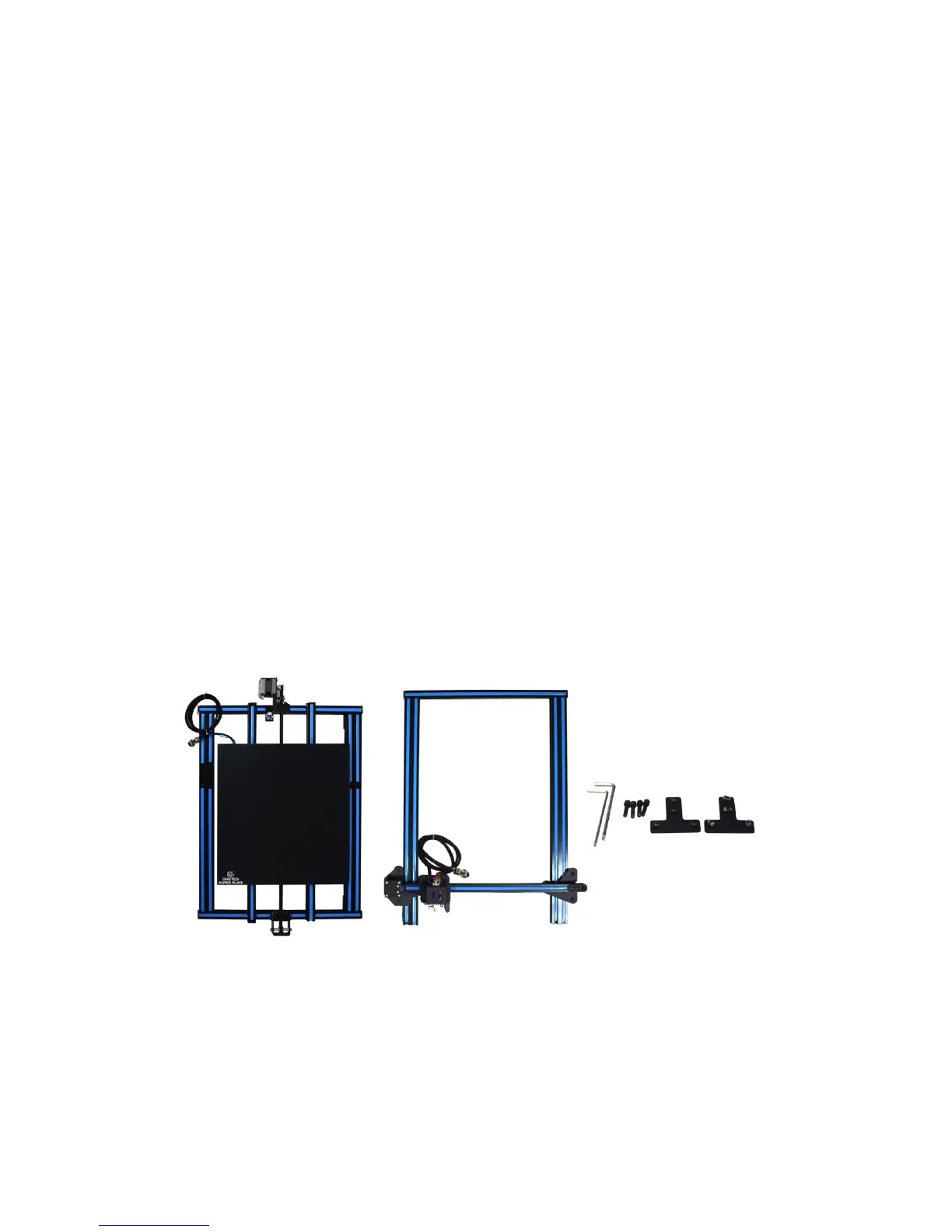

Step 1. Prepare the following parts for assembling:
Bottom frame parts, vertical frame parts, 4* M5x20mm hex screws and 4 spring
washers, 2*Z axis stators
Step 2. Place the vertical frame parts on the bottom frame one (Note: Just keep the
ends of the blue strips on the two frames meet each other.)

Geeetech A30 Specifications

General

Build Volume	320 x 320 x 420 mm
Nozzle Diameter	0.4 mm
Filament Diameter	1.75 mm
Connectivity	USB, SD card
Frame Material	Aluminum
Printing Technology	FDM (Fused Deposition Modeling)
Heated Bed	Yes
Supported Filaments	PLA, ABS, PETG
Display	LCD
Power Supply	24V
Bed Temperature	Up to 110°C
Nozzle Temperature	Up to 250°C
Printing Platform	Removable glass platform
