30
Instrument cluster

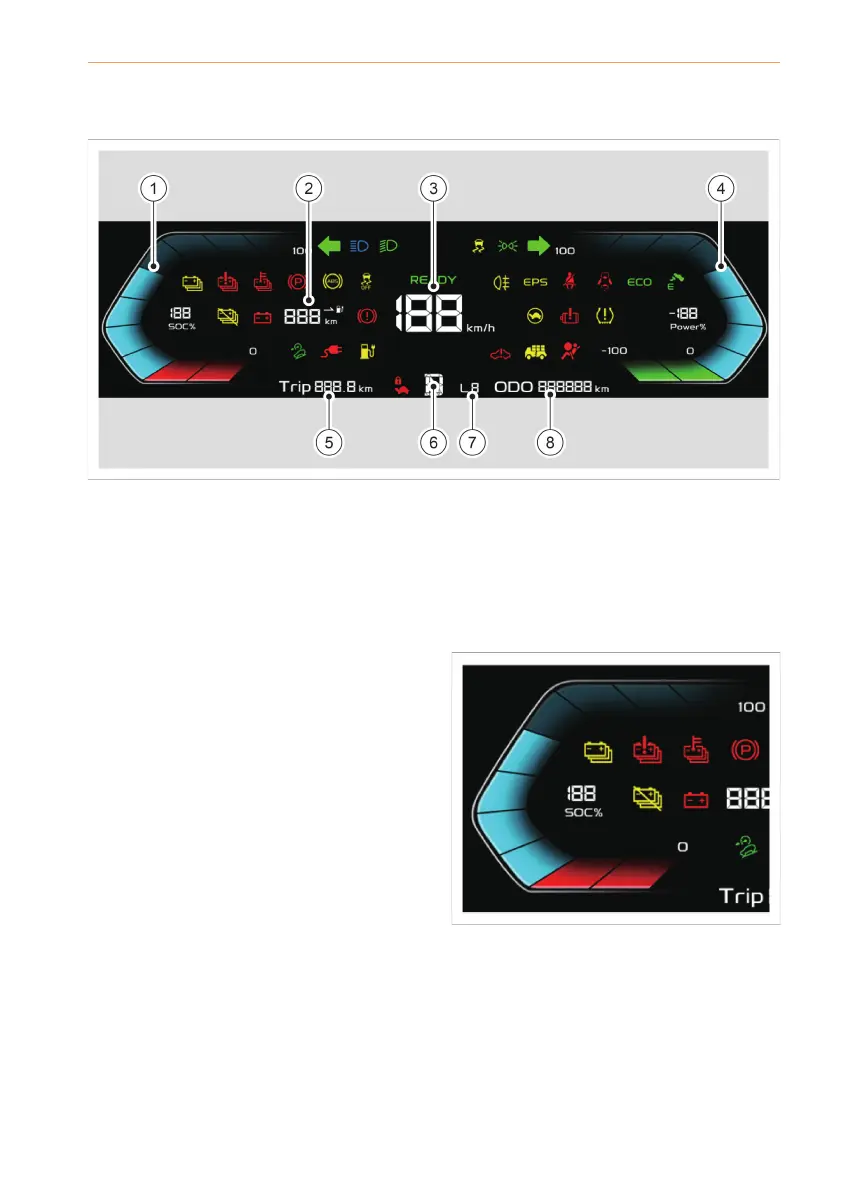

Overview of Instrument Cluster
1
SOC indicator
5
Trip mileage
2 Driving range 6 Gear
3
Vehicle speed
7
Energy recovery level
4
power meter
8
Total Mileage
Pointer gauge
SOC indicator
When the Start switch is turned to “ON”,
the SOC indicator will display the current
remaining SOC of the power battery.
The upper limit of the SOC indicator is
100%, and the lower limit is 0. There are 10
grids in total; the upper 8 grids are
displayed in blue, and the lower 2 grids are
displayed in red. When the SOC of the
Instrument and control
