Getting Started
Back
ID Name Description
1 DVI In Connect the included DVI cable from this
connector to the DVI source.
2 RS-232 Connect the included RS-232 cable from this
port to an RS-232 device.
See Using RS-232 for details.
4 Line In Connect a 3.5mm mini-stereo cable from the
Line Out jack on the multimedia PC to this
jack.
5 USB Connect a USB cable from the computer to
this USB port.
4 Line Out Connect a 3.5mm mini-stereo cable from this
jack to the Line In jack of a multimedia PC.
6 LAN Connects the Sender unit to the network
(or directly to the Receiver unit) using an
Ethernet cable.
7 IR Out Connect an IR Blaster cable (Gefen part no.
EXT-2IREMIT) from this jack to the Hi-Def
source to control the source from the viewing
location.
8 5V DC Connect the included 5V DC locking power
supply to this power receptacle.
1 6543 7
8
2

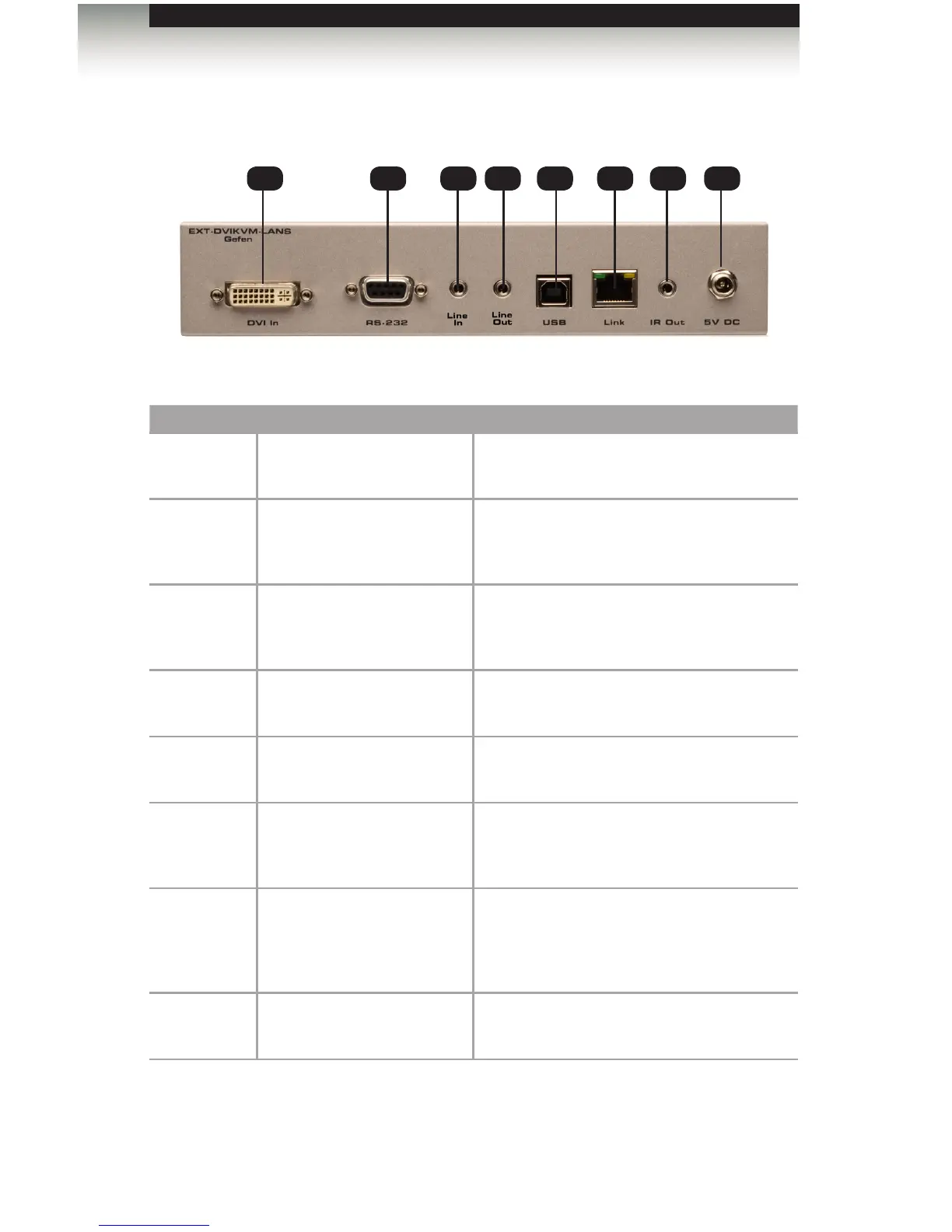

Sender Unit Layout
