Gefen EXT-DVIKVM-LAN - Sample Wiring Diagram

page | 11
Getting Started

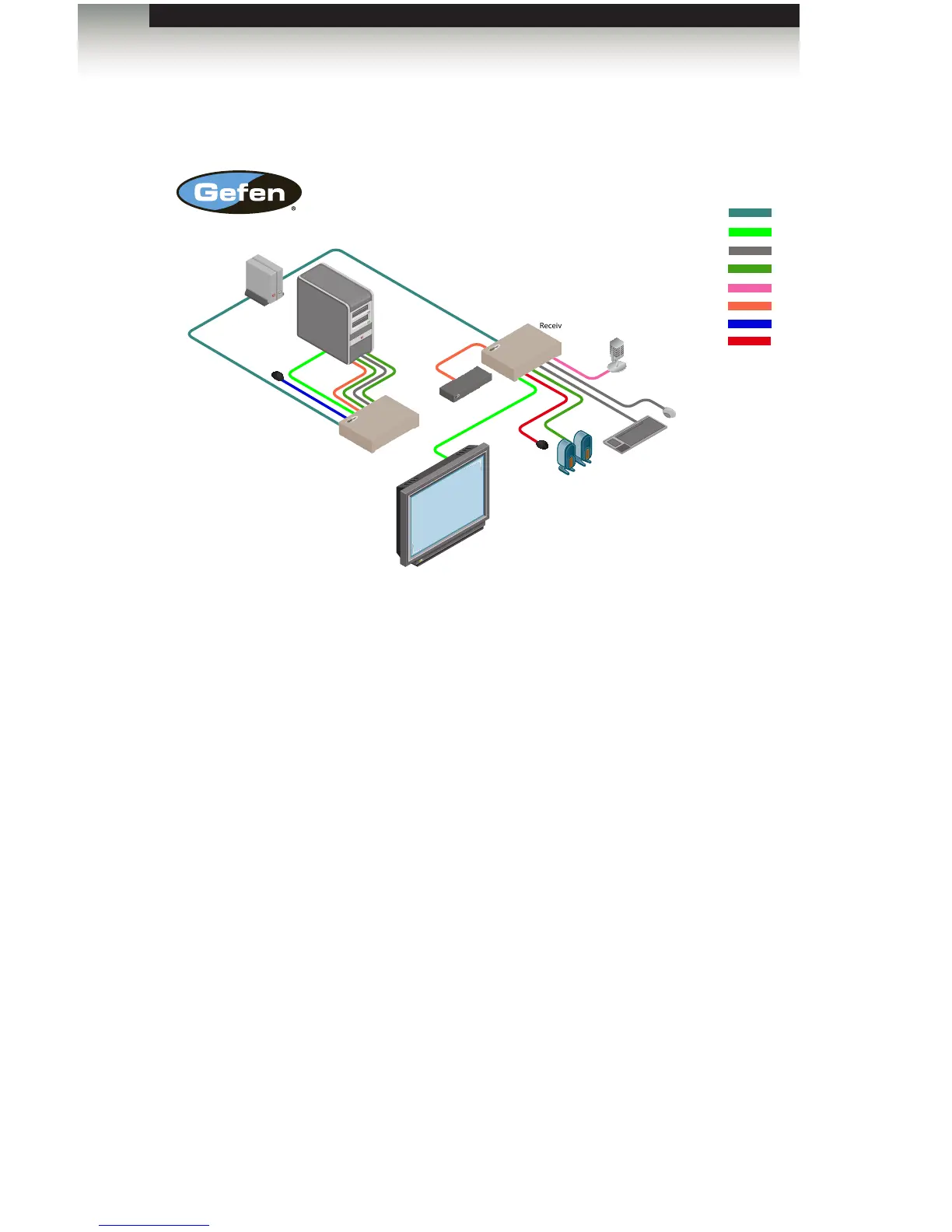

Sample Wiring Diagram
Installation
EXT-DVIKVM-LAN
CAT-5 CABLE
(Up to 330 ft)
DVI CABLE
USB CABLE
AUDIO CABLE
MIC CABLE
RS-232 CABLE
HD Display
RS-232 Controlled
Device
Microphone
Multimedia PC
IR Emitter
IR Extender
USB Keyboard
Powered Speakers
or headphones
USB Mouse
Receiver
Sender
Gigabit Switch
IR EMITTER
IR EXTENDER
