Gefen EXT-DVIKVM-LAN - Rack Tray Installation

page | 48
The following illustrations provide instructions for installing the Sender and/or Receiver
unit(s) in the Gefen 1U Rack Tray (Gefen part no. EXT-RACK-1U).
Appendix
Rack Tray Installation
Step 1 Step 2
Step 3 Step 4
Step 5 Step 6

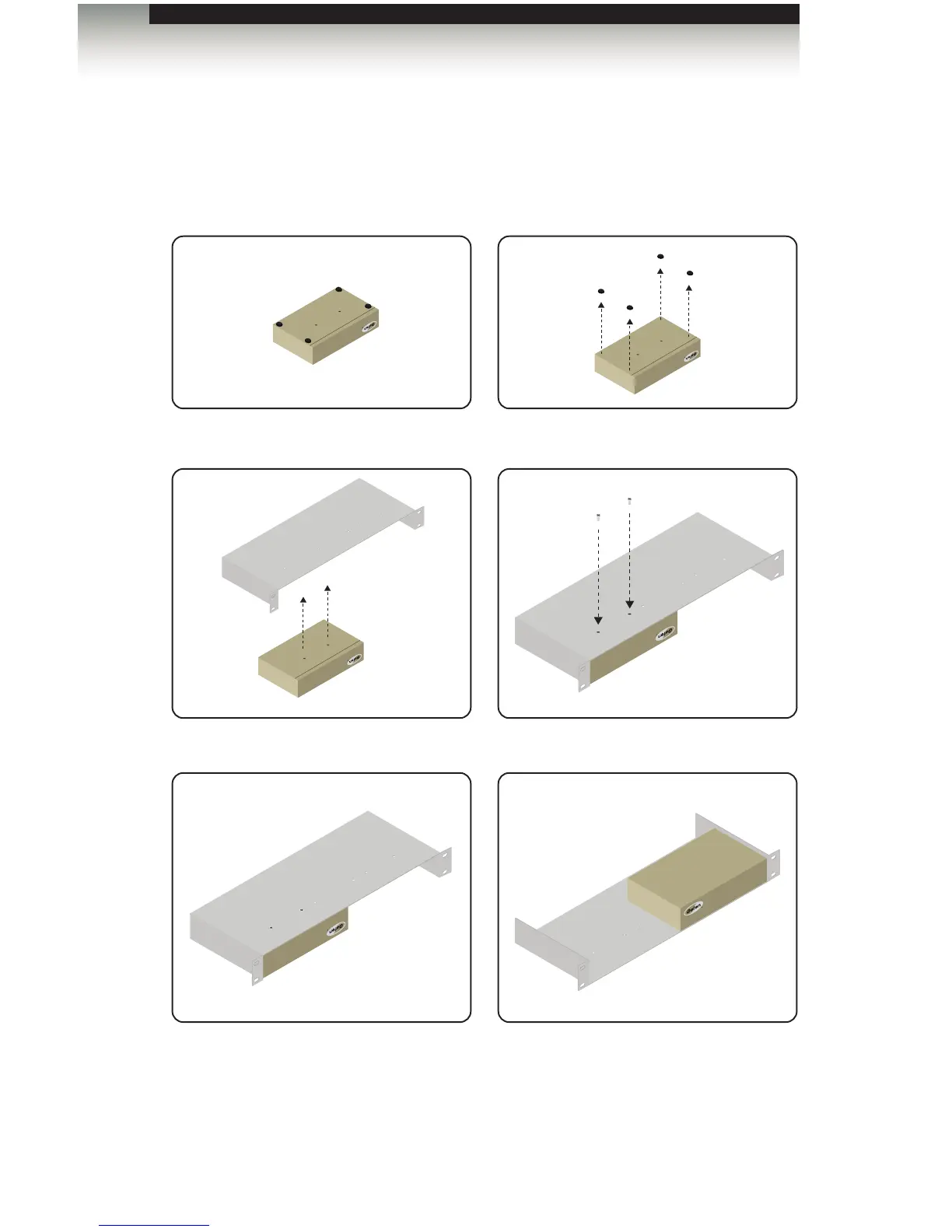

Turn unit upside down. Remove rubber feet.
Line up holes on unit and rack tray. Install countersink screws .
Ensure the unit is installed securely. Unit has been installed into rack tray.
