ADL300-EPCv2- User Guide Page 11 of 64

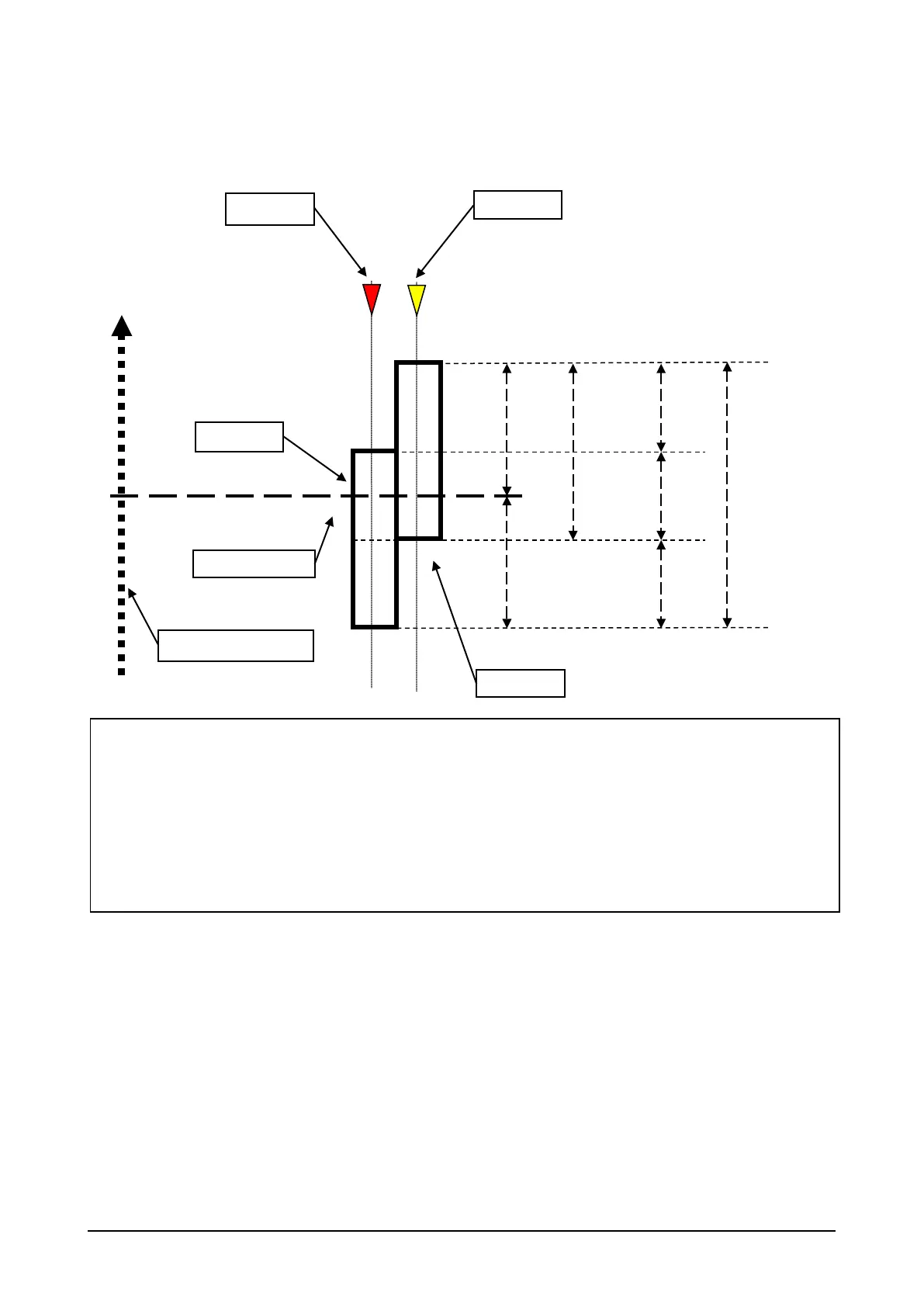

Layout of floor counter cams
The cams must be arranged as follows with respect to the lift floor:
LC Length of cam A and of cam B.
d1 = d2 Distance between the lower edge of cam A and the line of the floor.
Distance between the upper edge of cam B and the line of the floor.
z1, z2, z3 >= LC / 2 Dimension of an acquisition zone.
This value must be greater than or equal to LunghezzaMinimaCamma / 2.
Landing Zone = (LC / 2) * 3 Dimension of the landing zone
LC
d1
d2
z1
z2
z2
Cam A
Cam B
Line of the floor
Landing
Zone
Positive direction
Sensor B
Sensor A
