ADL300-EPCv2- User Guide Page 12 of 64

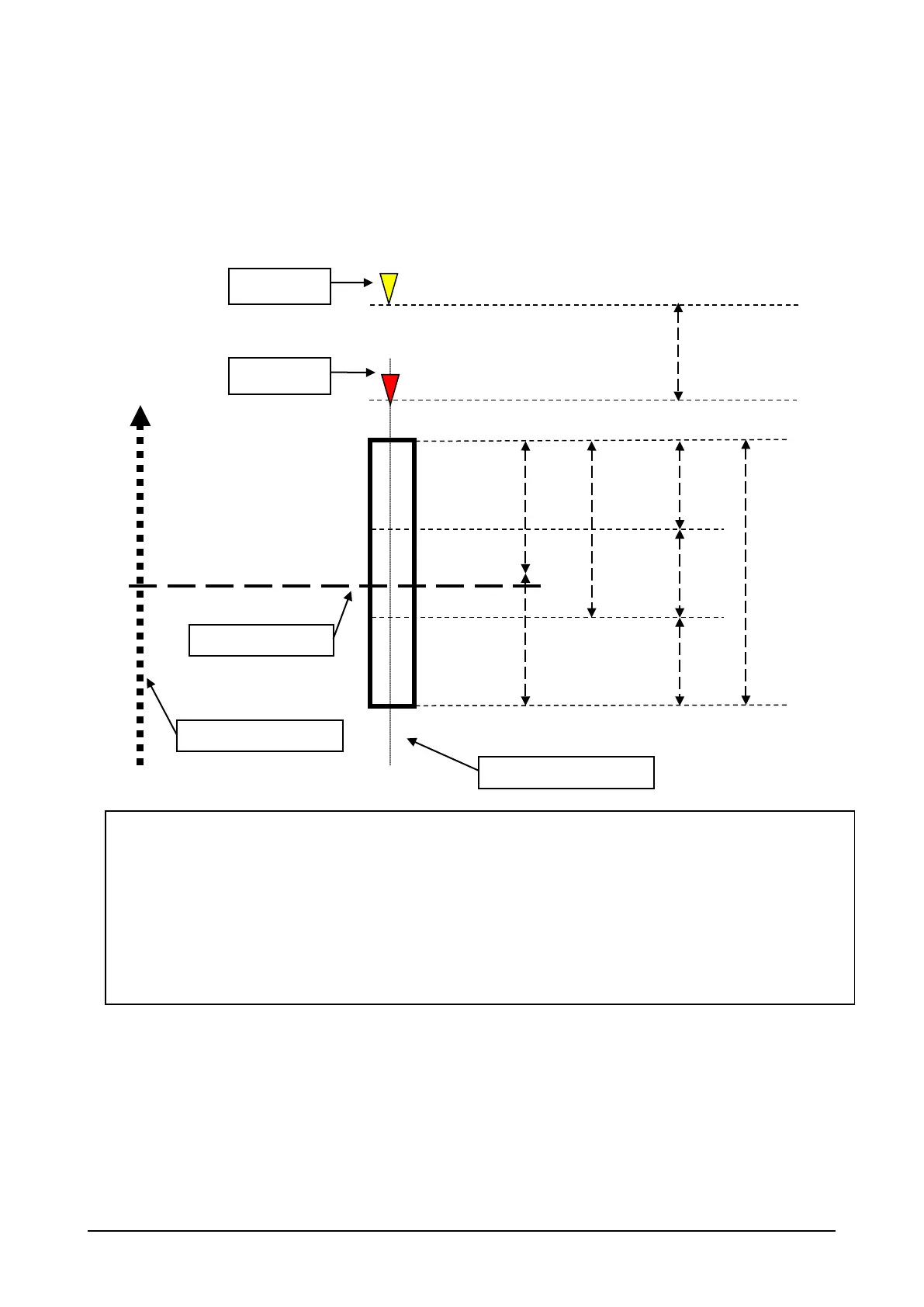

The figure below shows a possible alternative cam and sensor layout. This second method is functionally
identical to that illustrated on the previous page but simpler to install and service. For further details please
see appendix B.
Landing zone cam
LC => LunghezzaMinimaCamma Length of cam A and of cam B.
d1 = d2 Distance between the upper edge of cam A and the line of the floor.
Distance between the lower edge of cam B and the line of the floor.
z1, z2, z3 >= LC / 2 Dimension of an acquisition zone.
This value must be greater than or equal to LunghezzaMinimaCamma / 2.
Landing Zone = (LC / 2) * 3 Dimension of the landing zone
Line of the floor
LC
d1
d2
z1
z2
z2
Landing
Zone
Positive direction
Sensor A
Sensor B
z1
