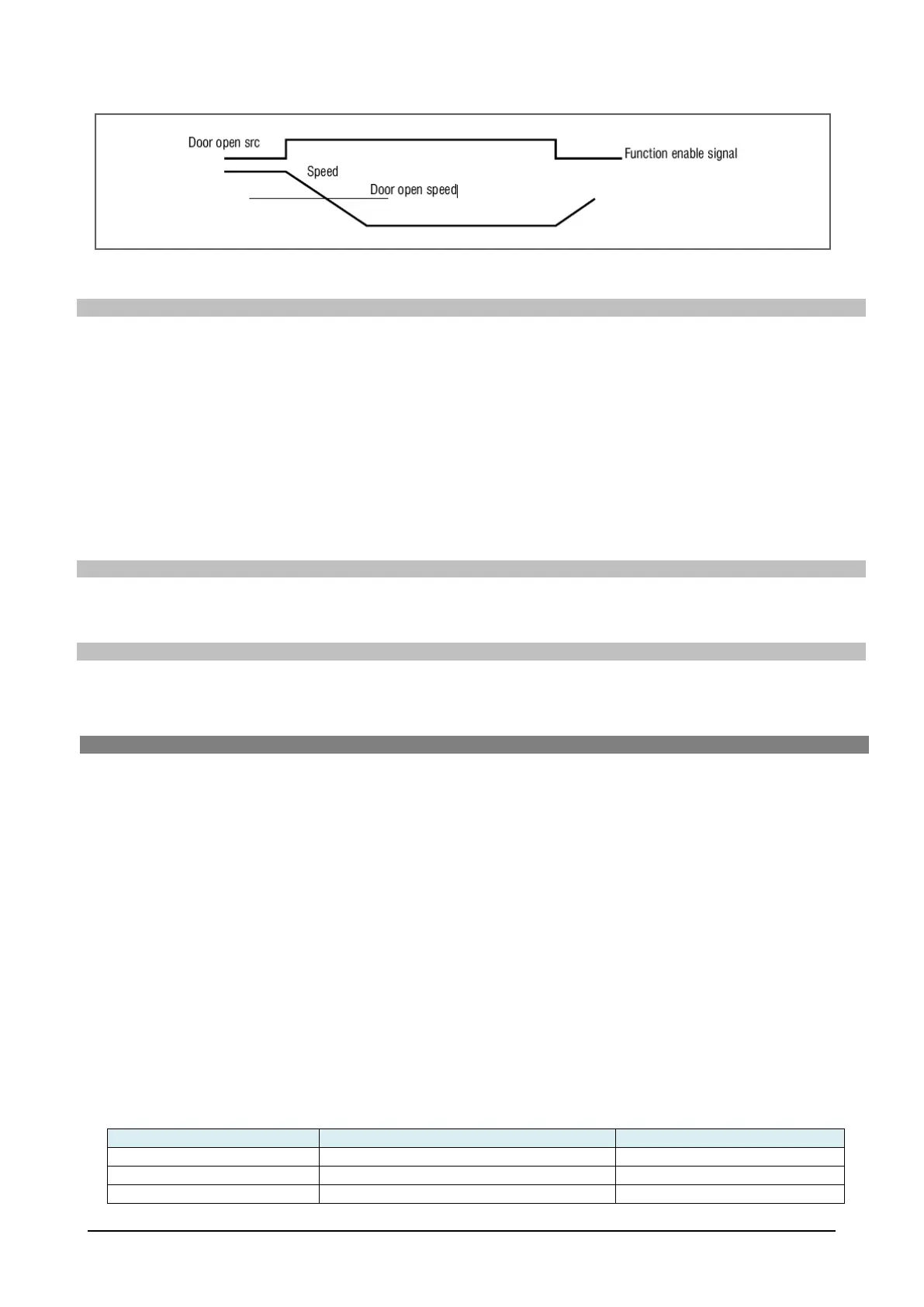

ADL300-EPCv2- User Guide Page 33 of 64
The currently selected speed is displayed.
0 Multispeed 0
1 fwd/rev speed
2 Zero cycle speed
3 Jog speed
4 Self study speed
5 Battery mode speed
6 Multispeed 6
7 Multispeed 7
8 Null
The lift car speed is displayed in m/s.
Lift sequence status display.
The input commands of the EPC lift application can be connected to a signal via a switch that can be used to
select from among a series of options listed in the selection list.
The selection list can be used to select from among the following options for each single command:
- Null or One
- Digital Inputs of the I/O expansion card
- Some internal signals (e.g. “Brake cont mon” ..)
- A selectable “LiftDecomp1” bit (e.g. “Lift decom1 B0”)
- A selectable “LiftDecomp2” bit (e.g. “Lift decom2 B0”)
- PAD15
In I/O configuration the commands are connected to digital inputs
In the CANopen configuration they are connected to the LiftDecomp connected in turn for instance via the
variable Control word 2 to a fieldbus process channel e.g. PDC FieldBus M->S2..
The variable Control word 2 can generally be connected to another fieldbus process channel or to the drive
parameter Wcomp or to PAD16.
The default configuration is shown in the table below:
5.4.10 12024
Actual Multispeed Sel ENUM 0 0 8 R FVS
5.4.11 12026
Actual Multi spd out m/s FLOAT 0 R FVS
Actual Lift State INT R FVS
