ADL300 - Fast installations and commissioning Pag. 22 of 52

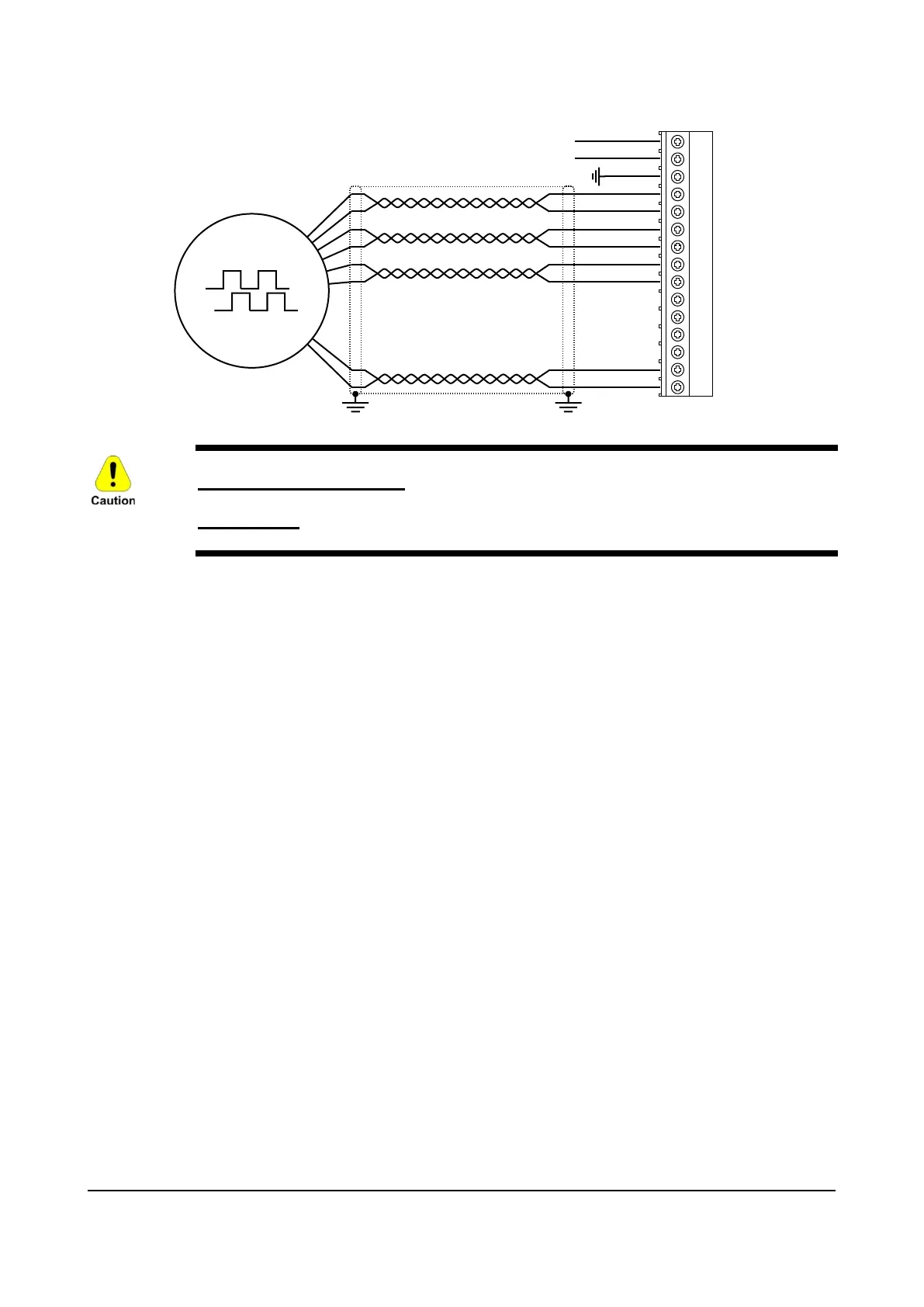

(4) Connection EnDat Encoder Full Digital + 2 Freeze
(*) Connection of shielding, see figure 4.3.4
(**) Caution - If not strictly observed, could result in damage to or destruction of encoder!
ADL300B-...-...-F-4-C - E24I models: do no connect SENSOR-0V (VS- XE.8) and SENSOR-Up (VS+ XE.9).Based
on standard cable do not use PIN 1 and PIN 4
All other models: VS+ / VS- : optional (encoder power supply feedback)
DT-
DT+
CK-
CK+
0VE out
+VE out
VS-
VS+
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
(*)
(**)
(**)
Fast input 2
Fast input 1
CM
XE
