917001/CP0905 59
Changing Fuel Filter
The loader has a fuel filter located on the left side of the engine, in front of the
battery. Follow the ROPS/FOPS and Lock Mechanism procedure (page 50) to lift
up the ROPS and access the filter. Clamp off the fuel line to stop fuel flow
BEFORE replacing the filter. Remove the spin-on filter cartridge. Install the new
cartridge and check for leaks.
Hydraulic System
Refer to the Maintenance Interval chart (page 75) for service intervals. Refer to
the Replacement Parts chart (page 48) for filter part numbers.
Before servicing the hydraulic system, be
sure the lift arm is lowered.
Checking Hydraulic Oil Level
The loader has a sight gauge located at the
right rear of the skid-steer loader inside
the engine compartment (Figure 39).
Check the fluid level with the lift arm
lowered and the attachment on the
ground.
Add hydraulic oil as required. Refer to the
Lubrication chart (page 52). Replace the
fill cap.
Changing Hydraulic Oil Filter‘
To check the hydraulic filter element, run
the engine at full throttle and normal
operating temperature. Lift the engine
access cover. Observe the hydraulic filter
indicator located on the filter head
(Figure 40). If the indicator is green, the
filter does not need replacing. If the indi-
cator is red, replace the filter following
the instructions below.
1. Turn off the engine.
2. Open the reservoir drain plug located
on the inside bottom of the right riser.
3. Drain the oil out to a level below the
point where the filter attaches to the reservoir.
4. Replace the reservoir drain plug.
WARNING

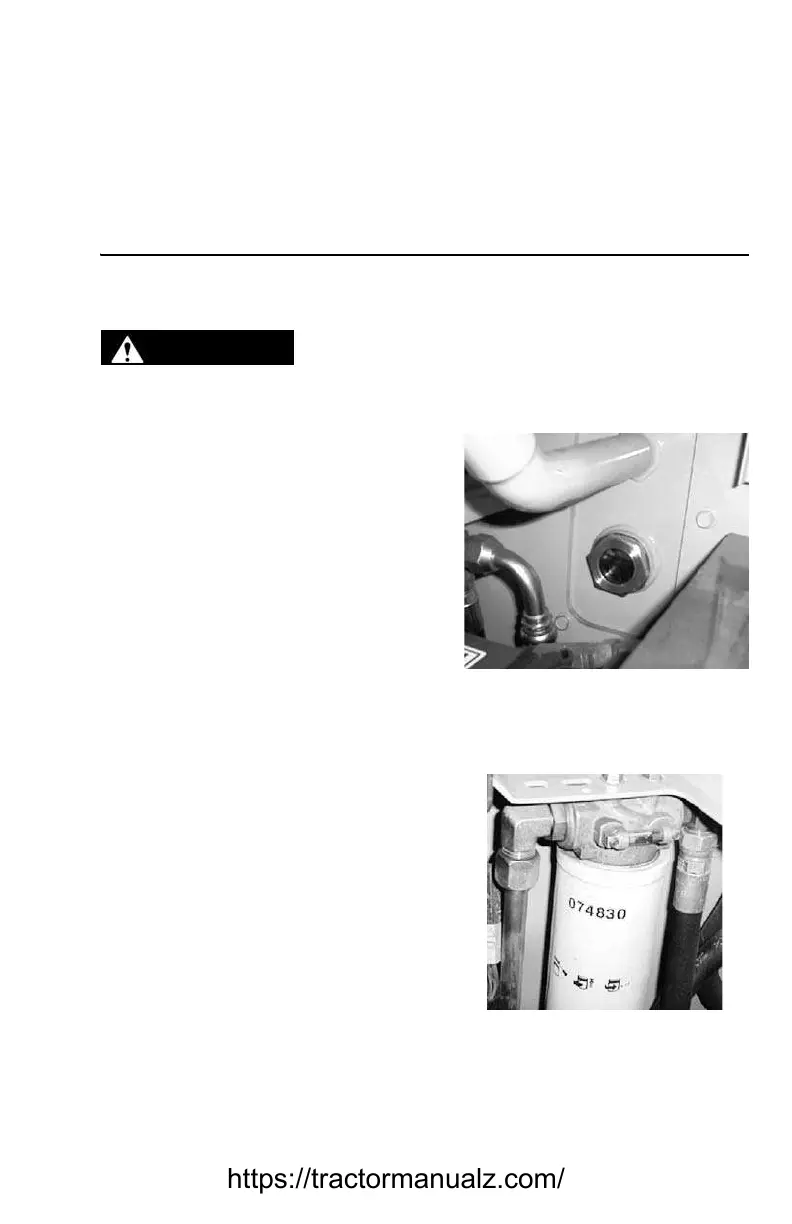

Figure 39 Sight Gauge
and Fill Tube
Figure 40 Hydraulic Oil Filter
and Indicator
