Gehl V270 - Page 34

30 917387/BP0310
8. Light Switch – Controls all the lights on the
loader. Symbols denote the four positions of
the light switch. In a clockwise direction
these are:
Domestic Machines:
A
– Off
B
– Tail lights (position lights), if the
machine has the optional flasher kit, the
lights will be on steady. If the flasher switch
is set to on, the position lights be over-ridden
and the lights will flash.
C
– Front work/road lights with rear tail
lights (position lights)
D
– Front and rear work lights
Eu Machines:
A
– Off
B
– Position lights on the four corners of the machine (EU-light kit) are
lighted steady. If the turn signal (EU Option) is activated while the position
lights are on, the selected side will flash, while the other side will be lighted
steady.
C
– Road lights are on as rear tail lights (position lights)
D
– Front and rear work lights
For the lights to function, the keyswitch must be in the RUN position.
8

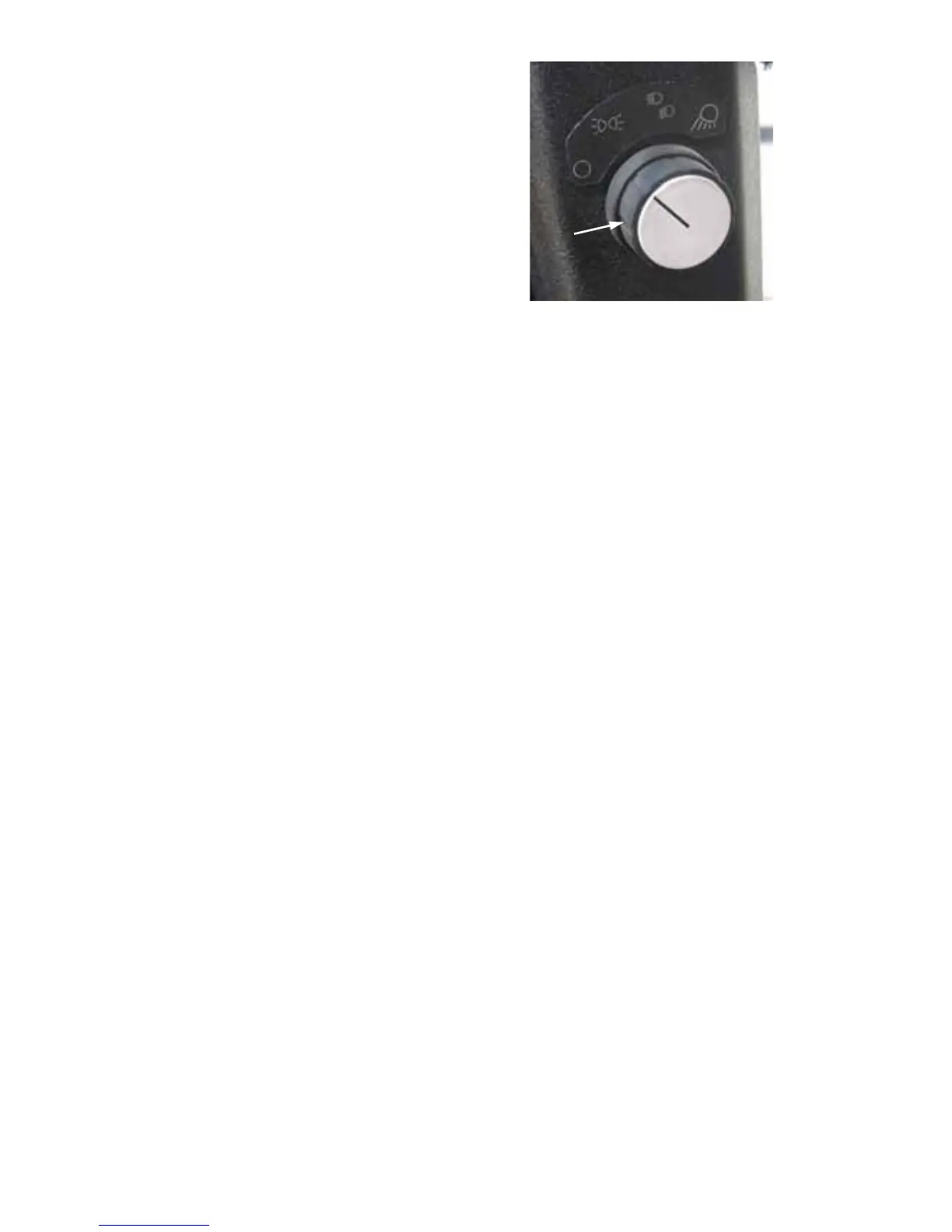

Figure 11 Lower Left Panel
A
B
C
D
