54 917387/BP0310
Tilting Back the ROPS/FOPS
A manual hydraulic pump in the engine
compartment is used to tilt back the ROPS/
FOPS. The pump handle is stored in the
rear door. A manual lock mechanism
engages to lock the ROPS/FOPS in a
tilted-back position. To tilt back the ROPS/
FOPS, use the following procedure:
1. Remove the two anchor bolts at the
front of the ROPS/FOPS.
2. Insert the pump handle in to the pump.
3. Tighten the needle valve.
4. Pump until the ROPS/FOPS is tilted
back enough that the lock mechanism
underneath the right side of the ROPS/
FOPS engages.
5. To lower the ROPS/FOPS, return the lock mechanism to the unlocked posi-
tion, and gradually loosen the needle valve. The ROPS/FOPS will slowly
lower. Reinstall the anchor bolts, washers and locknuts. Refer to the Torque
Specifications chart (page 91) for torque information.
Never operate the loader with the ROPS/FOPS
removed or tilted back. Be sure the lock
mechanism is securely engaged when the ROPS/FOPS is tilted
back. Be sure to reinstall the anchor bolts, washers and locknuts
before resuming operation.
Adjustments
Control Handles
The control handles do not require routine adjustment. Refer to the Service
Manual for the initial setup procedure.
Removing Foreign Material
The loader should be cleared daily of dirt and other foreign materials in the
following areas:
• around the lift cylinders
• at the front of the loader
• on the hitch, especially around tilt cylinder
• around the hydraulic oil reservoir breather
• in the engine compartment
• in the operator’s compartment

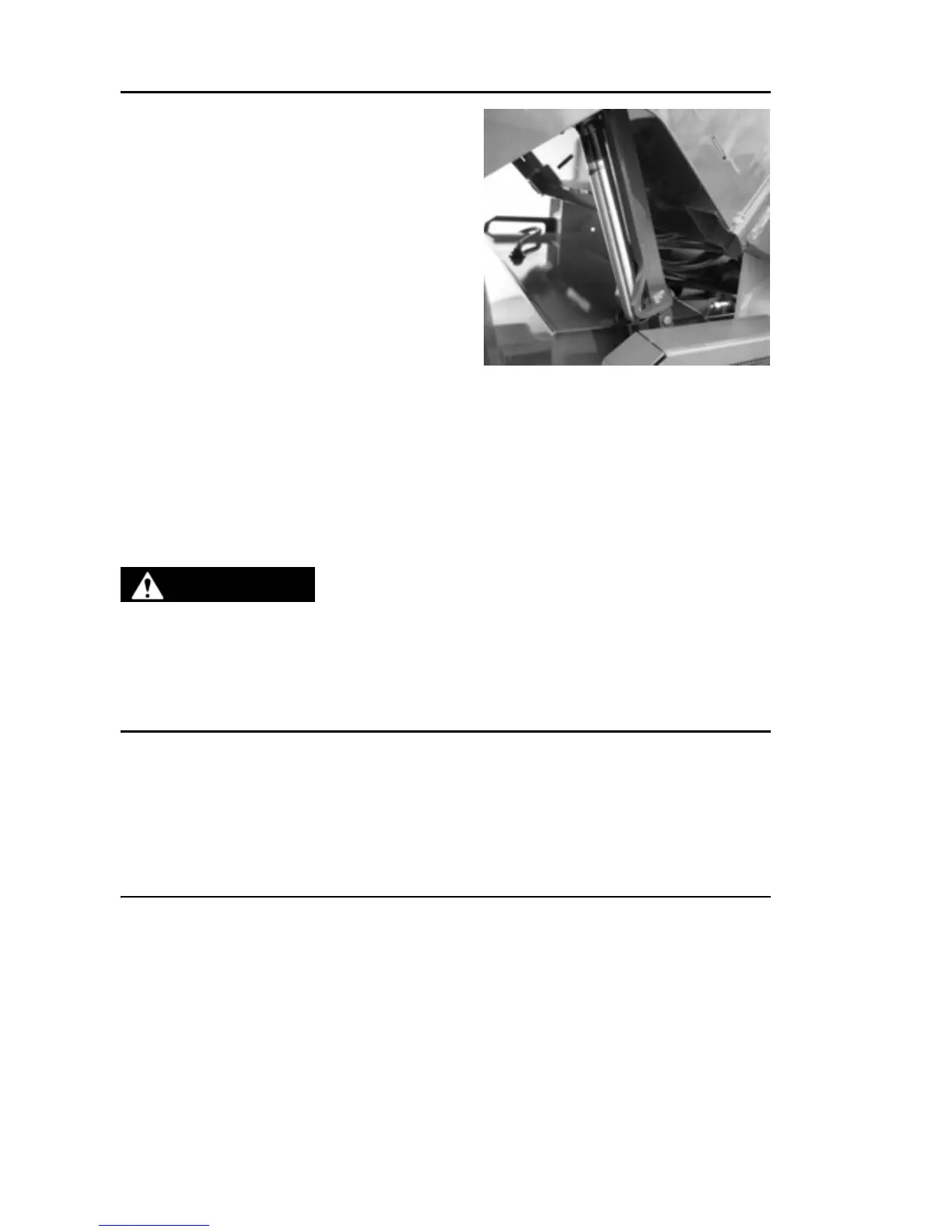

Figure 28 ROPS/FOPS
Lock Mechanism – Engaged
WARNING
