917387/BP0310 29
Instrument Panels
Left Panel
1. Indicator and Warning Lamp Display –
See page 27.
2. Rotating Beacon/Strobe Switch (optional)
– Controls the warning lamp (strobe or bea-
con).
3. Hazard/Flasher Switch (optional) – Con-
trols hazard/flasher.
4. High/Low Beam Switch (EU optional) –
Controls road head lights between main/
upper beams and dimmed/lower beams.
Switch does not turn lights on or off.
5. Turn Signal Switch (EU optional) – Used
to turn on turn indicator lights. Directional
indicator lights are the same lights as the
flashers. The flashers will override the turn
signals.
6. High-Flow Auxiliary Switch (optional) –
Controls the direction of hydraulic oil flow.
Push the right side of the rocker switch for
forward flow, or the left side for reverse
flow. To disengage, push and release either
side of the switch, or raise the restraint bar.
Turning off the machine and restarting the
engine will also reset the high-flow to neu-
tral.
7. Power-A-Tach
®
System Switch – Used to
energize Power-A-Tach System. (See page 31, Number 8)
1
23
5
4
6
7
8
9
7

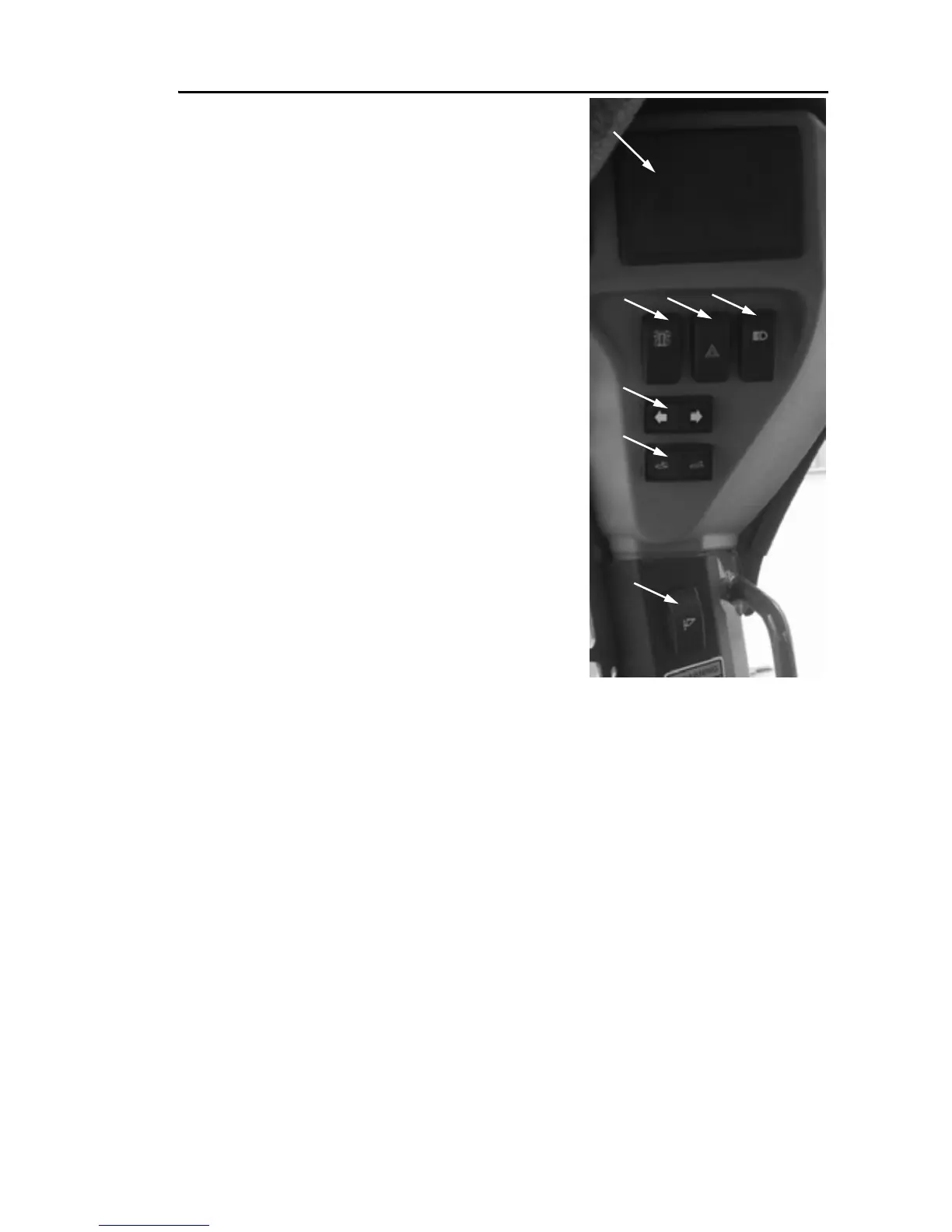

Figure 10 Left Panel
