Gema ZA08 - Operation; Control Unit Operation

Rev. 01 11/22
ZA08 Operation
•
33
Operation
The axis is operated exclusively by the OptiMove CRxx axis control unit.
See chapter "Technical Data" on page 21.

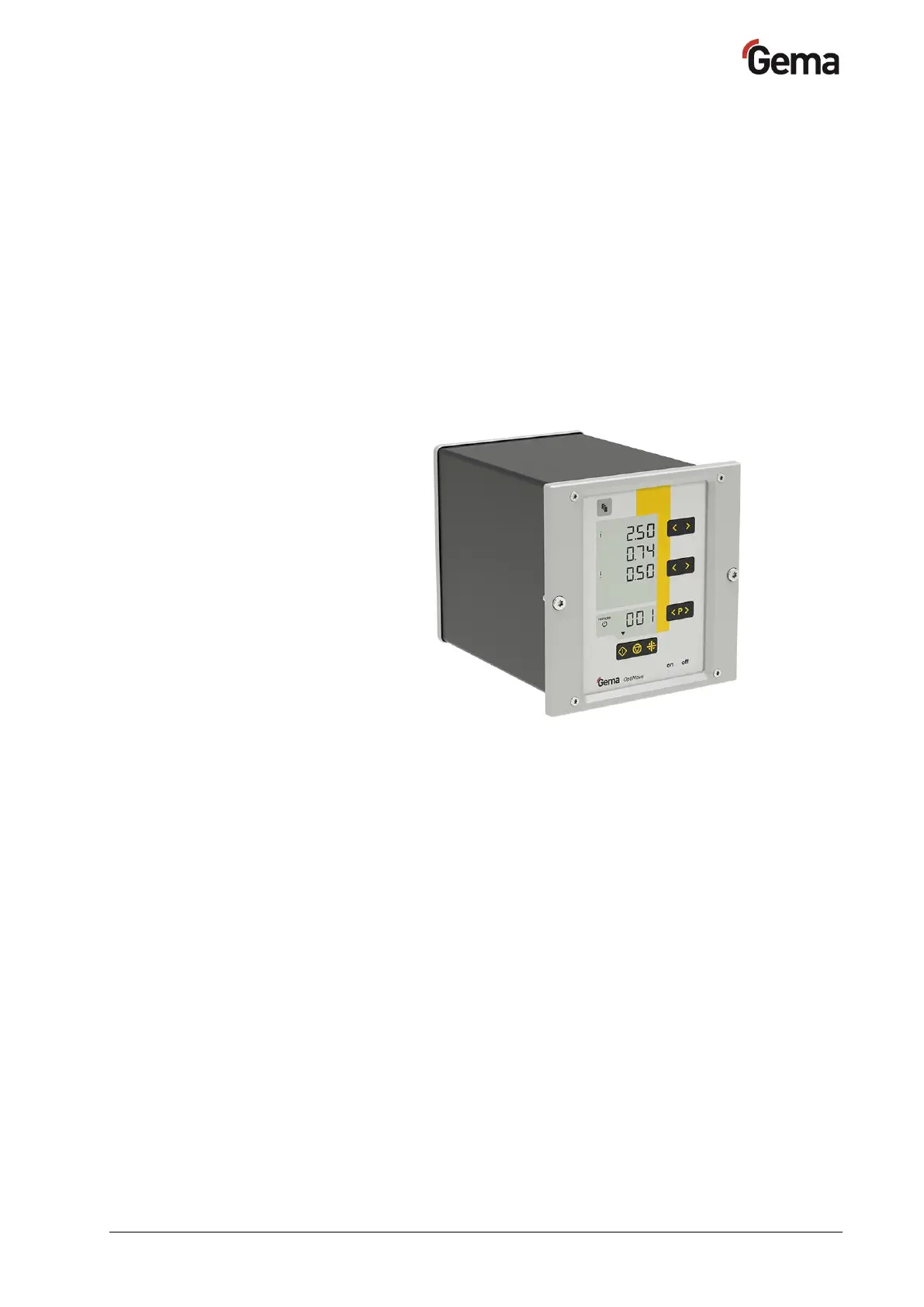

Fig.
11
: OptiMove CR09 axis control unit
The axis control unit permits the selection and the start/stop of the travel
programs by the operator on the panel.
In addition, the operator has the possibility to:
– create up to 255 programs
– change the program number
– directly modify the running program
– acknowledge the error message
– input the system parameters
– etc.
For further information, see the corresponding operating manual!
