Gema ZA08 - Gun Holder for 5-8 Guns

Rev. 01 11/22
ZA08 Spare parts list
•
63

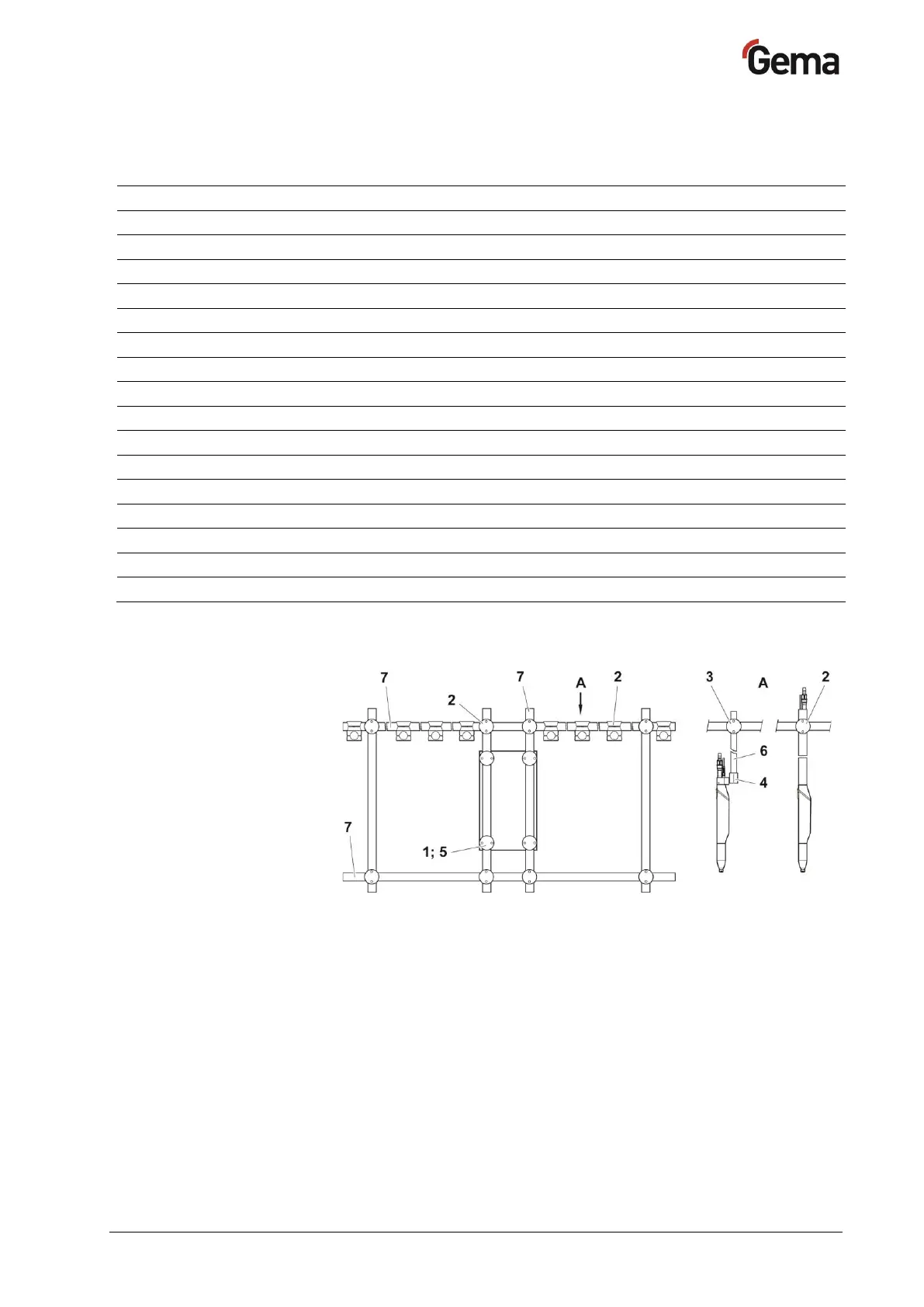

Gun holder for 5-8 guns
1
Clamp element-half (order in pairs)
363 987
2
Cross clamping element – Ø 40/40 mm
363 910
3
Cross clamping element – Ø 40/30 mm
363 936
Cross clamping element – Ø 30/30 mm
363 952
4
see "Gun fixtures and collision protection"
5
Cylinder Allen screw – M8x50 mm
235 113
6
Tube – Ø 30x600 mm
337 528
Tube – Ø 30x800 mm
337 536
Tube – Ø 30x1000 mm
337 544
Tube – Ø 30 mm
103 306*
6.1
Tube plug – Ø 30 mm, for pos. 6
236 373
7
Tube – Ø 40x600 mm
337 552
Tube – Ø 40x1000 mm
337 560
Tube – Ø 40x1500 mm
337 579
Tube – Ø 40x2000 mm
337 587
Tube – Ø 40 mm
103 314*
7.1
Tube plug – Ø 40 mm, for pos. 7
236 381
* Please indicate length
Fig.
27
: Gun holder for 5-8 guns
