4 Mechanical Dimensions and Mounting
4.1 Mechanical Dimensions of ALAS5
Figure 14 shows a 3D view
1
of ALAS5 and provides an overview of the board's mechanical di-
mensions
2
. For further details see Figure 15.
Length: 40mm
Width: 36mm
Height: 3mm

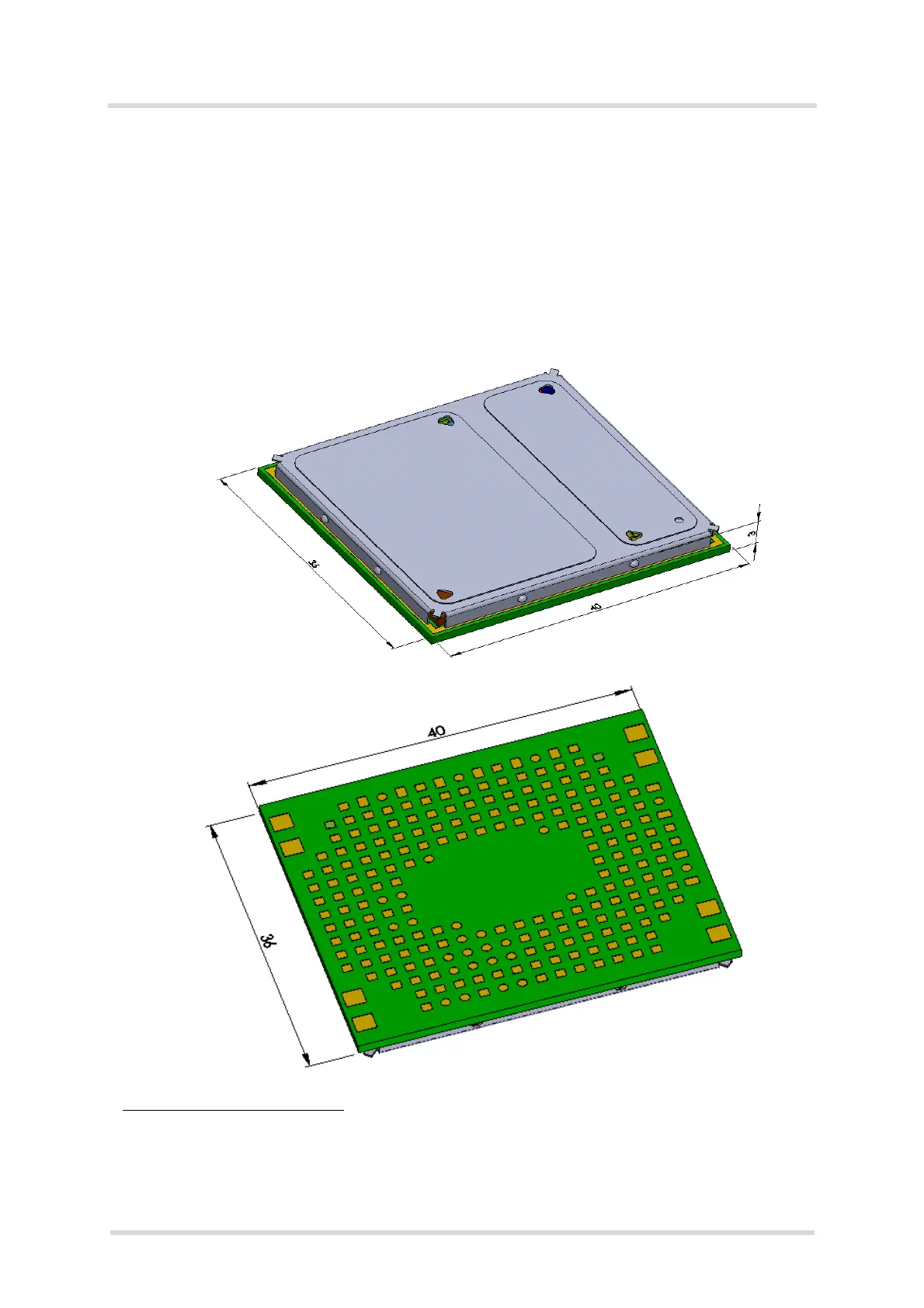

Figure 14: ALAS5 – top and bottom view
1. The coloring of the 3D view does not reflect the module’s real color.
2. Note: The holes in the shielding (top view) are significantly smaller than the radiated wavelength from
the module. Gemalto guarantees that there will be no emissions outside the limits from these. The RF
circuitry of the module is fully shielded.
