5.3 Reference Equipment for Type Approval
The Gemalto M2M general reference setup submitted to type approve ALAS5 is shown in the
figure below: Figure 16 illustrates the setup for general tests and evaluation purposes. The
evaluation module can be plugged directly onto the so-called “Audio(-Ethernet) Adapter”. The
GSM/UMTS/LTE as well as the GNSS test equipment is connected via antennas at the SMA
connectors on the evaluation module
1
. The PC is connected via USB interface on the evalua-
tion module, and the audio test equipment via audio jack on the Audio(-Ethernet) Adapter.

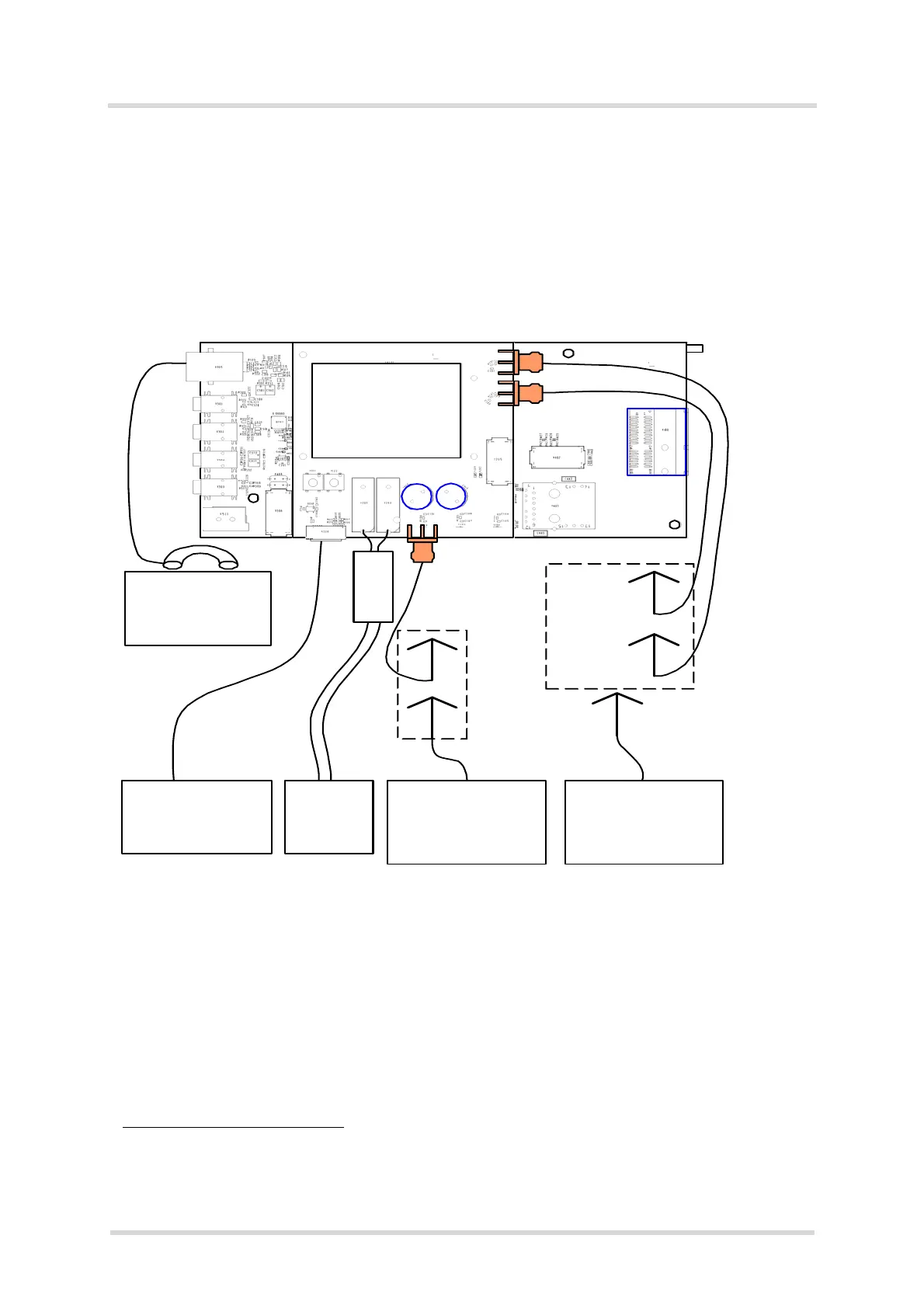

Figure 16: Reference equipment for type approval
Please note that for EMC and RF performance tests, slightly different reference equipment con-
figurations are used. If necessary, please contact Gemalto for further details.
1. The following antennas were used with the approval reference equipment:
- RF antennas: LPBEM-7-27 (for details see www.panorama-antennas.com)
- GNSS antenna: AA.162.301111 (for details see www.taoglas.com)
ALAS5
GNSS
Teste quipm e nt
GSM/ WCDMA/LT E
Teste quipm e nt
Audio
Teste quipm e nt
PC
Testequipm ent
4.0V
Power
Supply
ANT_M AIN
ANT_DRX_MIMO
G
N
S
S
A
u
d
i
o
U
S
B
2
.
0
/
3
.
0
Capacitor
Bank
