3 Interface Description
3.1 Overview
Java Terminal provide the following interfaces for power supply, antenna, SIM card and data
transfer:

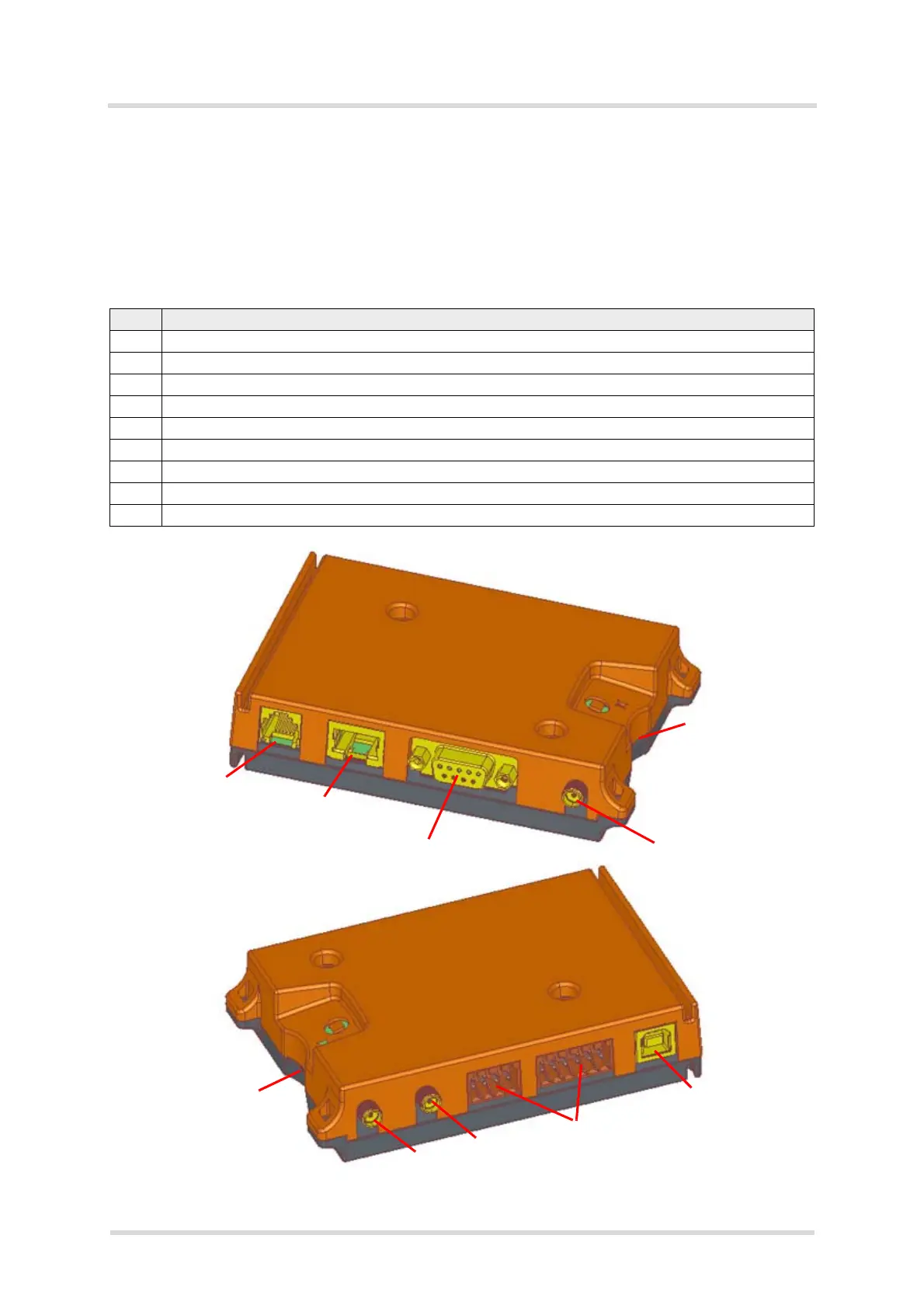

Figure 2: Java Terminal 3D view
Table 10: Java Terminal‘ interfaces
No. Description
1 6-pin Western connector (female) for power supply, ignition, power down signal
2 8-pin (female) RJ-45 Ethernet connector (PLS62T-W LAN only)
3 9-pin (female) D-sub connector (RS-232 interface)
4 SMA connector (female) for RF antenna
5 SIM card reader
6 SMA connector (female) for Rx diversity antenna
7 SMA connector (female) for GPS antennas (for future use, currently not available)
8 12-pin and 8-pin GPIO connectors (male)
9 4-pin (female) USB-B connector (PLS62T-W USB only)
4
3
1
9
5
5
2
6
7
8
