Cinterion
®
Java Terminal Hardware Interface Description
5 Mechanics, Mounting and Packaging
57
PLS62T-W_HID_v01 2018-06-20
Confidential / Prelimenary
Page 53 of 91
5 Mechanics, Mounting and Packaging
5.1 Mechanical Dimensions
Figure 13 shows a 3D view of the Java Terminal and provides an overview of the mechanical
dimensions of the board. For further details see Figure 14 and Figure 15. To allow for an easier
mechanical implementation into an external application 3D STP data for the Java Terminals is
attached to this PDF. Please open the Attachments navigation panel to view and save this in-
formation.

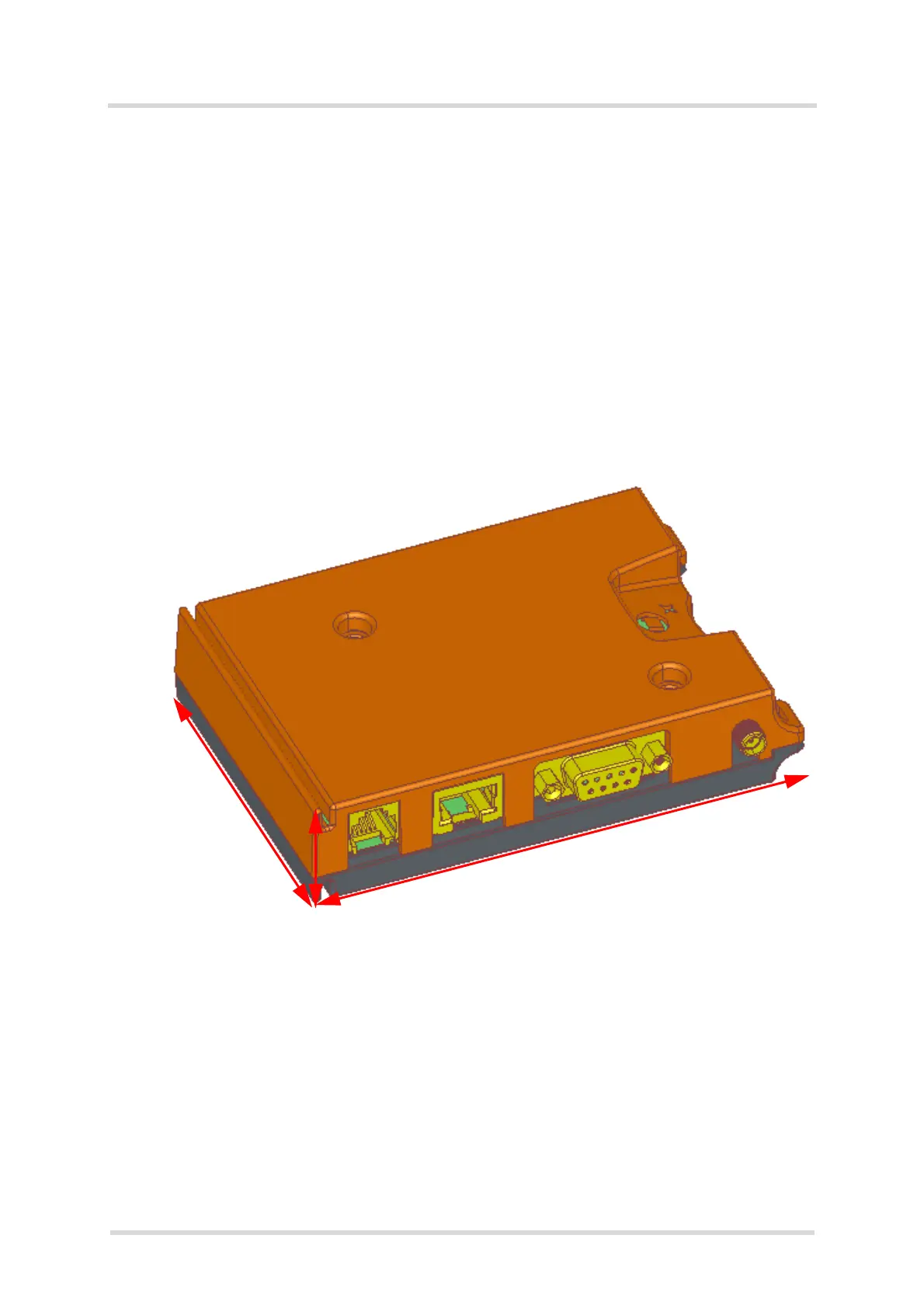

Figure 13: Java Terminal 3D overview
Length: 113.5mm (including fixtures for cable straps)
Width: 75mm (excluding antenna and serial interface connectors)
Height: 25.5mm
Weight: 120g
113.5mm
75mm
25.5mm
