Cinterion
®
Java Terminal Hardware Interface Description
5.2 Mounting the Java Terminal
57
PLS62T-W_HID_v01 2018-06-20
Confidential / Prelimenary
Page 56 of 91
5.2 Mounting the Java Terminal
There are a number of ways to mount the Java Terminal:
• Java Terminal can be attached to a rail installation or other surface using the two provided
screw holes for screws, e.g., size M3.
• Java Terminal can be fastened to a rack or holding using the two provided fixtures for cable
straps.
• Java Terminal can be slid onto a specific DIN rail made according to DIN EN 60715 - C sec-
tion, C30 format. A catch at the terminal’s bottom side will have to be removed to slide mul-
tiple terminals onto a single rail.
• Using a BOPLA TSH 35-2 universal DIN rail holder the Java Terminal can be fitted onto
another special type of DIN rail made according to DIN EN 60715 - Top hat section, 35mm
(e.g., Wago 210-113 steel carrier rail).
The following figure shows the various possibilities provided to mount the Java Terminal.

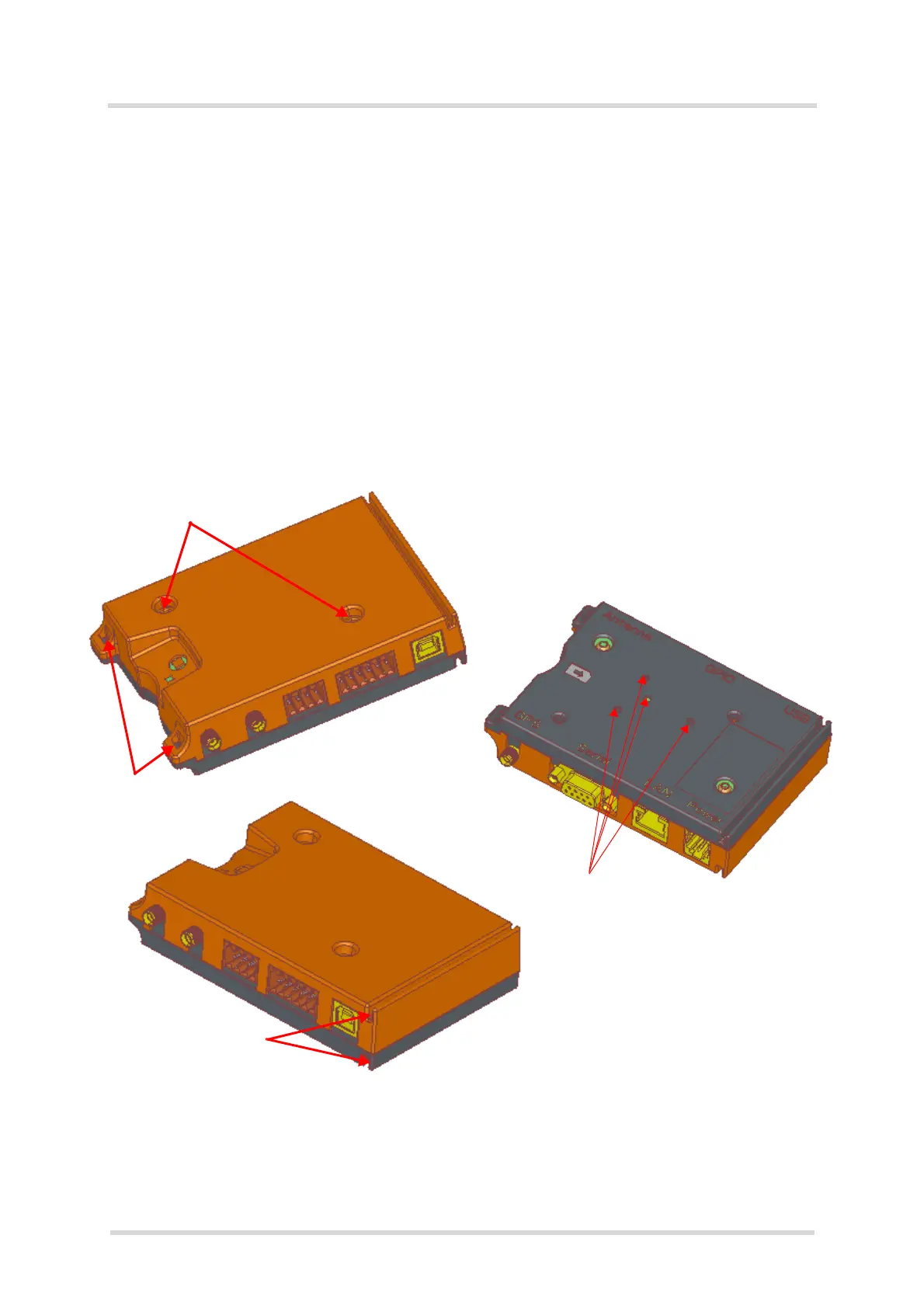

Figure 16: Mounting the Java Terminal
The various ways to mount the Java Terminal may be combined where appropriate. It is for ex-
ample possible to slide the terminal onto a DIN rail and in addition use cable straps to fasten it
to a holding.
Catch to mount
Screw holes for
Screw holes
Fixtures for
cable straps
DIN rail holder
C-rail (C30)
BOPLA TSH 35-2
