- 13 -
INSTALLATION
Irrespective of the connection type B
23
/
B
23p
/C
13
/C
33
:
To prevent any accidental leakage:
• Check that the air inlet and combus-
tion product extraction outlet tube
and bend joints are properly sealed
after mounting.
• ensure that tight sealing joints are
used.
• use the fastening collars.(optional) or
flanged components to attach the pi
-
ping securely to the wall with a least
1 collar per female adapter of each
section of piping.
• exclude imperatively any use of oil or
grease.
To make assembly easier, apply liquid
soap over 5 cm of the section of the
tube to be fitted.
The tubing connections are arranged so
that no condensate is retained and to
ensure that they are transferred up to
evacuation (descending slop of 3%
between the base of the flue and the boi
-
ler).
A support with adjustable legs can be
installed on the horizontal part at the
boiler outlet to support the conduit.
.

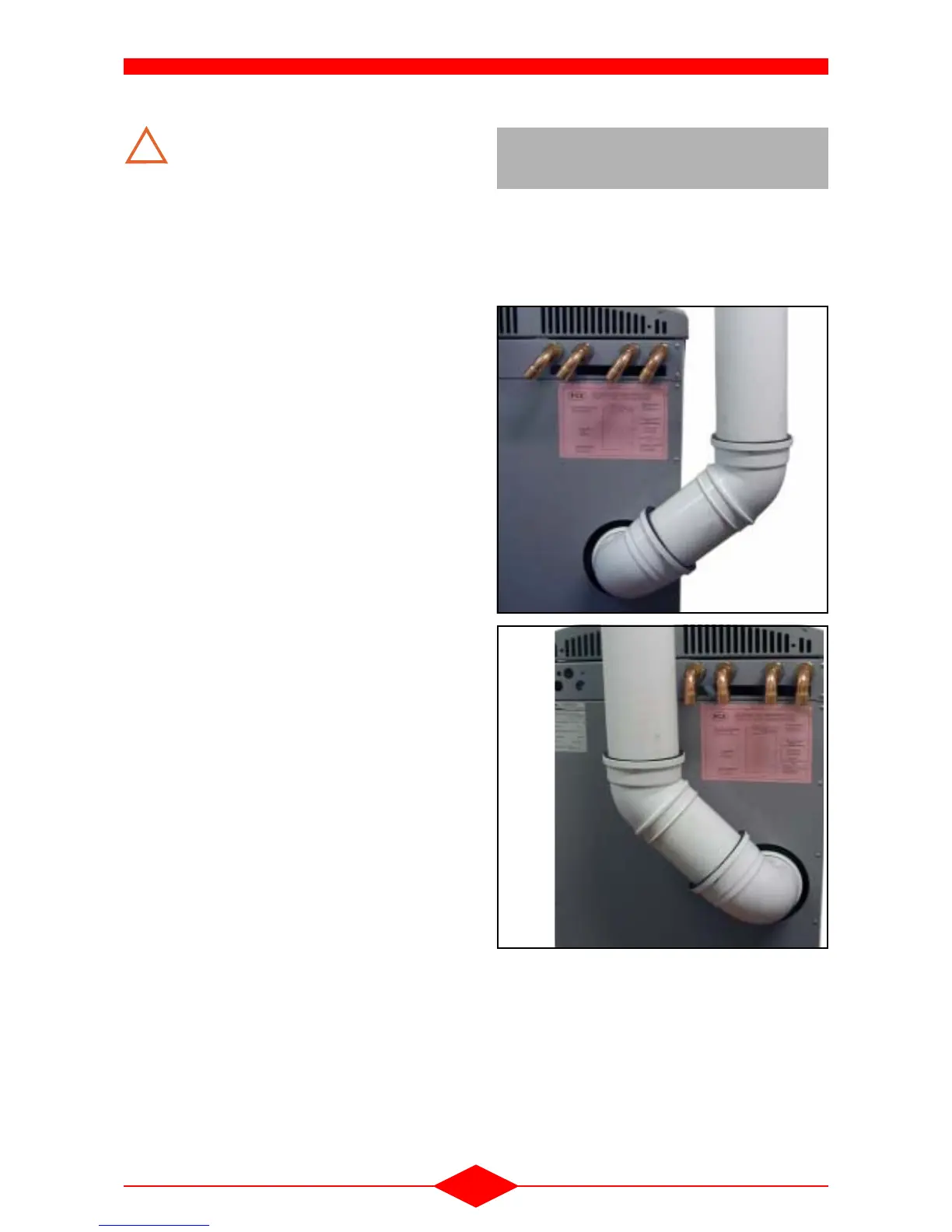

When the boiler must be placed as close as possible
to the rear wall, several configurations can be envi
-
saged depending on the hydraulic connection - refer
to some examples below.
3.1.1 - Installation example
!
3.1 - Boiler placement according to the
combustion products outlet system
and to the hydraulic connection
