geminox FCX 22 C User Manual

- 14 -
INSTALLATION
An existing chimney flue can be used
provided that it is cleaned before the lin-
ing is fitted.

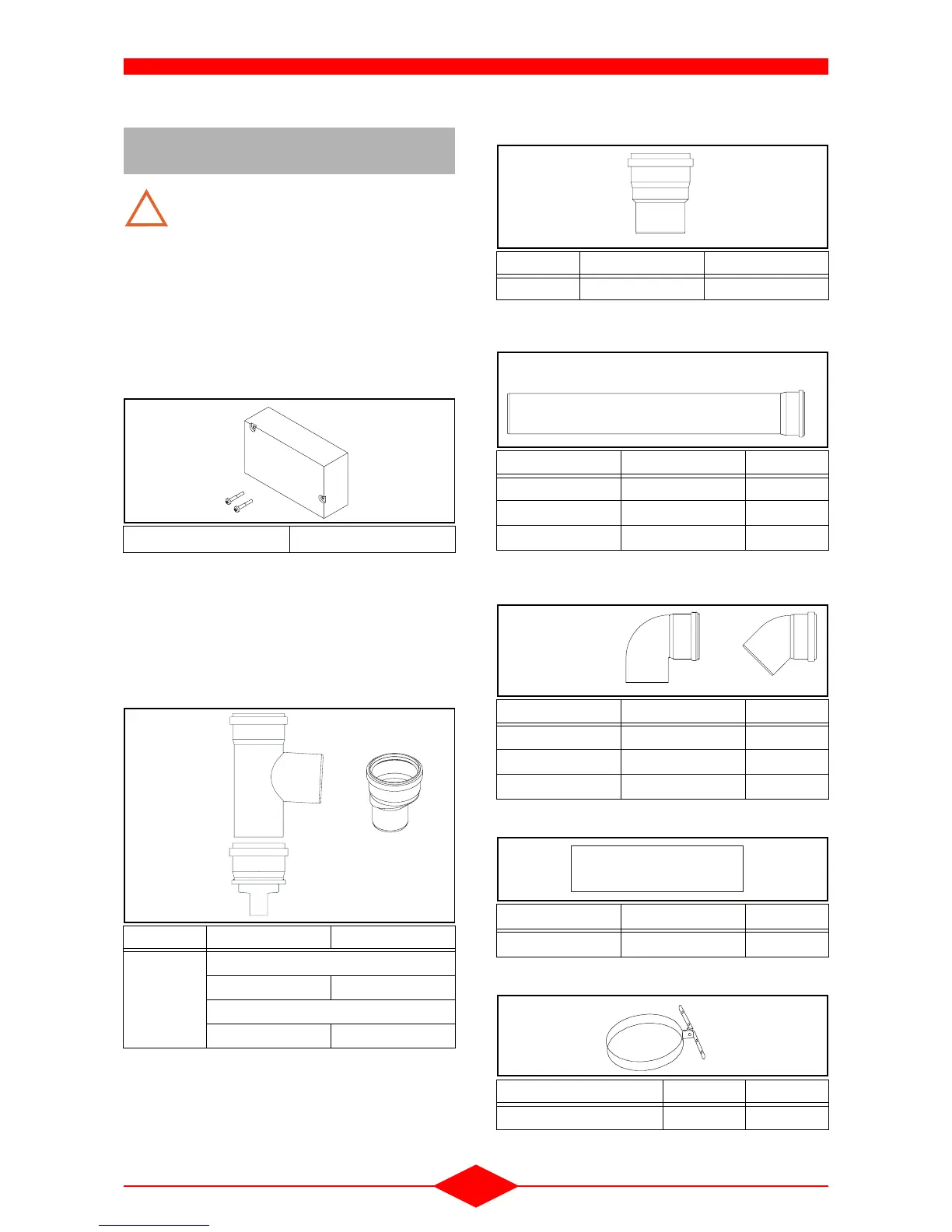

3.2.1 - Accessories
- order separately -
3.2.1.1 - Air trap kit B
23
/B
23p
The air trap kit enables transformation of the boiler
to a version with a chimney.
See kit assembly guide
3.2.1.2 - Bleed T-bracket and off-centre adapta-
tor ∅ 80/110.
Using the bleed T-bracket is mandatory in the B
23
configuration and is recommended in the B
23p
/C
33
configuration, especially with a long conduit (avoids
the return of a large volume of condensates via the
boiler).
3.2.1.3 - adaptor ∅ 110./125
3.2.1.4 - PPtl tubes
certification DE Z.7.-2-1051
3.2.1.5 - Polypropylene elbow
certification DE Z.7.-2-1051
3.2.1.6 - PVC air inlet pipe
3.2.1.7 - Fastening collar (optional)
3.2 - Evacuation by chimney flue (B
23
/B
23p
/
C
33
)
Reference V65.38982
Reference Length (mm) ∅ (mm)
V65.38981
Bleed T-bracket
380 110
off-centre reduction
155 80/110
!
FCX-05-0
Fig. 7
FCX-70-
0
Fig. 8
Reference Length (mm) ∅ (mm)
V65.38983 180 110/125
Reference Length (mm) ∅ (mm)
V72.28810 1000 80
N40.26544 1000 110
N40.33218 2000 110
Reference Type of elbow ∅ (mm)
V72.28808 90° 80
A20.26543 90° 110
N40.37320 45 110
Reference Length (mm) ∅ (mm)
V72.28812 1000 125
Reference Quantity ∅ (mm)
B00.16088 1 110
FCX-80-0
Fig. 9
FCX-06-0
Fig. 10
FCX-07-0
FCX-78-0
Fig. 11
FCX-09-0
Fig. 12
AM5-26-0
Fig. 13
