geminox FCX 22 C User Manual

- 15 -
INSTALLATION
3.2.2 - Standard natural draft configuration
(B
23
) (flue operating at negative pres-
sure)
Definition: Lining of an existing chimney flue by a
sealed STAINLESS STEEL corrugated flue of
Ø
125.
- The termination is specific to this configuration
and the outlet must be above the roof (comply
with the specification of the decree of 22 October
1969),
- Do not use the hose for a horizontal assem-
bly: condensate may be retained.
- Use the optional PP accessories (mandatory
bleed T-bracket, etc.) for the stainless steel con
-
duit connection to the boiler,
- Fit a siphon (5) with a minimum 80 mm seal be-
tween the bleed T-bracket and the waste water
pipe,
- Ventilation for the flue (rep. 8) and the heating
system
(section 2 - chapter IV - INSTALLA-
TION) must be provided.
- If the boiler is installed in premises that have me-
chanical air extraction, ensure that this does not
cause negative pressure.
- The premises must never be fitted with other ap-
pliances using natural draft to operate.
- The air is sucked in by the burner directly from the
room in which the boiler is fitted.
- The burner must be equipped with the air damper
(item no. 2) in order to prevent heat losses due to
draft.

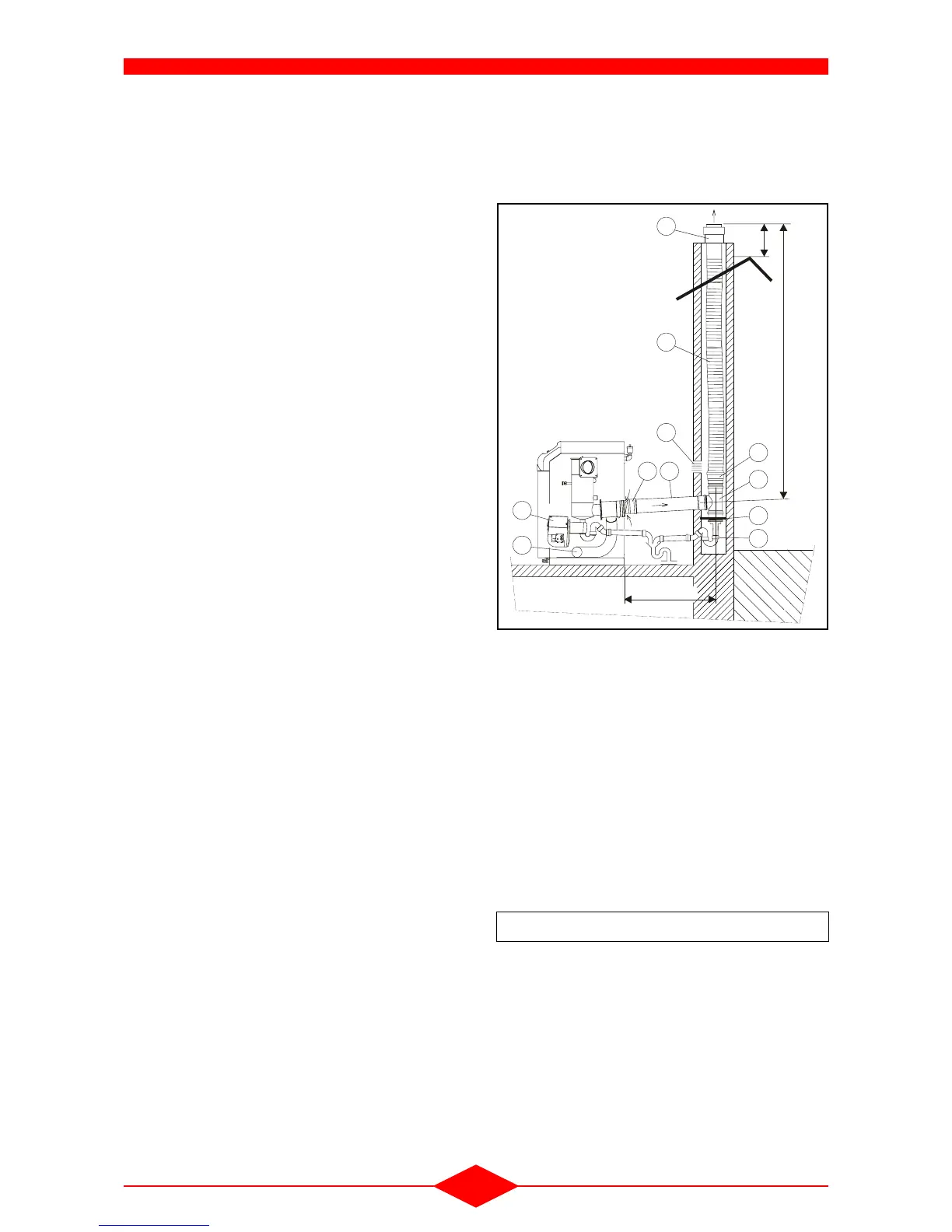

3.2.2.1 - Installation example (B
23
)
Accessories :
1) PPtl off-centre reduction ∅ 80/110 (supplied with the
bleed T-bracket),
2) Air choke (supplied with the air damper kit),
3) PPtl tube ∅ 110 L = 1 m (cut to the length required),
4) Bleed T-bracket ∅ 110 (supplied with the off-centre re-
duction),
5) Siphon,
6) STAINLESS STEEL corrugated flue of grade 904 L
∅ 125,
7) Termination (above the roof) ,
8) Lining ventilation
9) Bleed T-bracket support
10)Adaptator ∅ 110/125,
- Each 45° elbow added reduces the total length al-
lowed by 0.5 m.
L1max ≤ 20 m
9
6
4
1
3
8
21
2
FCX-10-0
L1
L2 = 1 m
maxi
0,4 m
5
7
10
Fig. 14
