geminox FCX 22 C User Manual

- 29 -
INSTALLATION

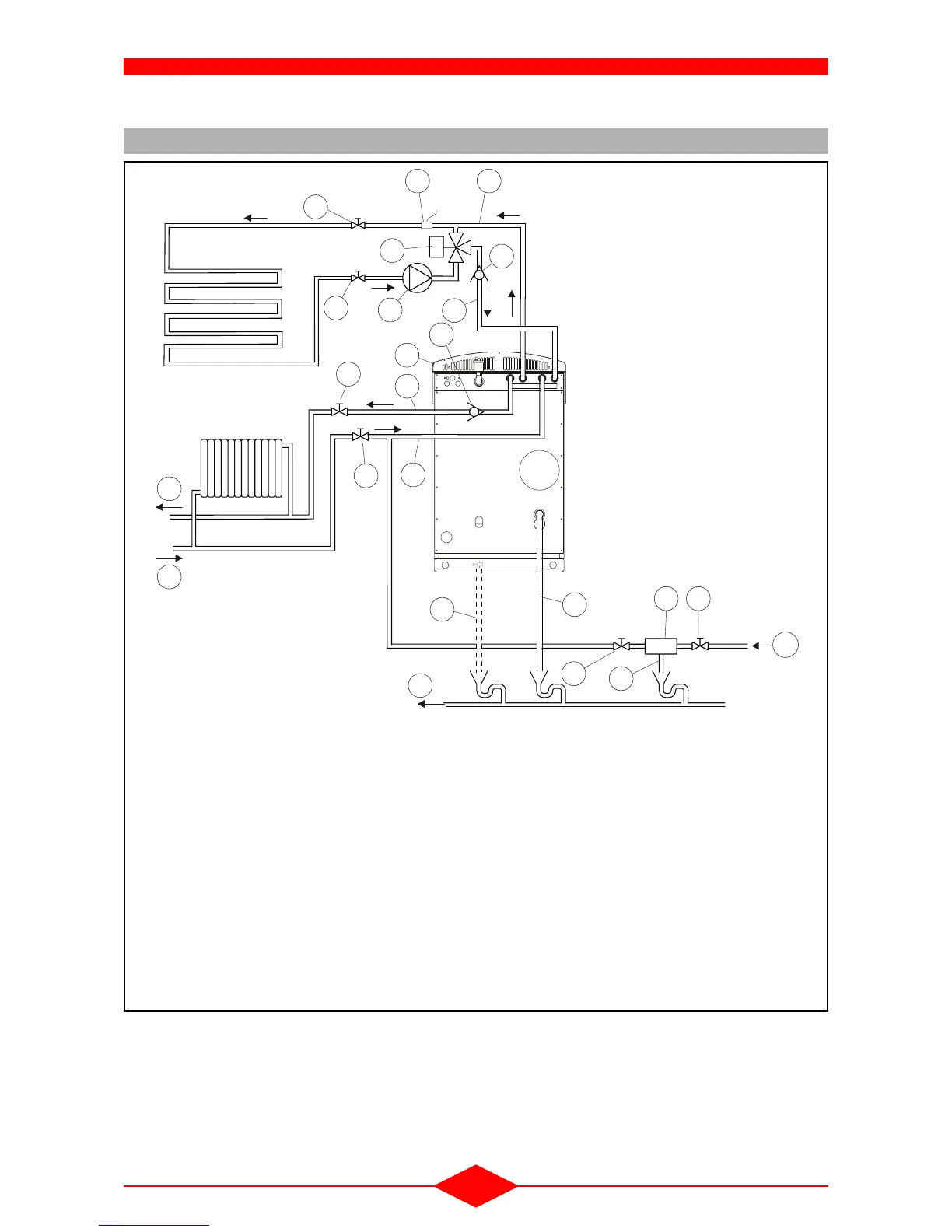

7.5 - Hydraulic connection for models FCX to a double heating circuit
3
3
2
2
7
7
9
8
16
10
6
5
11
FCX-35-3
4
1
27
28
26
29
30
31
7
7
32
Fig. 46
1) Boiler
2) 1
st
heating circuit flow
3) 1
st
heating circuit return
4) Cold water inlet valve **
5) Filling system**
6) Filling valves **
7) Heating flow/return isolating valves **
8) Boiler drain
9) Condensate drain
10)Filling system outlet
11)Sewer drain
16)Isolating valve **
26)2
nd
heating circuit outlet
27)2
nd
heating circuit return
28)Mixing valve motorised**
29)2
nd
heating circulating pump**
30)Heating flow sensor for 2
nd
heating**
31)Non-return valve of the valve/pump unit **
32)Non-return valve**
** accessories not supplied
