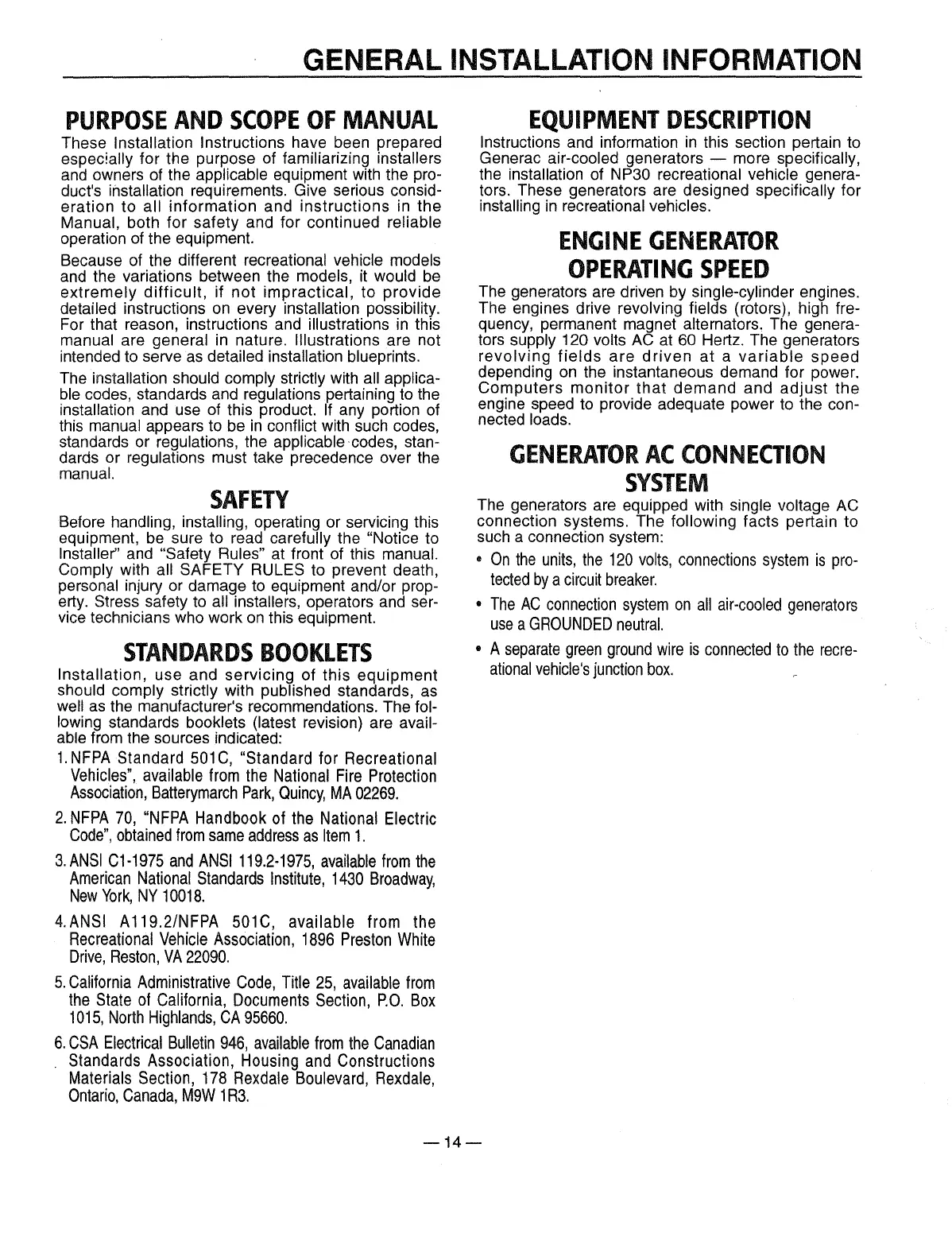

GENERAL INSTALLATION INFORMATION
PURPOSE
AND
SCOPE
OF
MANUAL
These Installation Instructions have been prepared
especially for the purpose of familiarizing installers
and owners of the applicable equipment with the pro-
duct's installation requirements. Give serious consid-
eration
to
all
information
and
instructions
in
the
Manual, both
for
safety
and
for
continued reliable
operation of the equipment.
Because of the different recreational vehicle models
and the variations between the models, it would be
extremely
difficult,
if
not
impractical,
to
provide
detailed instructions on every installation possibility.
For that reason, instructions and illustrations
in
this
manual are general in nature. Illustrations are not
intended to serve as
detailed installation blueprints.
The installation should comply strictly with all applica-
ble
codes, standards and regulations pertaining to the
installation and use of this product.
If
any portion of
this
manual appears to be
in
conflict with such codes,
standards or
regulations, the applicable codes, stan-
dards or regulations must take precedence over the
manual.
SAFETY
Before handling, installing, operating or servicing this
equipment, be sure to read carefully the "Notice to
Installer'' and "Safety Rules" at front of this manual.
Comply with all SAFETY RULES to prevent death,
personal injury or damage to equipment and/or prop-
erty. Stress safety to all installers, operators and ser-
vice technicians who work
on
this equipment.
STANDARDS
BOOKLETS
Installation,
use
and
servicing
of
this
equipment
should comply strictly with published standards, as
well as the manufacturer's recommendations. The fol-
lowing standards booklets (latest revision) are avail-
able from the sources indicated:
1.
NFPA Standard
501
C,
"Standard for Recreational
Vehicles", available
from the National Fire Protection
Association,
Batterymarch
Park,
Quincy,
MA
02269.
2.
NFPA
70,
"NFPA Handbook of the National Electric
Code",
obtained
from
same
address
as
Item
1.
3.
ANSI
C1-1975
and
ANSI
119.2-1975,
available
from
the
American
National Standards Institute,
1430
Broadway,
New
York,
NY
10018.
4.
ANSI A 119.2/NFPA
501
C,
available from the
Recreational Vehicle Association,
1896
Preston White
Drive,
Reston,
VA
22090.
5.
California Administrative
Code,
Title
25,
available
from
the State
of
California, Documents Section,
P.O.
Box
1015,
North
Highlands,
CA
95660.
6.
CSA
Electrical
Bulletin
946,
available
from
the
Canadian
Standards Association, Housing and Constructions
Materials Section, 178 Rexdale Boulevard, Rexdale,
Ontario,
Canada,
M9W
1
R3.
EQUIPMENT
DESCRIPTION
Instructions and information
in
this section pertain to
Generac
air-cooled generators - more specifically,
the installation of NP30 recreational vehicle genera-
tors. These generators are designed specifically for
installing
in
recreational vehicles.
ENGINE
GENERATOR
OPERATING
SPEED
The generators are driven by single-cylinder engines.
The engines drive revolving fields (rotors), high fre-
quency, permanent magnet alternators. The genera-
tors supply 120 volts AC at 60 Hertz. The generators
revolving
fields
are
driven
at
a
variable
speed
depending on the instantaneous demand for power.
Computers
monitor
that
demand
and
adjust
the
engine speed to provide adequate power to the con-
nected loads.
GENERATOR
AC
CONNECTION
SYSTEM
The generators are equipped with single voltage AC
connection systems.
The
following facts pertain to
such a connection system:
•
On
the
units,
the
120
volts,
connections
system
is
pro-
tected
by
a circuit
breaker.
•
The
AC
connection
system
on
all
air-cooled generators
use
a
GROUNDED
neutral.
• A
separate
green
ground
wire
is
connected
to
the
recre-
ational
vehicle's
junction
box.
-14-
