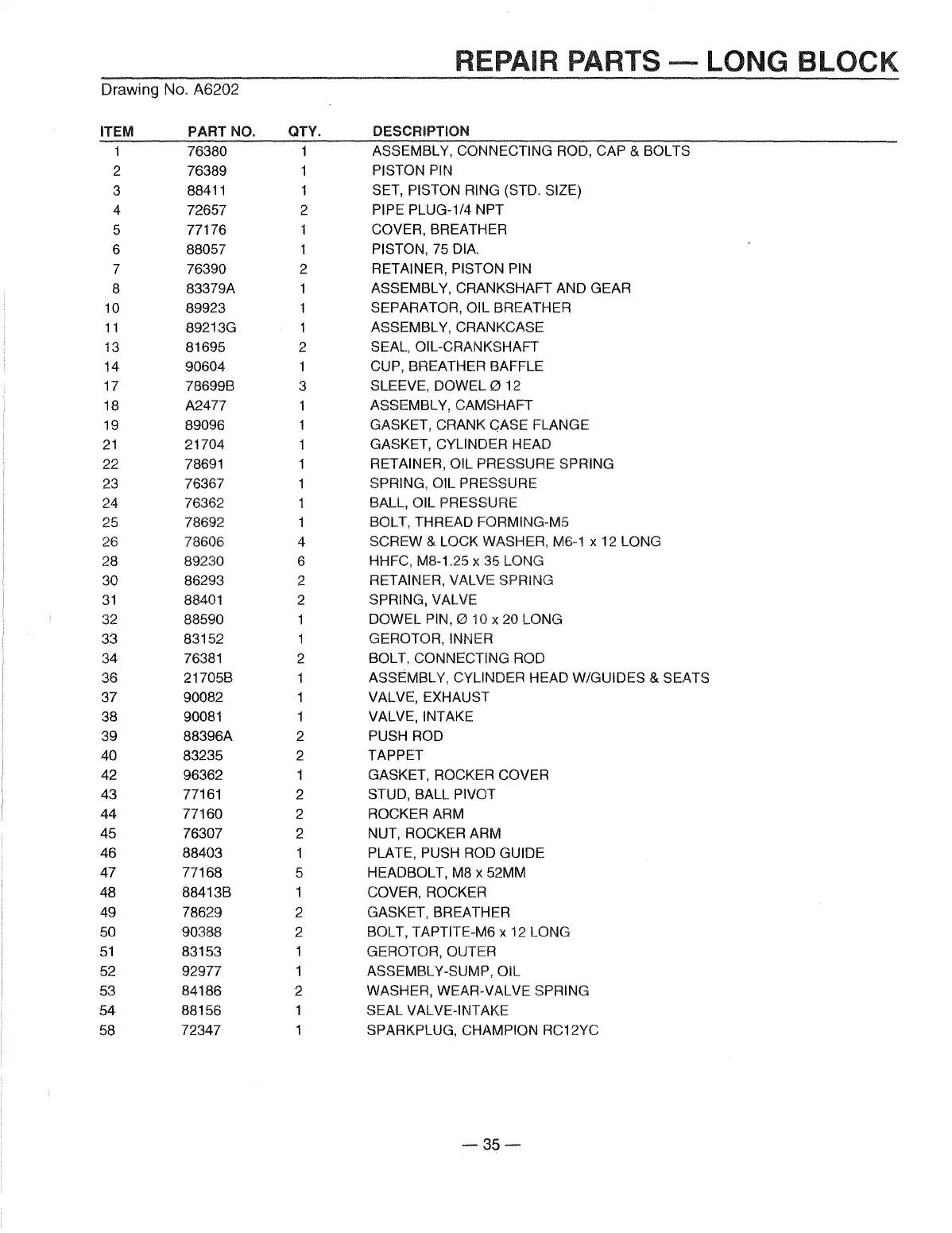

REPAIR PARTS - LONG
BLOCK
Drawing
No.
A6202
ITEM
PART NO.
QTY. DESCRIPTION
76380
ASSEMBLY, CONNECTING ROD, CAP
& BOLTS
2 76389
PISTON
PIN
3
88411 SET,
PISTON RING (STD. SIZE)
4 72657 2
PIPE PLUG-1/4 NPT
5
77176
COVER, BREATHER
6
88057 PISTON,
75
DIA.
7 76390 2
RETAINER, PISTON
PIN
8
83379A
ASSEMBLY, CRANKSHAFT AND GEAR
10
89923
SEPARATOR, OIL BREATHER
11
89213G
ASSEMBLY, CRANKCASE
13
81695
2
SEAL,
OIL-CRANKSHAFT
14
90604 1 CUP, BREATHER BAFFLE
17
78699B
3
SLEEVE,
DOWEL 0 12
18
A2477 ASSEMBLY, CAMSHAFT
19
89096
GASKET, CRANK CASE FLANGE
21
21704 GASKET, CYLINDER HEAD
22 78691
RETAINER, OIL PRESSURE SPRING
23 76367
SPRING, OIL PRESSURE
24
76362 BALL,
OIL PRESSURE
25
78692
BOLT, THREAD FORMING-M5
26 78606
4
SCREW
& LOCK WASHER,
M6-1
x 12 LONG
28 89230 6
HHFC, M8-1.25 x 35
LONG
30
86293
2
RETAINER, VALVE SPRING
31
88401
2
SPRING, VALVE
32
88590
DOWEL PIN,
0 i 0 x 20 LONG
33
83152
GEROTOR, INNER
34
76381 2
BOLT. CONNECTING ROD
36
21705B ASSEMBLY, CYLINDER HEAD W/GUIDES & SEATS
37
90082 VALVE, EXHAUST
38
90081 1 VALVE, INTAKE
39 88396A
2
PUSH ROD
40
83235 2
TAPPET
42 96362 GASKET, ROCKER COVER
43
77161
2
STUD, BALL
PIVOT
44
77160
2
ROCKER ARM
45
76307
2
NUT,
ROCKER ARM
46
88403
PLATE, PUSH ROD GUIDE
47 77168
5
HEADBOL
T,
M8
x 52MM
48 88413B
1 COVER, ROCKER
49 78629
2
GASKET, BREATHER
50 90388
2
BOLT, TAPTITE-M6 x 12 LONG
51
83153 GEROTOR,OUTER
52
92977 1 ASSEMBLY-SUMP, OIL
53 84186
2
WASHER, WEAR-VALVE SPRING
54
88156 SEAL
VALVE-INTAKE
58
72347
SPARKPLUG, CHAMPION RC12YC
