Generac Power Systems Protector Series Installation Guidelines

Propane
Length
Diameter
Height
Gaseous Fuel Systems
Installation Guidelines For Spark-Ignited Stationary Generators 25

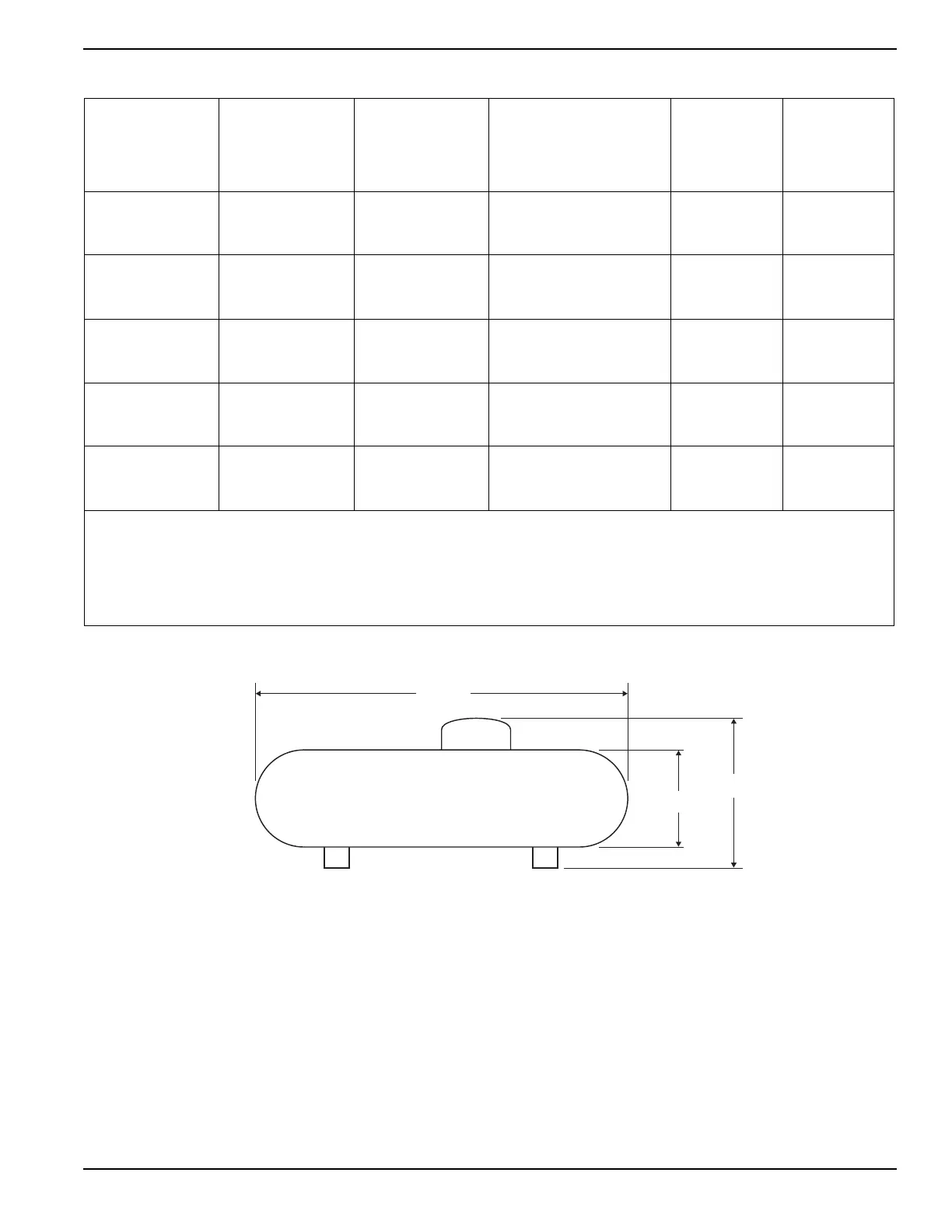

Figure 4-3. Typical Propane Tank Dimensions
Table 4-3. Vaporization Rates
Total Tank
Capacity
gal (L)
See Note 1
Available Tank
Capacity
gal (L)
See Note 2
Minimum
Operating
Temperature
°F (°C)
Tank Vaporization
Capacity
BTU/hr (MJ/hr)
See Note 3
Length
in (cm)
Diameter
in (cm)
250 (946.4) 150 (567.8) 40 (4.4)
20 (-6.6)
0 (-17.8)
507,600 (535.5)
338,400 (357)
169,200 (178.5)
94 (238.8) 30 (76.2)
325 (1,230.3) 195 (768.2) 40 (4.4)
20 (-6.6)
0 (-17.8)
642,600 (683.3)
428,400 (452)
214,200 (226)
119 (302.3) 30 (76.2)
500 (1,892.7) 300 (1,135.6) 40 (4.4)
20 (-6.6)
0 (-17.8)
792,540 (836.2)
528,360 (557.4)
264,180 (278.7)
119 (302.3) 37 (93.9)
850 (3,217.6) 510 (1,930.6) 40 (4.4)
20 (-6.6)
0 (-17.8)
1,217,700 (1,284.7)
811,800 (856.5)
405,900 (428.2)
165 (419.1) 41 (104.1)
1,000 (3,785.4) 600 (2,271.2) 40 (4.4)
20 (-6.6)
0 (-17.8)
1,416,960 (1,495)
944,640 (996.6)
472,620 (498.6)
192 (487.7) 41 (104.1)
Note 1: Minimum tank size should be sized large enough to provide correct fuel capacity to generator at full load. Contact a LP
gas provider for correct tank sizing.
Note 2: Available tank capacity is approximately 60% of total fill capacity. This is based on a maximum fill level of 80% and a min-
imum operating level of 20% (80% - 20% = 60%).
Note 3: Vaporization capacity shown is based on a tank level of 20%. This represents the smallest allowable wetted surface area
of the liquid in the tank. As liquid propane level goes up, wetted surface area and vaporization rate increases.
Propane conversion figures:
• 36.38 ft
3
= 90,500 BTU = 1 gal • 1 lb = 21,500 BTU = 8.56 ft
3
• 2500 BTU = 1 ft
3
• 0.001 m
3
= 21 MJ = 1 L • 1 kg = 10.3 MJ = 0.11 m
3
• 1.13 MJ = 1 m
3
