Generac Power Systems Protector Series Installation Guidelines

Electrical System
32 Installation Guidelines For Spark-Ignited Stationary Generators
Two-Wire Start
To convert control panel to two-wire start transfer switch
mode of operation, see dealer for panel conversion and
connection of terminals 178 and 183 in TB3. Use a 120
volt generator protected circuit from the panel board to
power the battery charger circuit (dedicated 15/20 amp
circuit).
The generator controller will have to be programmed for
two-w
ire start by an IASD.
NOTE:
FOR FIELD WIRING TO CUSTOMER CONNECTIONS
(TERMINAL BLOCKS)
WIRE SIZE 18-12 GAUGE
COMPONENTS LOCATED IN CUSTOMER CONNECTION BOX
LOW VOLTAGE CONNECTIONS
COMPONENTS LOCATED IN CUSTOMER CONNECTION BOX
HIGH VOLTAGE CONNECTIONS
NOTE: ALL WIRES ON THIS
PAGE ARE 600V RATED
TRANSFER RELAY
TRANSFER RELAY COIL
CUSTOMER CONNECTIONS
2 23
E-STOP
178
183
4
3
1941
178
23
183
194
J1-14
J1-7
J1-5
J1-6
CUSTOMER CONNECTIONS
ES
COMMON ALARM
209/210
J1-8
CAR
J1-15
FUSED 120VAC
SOURCE FOR
BATTERY CHARGER
UTILITY FROM
TRANSFER SWITCH
000378
UTILITY FROM
TRANSFER SWITCH
3 T1
NEU4
NEU
N2
N1
N2
2
T1
1
N1
3 N1
N24
N2
N1
2
1
60HZ UNITS 50HZ (M-VOLTAGE, 110/220VAC & R-VOLTAGE, 231/400VAC)
BCH2-2
J4-6
BCH2-1
J4-3
FUSED 220VAC(M) OR
200VAC(R) SOURCE FOR
BATTERY CHARGER
(PRE-CONNECTED WITH
JUMPERS AS SHOWN)
Y
TB3
X
60HZ/50HZ
REMOTE START OPTION
X
TB2
Y
NEU
N2
T1
N1
BCH2-2
J4-6
BCH2-1
J4-3
X
TB2
Y
240VAC MAX
(BLACK)
(WHITE)
J2-8
COP1-7
J1-3
J2-4
SPLICE E
(ORANGE)
J1-9
395/396
56/56A
14/14A

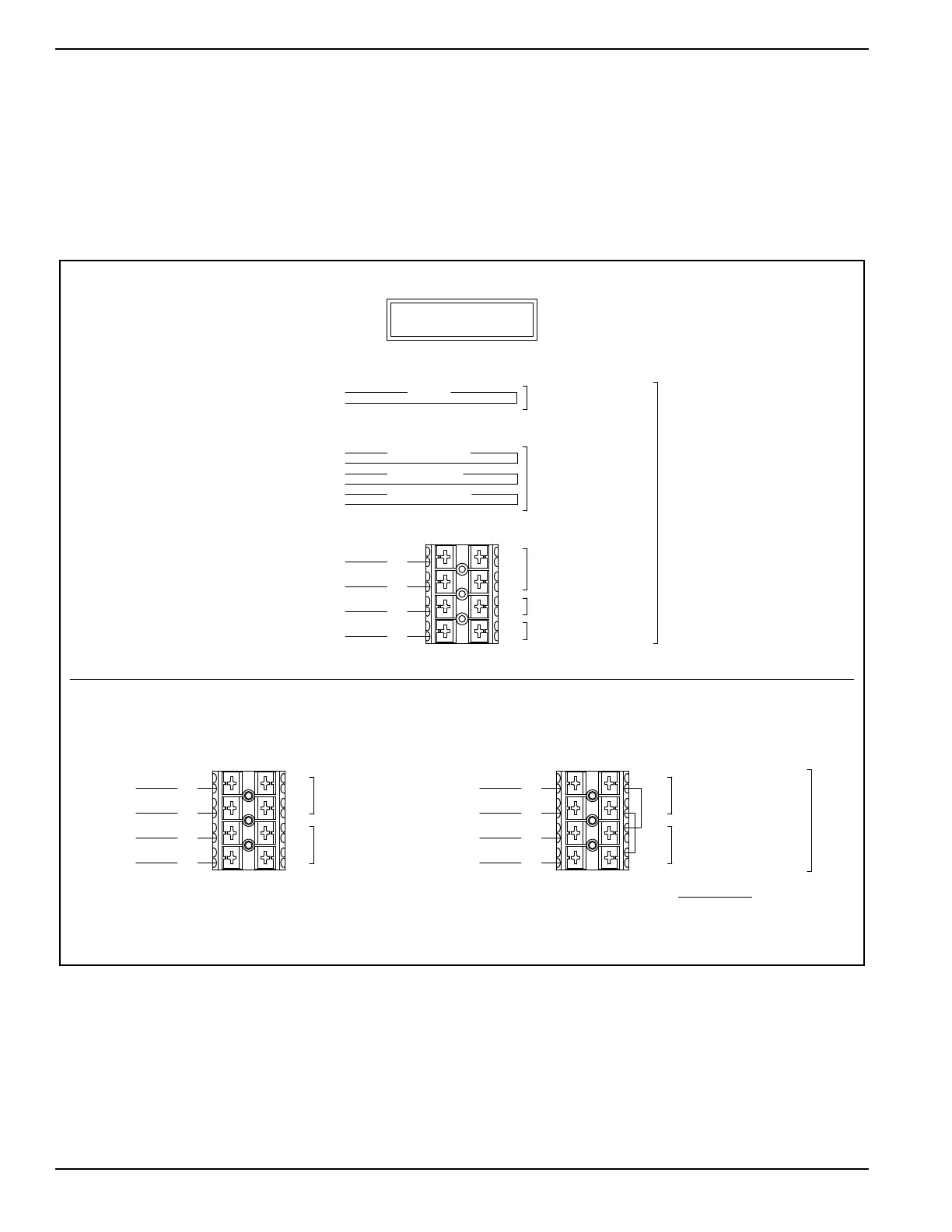

Figure 5-5. Typical Control Wiring Schematic
