Generac Power Systems Protector Series Installation Guidelines

56 Installation Guidelines For Spark-Ignited Stationary Generators
Installation Drawings

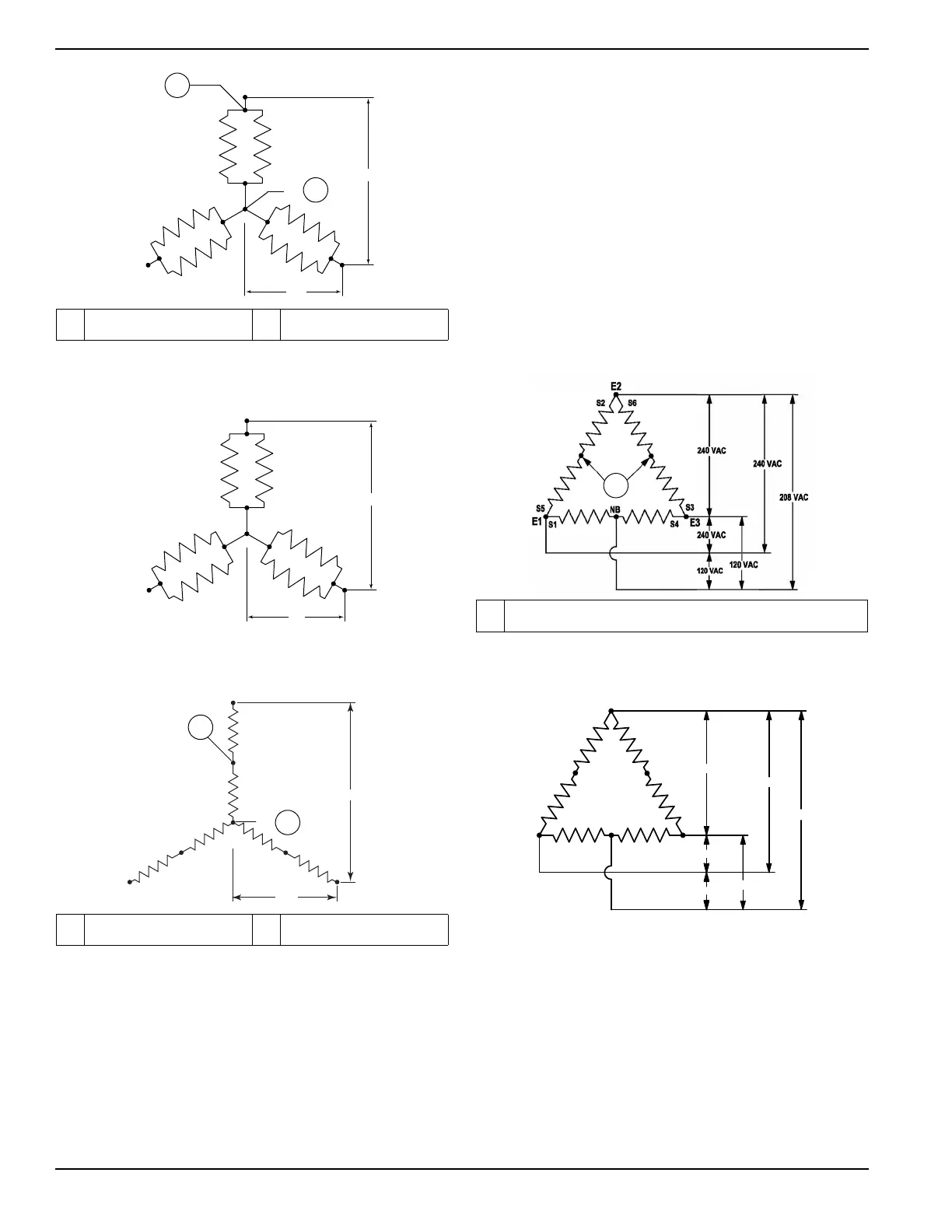

Figure 10-4. Stator Power Winding Connections—
Three-Phase, 120/208V (6 Lead)
Figure 10-5. Stator Power Winding Connections—
Three-Phase, 120/208V (12 Lead)
Figure 10-6. Stator Power Winding Connections—
Three-Phase, 346/600V (6 Lead)
Three-Phase Alternators (“Delta” Configuration)
The Stationary Emergency Generator is designed to sup-
ply three-phase electrical loads. Electric power is pro-
duced in the alternator power windings. These windings
were factory-connected to the main circuit breaker with a
“Delta” configuration as shown in
Figure 10-7 and Fig-
ure 10-8.
Rated voltage between circuit breaker terminals E1–E2,
E1–E3 and E2–E3 is 240V.
Rated voltage between E2 and the neutral point 00 is
208V. The rated voltage E1–00 and E3–00 is approxi
-
mately 120V.
NOTE: Voltage measured from E2 to 00 can greatly vary
when single-phase load is placed on alternator.
Figure 10-7. Stator Power Winding Connections—
Three-Phase, 120/240V (6 Lead)
Figure 10-8. Stator Power Winding Connections—
Three-Phase, 120/240V (12 Lead)
A Neutral B Internal connections
A Neutral B Internal connections
E3 E2
00
E1
L-L
L-N
S1
S1
S4
S4
S6
S6
S3
S3
S5
S5
S2
S2
006480
B
A
E3
E2
E1
L-L
L-N
S7
S1
S10
S4
S12
S6
S9
S3
S5
S11
S2
S8
006481
E1
S1
S6
S5
S4
S2
E2
S3
E3
L - N
L - L
00
006482
B
A
B Internal connections
006483
B
240 VAC
120 VAC
120 VAC
240 VAC
240 VAC
S2 S12
S11
S1
NB
S10
S3
E1
E3
E2
S5
S8
S9
S6
208 VAC
006484
