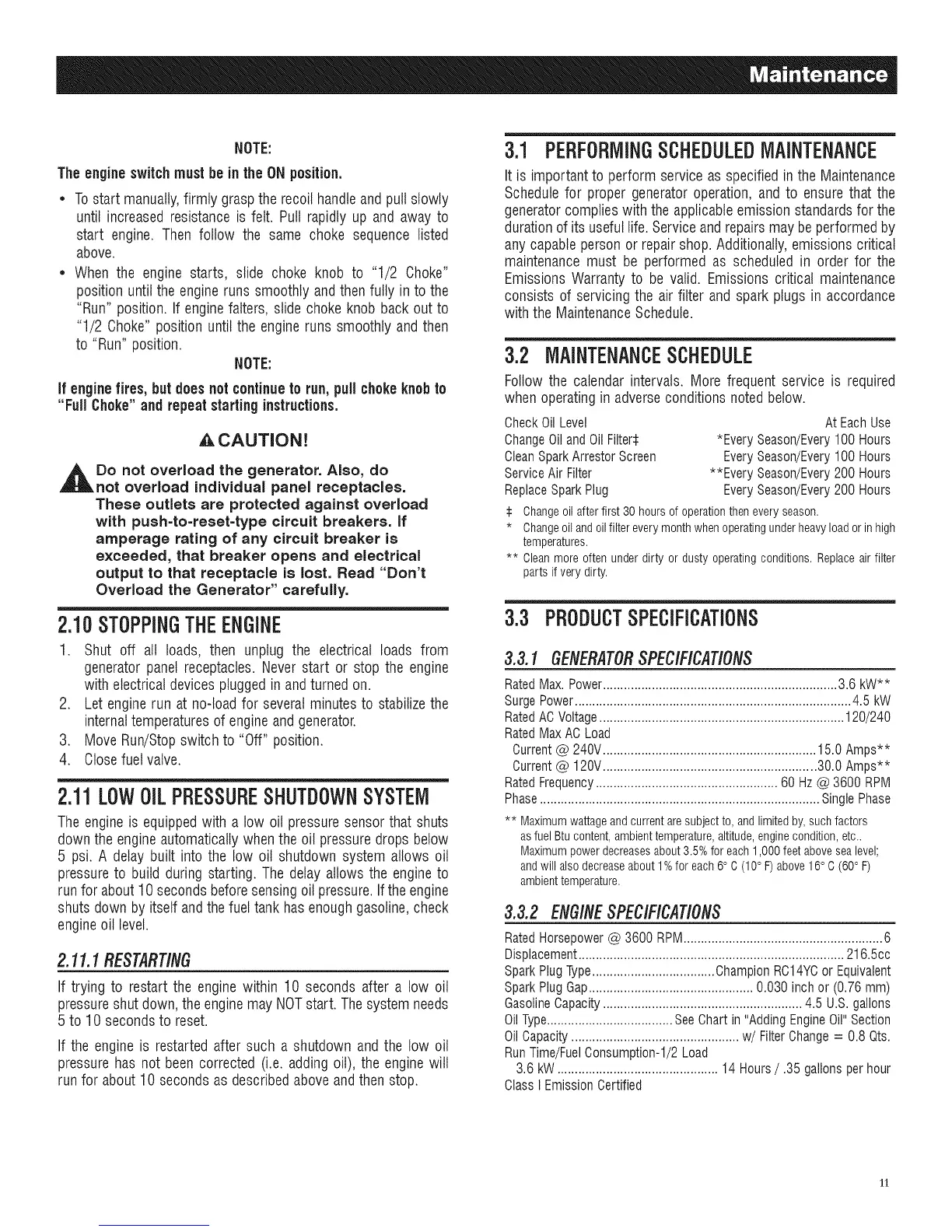

NOTE:
The engine switchmustbe in the ON position.
* Tostart manually,firmly grasp the recoil handleand pull slowly
until increasedresistance is felt. Pull rapidly up and away to
start engine. Then follow the same choke sequence listed
above.
* When the engine starts, slide choke knob to "1/2 Choke"
position untilthe engine runssmoothly andthen fully in to the
"Run" position. If enginefalters, slide chokeknob backout to
"1/2 Choke" position until the engine runs smoothly and then
to "Run" position.
NOTE:
If engine fires,but doesnot continueto run,pull chokeknob to
"Full Choke" and repeatstartinginstructions.
A, CAUTION!
,_Do not overload the generator. Also, do
not overload individual panel receptacles.
These outlets are protected against overload
with push=to=reset=type circuit breakers, if
amperage rating of any circuit breaker is
exceeded, that breaker opens and electrical
output to that receptacle is lost. Read "Don't
Overload the Generator" carefully.
2.10STOPPINGTHEENGINE
1. Shut off all loads, then unplug the electrical loads from
generatorpanel receptacles.Never start or stop the engine
with electricaldevicespluggedin andturned on.
2. Let enginerun at no-load for severalminutes to stabilizethe
internaltemperaturesof engineand generator.
3. Move Run/Stopswitch to "Off" position.
4. Closefuelvalve.
2.11LOW01LPRESSURESHUTDOWNSYSTEM
Theengineis equippedwith a low oil pressuresensor that shuts
downthe engineautomaticallywhentheoil pressuredrops below
5 psi. A delay built into the low oil shutdown system allows oil
pressureto build during starting. The delay allows the engineto
run for about10 secondsbeforesensingoil pressure.If theengine
shutsdown by itselfandthe fueltank hasenoughgasoline,check
engineoil level.
2.1I.IRESTARTING
If trying to restart the engine within 10 seconds after a low oil
pressureshut down, theenginemay NOTstart. Thesystem needs
5 to 10 secondsto reset.
If the engine is restartedafter such a shutdown and the low oil
pressure has not been corrected (i.e. adding oil), the enginewill
run for about10 seconds as describedabove andthen stop.
3.1 PEBFOBIVlINGSCHEDULEDMAINTENANCE
It is importantto perform service as specified in the Maintenance
Schedulefor proper generatoroperation, and to ensurethat the
generatorcomplieswith the applicableemission standardsfor the
durationof its usefullife. Serviceand repairsmaybe performedby
anycapablepersonor repairshop. Additionally,emissionscritical
maintenancemust be performed as scheduled in order for the
Emissions Warrantyto be valid. Emissions critical maintenance
consists of servicingthe air filter and spark plugs in accordance
with the MaintenanceSchedule.
3.2 MAINTENANCESCHEDULE
Follow the calendar intervals. More frequent service is required
whenoperatingin adverseconditionsnotedbelow.
CheckOilLevel AtEachUse
ChangeOilandOilFilters *EverySeason/Every100Hours
CleanSparkArrestorScreen EverySeason/Every100Hours
ServiceAirFilter **EverySeason/Every200Hours
ReplaceSparkPlug EverySeason/Every200Hours
:i: Changeoil after first 30 hours of operationthenevery season.
* Changeoiland oilfilter every monthwhen operatingunderheavyload or in high
temperatures.
** Clean more often under dirty or dusty operating conditions. Replace air filter
parts if very dirty.
3.3 PBODUCTSPECIFICATIONS
3.3.1GENERATOR SPEC/F/CAT/ON$
RatedMax. Power................................................................... 3.6 kW**
Surge Power............................................................................... 4.5 kW
RatedACVoltage...................................................................... 120/240
RatedMax ACLoad
Current@ 240V............................................................. 15.0 Amps**
Current@ 120V............................................................. 30.0 Amps**
RatedFrequency.................................................... 60 Hz@ 3600 RPM
Phase................................................................................ SinglePhase
** Maximumwattageandcurrentaresubjectto,andlimitedby,suchfactors
asfuelBtucontent,ambienttemperature,altitude,enginecondition,etc..
Maximumpowerdecreasesabout3.5%for each1,000feetabovesealevel;
andwillalsodecreaseabout1%for each6° C (10° F)above16° C(60° F)
ambienttemperature.
3.3.2 ENG/NESPECIFICATIONS
RatedHorsepower@ 3600 RPIVl......................................................... 6
Displacement............................................................................ 216.5cc
SparkPlugType................................... ChampionRC14YCor Equivalent
SparkPlug Gap............................................... 0.030 inch or (0.76 ram)
GasolineCapacity......................................................... 4.5 U.S. gallons
OilType.................................... SeeChart in "AddingEngineOil"Section
OilCapacity................................................ w/Filter Change= 0.8 Qts.
RunTime/FuelConsumption-l/2 Load
3.6 kW .............................................. 14 Hours/ .35 gallons per hour
ClassI Emission Certified
11
