2.2 HOURMETER=NORESET
The Hourmeter tracks hours of operation
maintenance:
for scheduled
Therewill be a onetime break in "CHGOIL"messagethat flashes
with the elapsedtime in hours and tenths after the first 30 hours
of operation.
This messagewill actuallybeginflashing at 29 hours and disable
itself at 31 hours providing a two hour window to perform the
service.
Therewill be a subsequent"CHGOIL"messageevery 100 hours.
Themessagewilt flash one hour before and one hour after each
100 hour interval,again providinga two hour window to perform
service.
Every200 hoursthe "SVC"icon on the lower left hand corner of
the display will flash. Themessagewill flash one hourbefore and
onehourafter each 200 hourintervalprovidingatwo hourwindow
to perform service.
Whenthe hour meter is inthe FlashAlert mode, the maintenance
message will always alternate with elapsedtime in hours and
tenths. The hours wilt flash four times, then alternate with the
maintenancemessagefour times until the meter resets itself.
,, 100 hours- CHGOIL-- Oil ChangeInterval(Every100 hrs)
* 200 hours - SVC-- Air FilterInterval (Every200 hrs)
2.3 HOURMETEB=WITHRESET
TheHourmetertrackshoursof operationfor scheduledmaintenance
(seechart).
Operation: Pushand releasethe reset button to toggle between
screens. The hours count backwards from the set interval as
shown in the chart.
Whenthe meter reaches5 hours,thetext"CHGOIL"(or "SVCAIR
FILTER"or "CHG PLUG")will flash continuallyfor two minutes.
Afterthis time, the meterwill go backto displayingthe total hours
of the unit (for 2 minutes). This cyle will repeatfor the entire 5
hours.
When the service interval reaches zero hours, the text "NOW"
replacesthe hours remaining.
Fora newgeneratorfor instance,the messagewill say "CHGOIL"
thenflash "in 30". This meansthat in 30 hours, the oil wilt needto
be changed. Pressingthe button a few moretimes will bring the
meter backto the screenthat shows thetotal hours run.
Reset: Toggleto the alert that you wish to reset then hold the
buttondownfor 9 seconds.Themaintenancehoursareresetwhen
thedisplay shows "0000.0".
NOTE:
Thehourglass graphic willflashon and off whenthe engine
is running.This signifiesthat the meter is trackinghours of
operation.

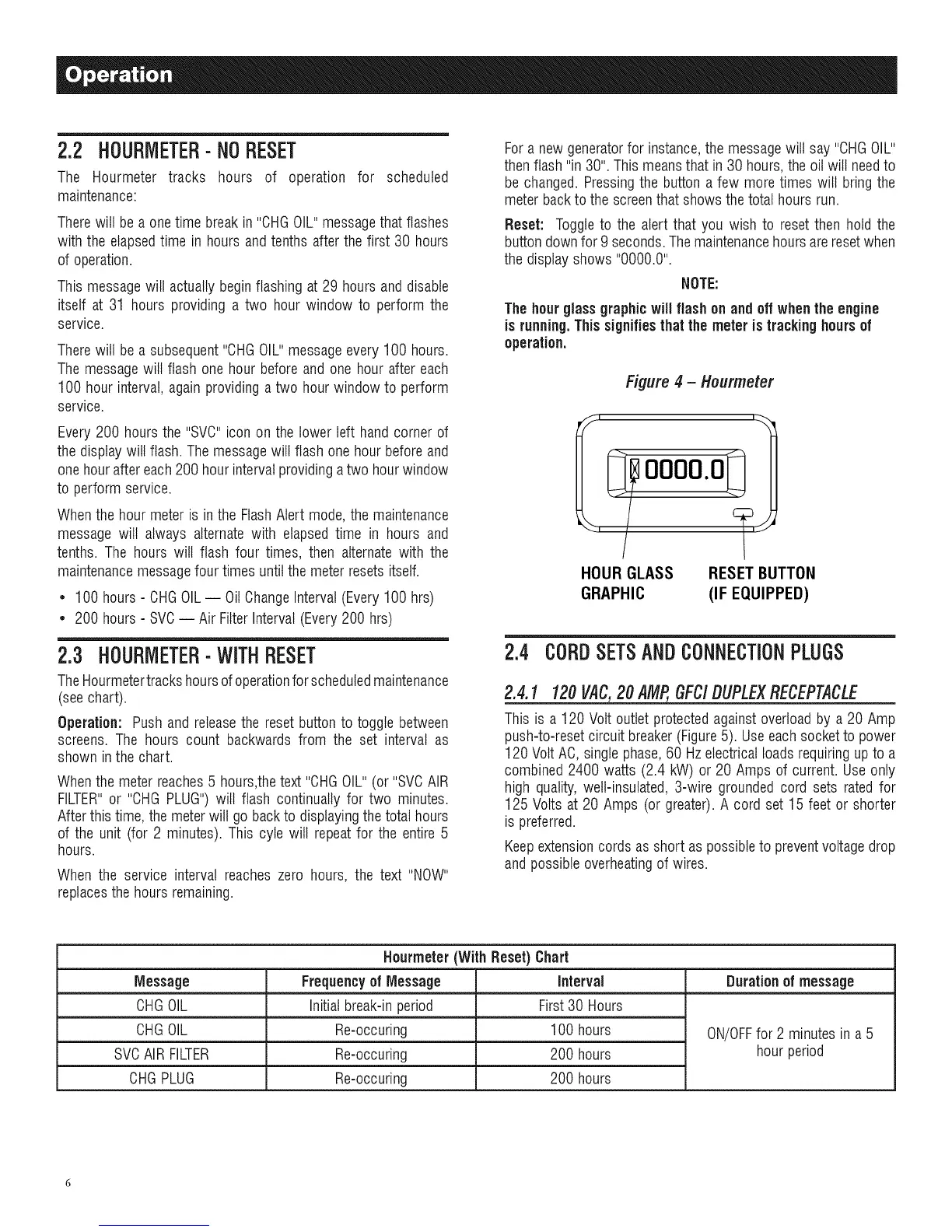

Figure 4 - Hourmeter
OOOO'O
HOUR GLASS RESET BUTTON
GRAPHIC (IF EQUIPPED)
2.4 CORDSETSANDCONNECTIONPLUGS
2.4.1 120VAC,20 AMP,GFC/DUPLEXRECEPTACLE
This is a 120 Volt outlet protectedagainst overloadby a 20 Amp
push-to-resetcircuitbreaker(Figure5). Useeach socketto power
120 VoltAC, singlephase,60 Hzelectrical loads requiringup to a
combined 2400 watts (2.4 kW) or 20 Amps of current.Use only
high quality,welt-insulated,3-wire grounded cord sets rated for
125 Volts at 20 Amps (or greater).A cord set 15 feet or shorter
is preferred.
Keepextensioncords as short as possibleto preventvoltagedrop
and possibleoverheatingof wires.
Nourmeter(With Reset) Chart
Message Frequencyof Message Interval Duration of message
CHGOIL Initialbreak-inperiod First30 Hours
CHGOIL Re-occuring 100 hours ON/OFFfor 2 minutes in a 5
SVCAIR FILTER Re-occuring 200 hours hour period
CHGPLUG Re-occuring 200 hours
