Metal Bypass (must be purchased separately)
• Detach animated connectors from the female adaptor and install washer
before attaching them to the inlet and outlet of the valve.
• Attach female adaptors to the 1" yoke; be certain meter impeller is
installed on the outlet side, impeller facing in.
• Attach metal bypass to the yoke with two flanged spools. Secure with
metal clips.
• Grease O-ring of the animated connectors and attach bypass assembly to
valve, secure with clips.
• Meter cable installed into cable port on the outlet side during system
start-up.
• Standard bypass (included.)

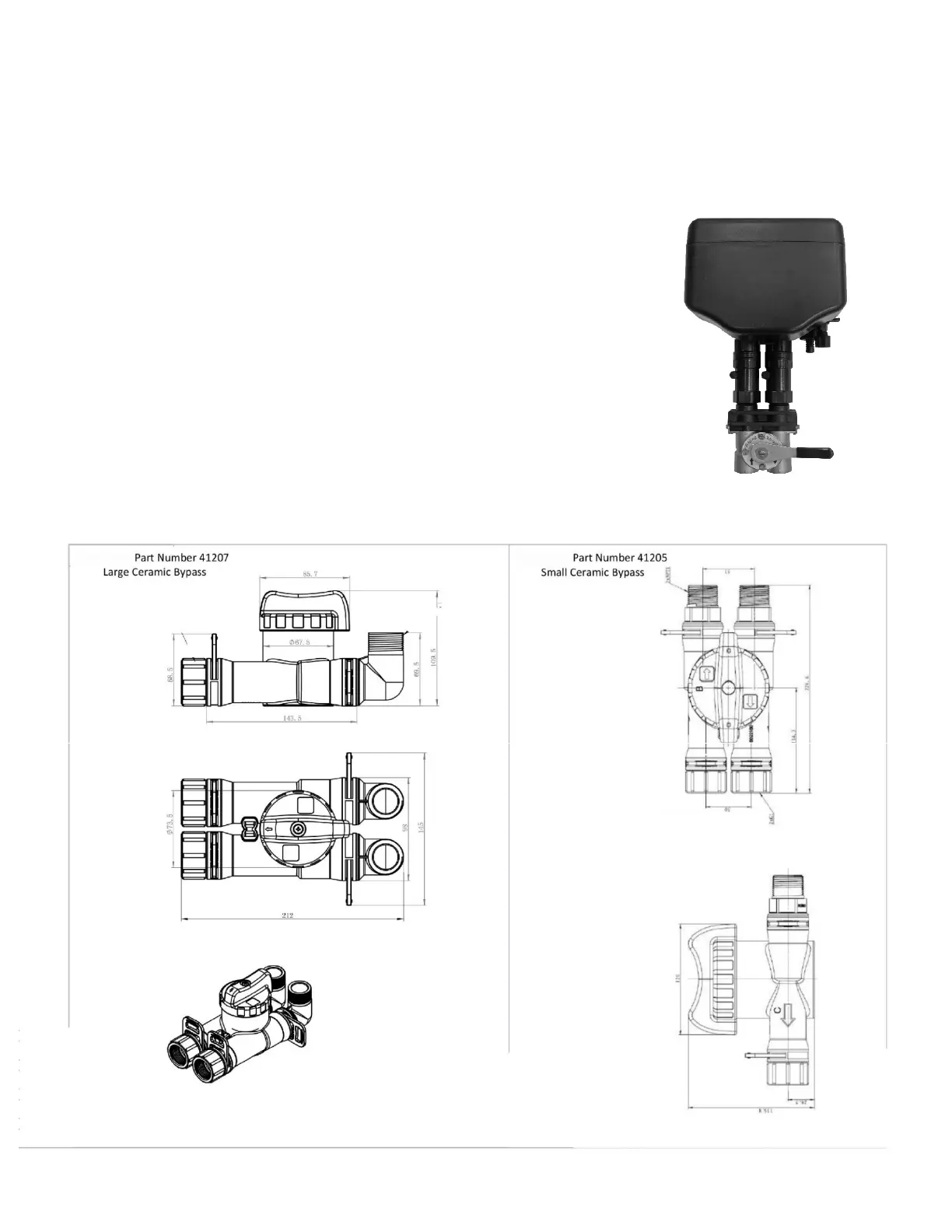

Ceramic Bypasses
Genesis Upflow Valves & Systems Service Manual
Standard with your system
