Genesis Upflow-NHW User Manual

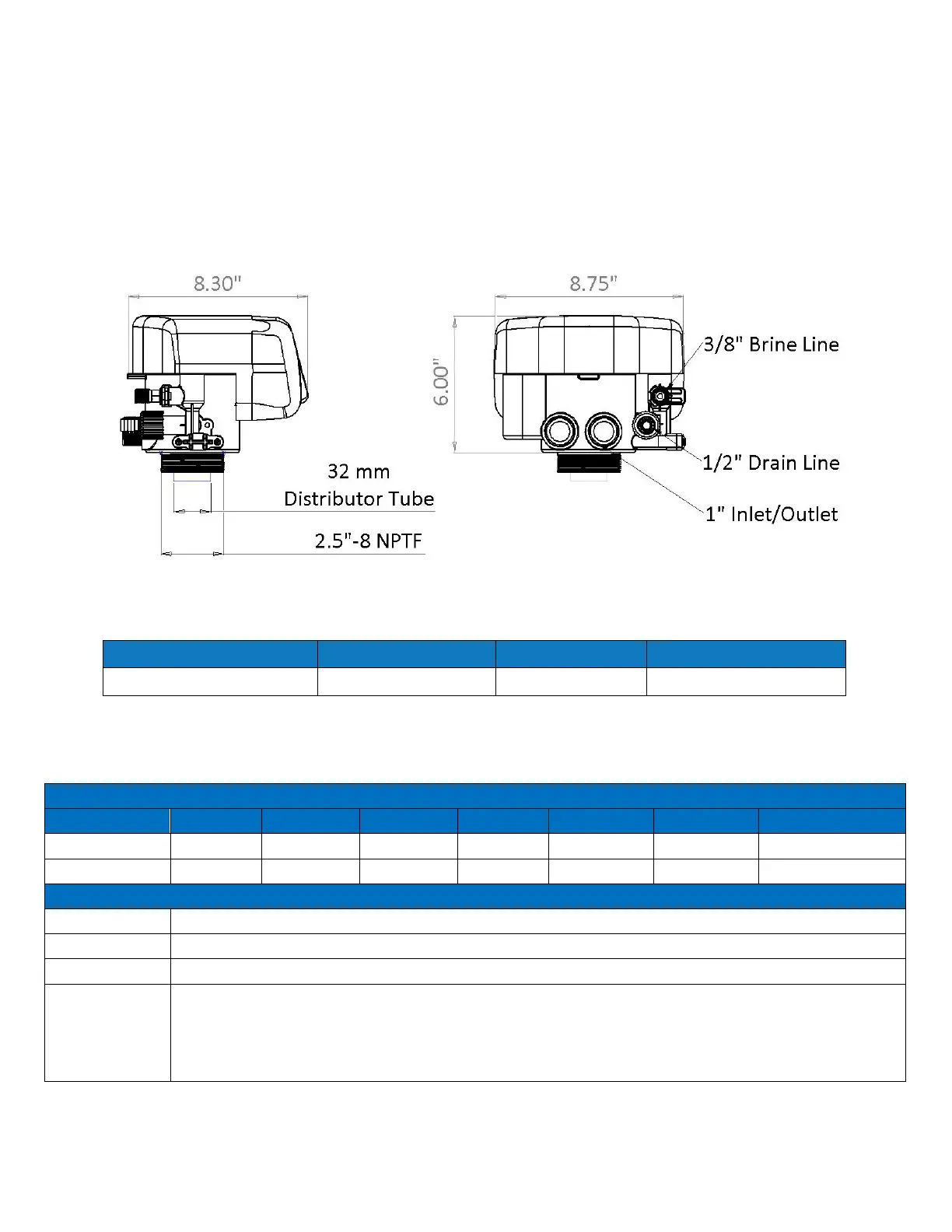

3. Product Dimensions and Specifications
Length (max.) Width (max.) Height (max.) Regeneration Mode
8.3" 8.75" 7.5" Up-flow
These valve dimensions are for reference only.
Connect Port Dimensions
Product Model Inlet Port Outlet Port Drain Port Brine Port Base Riser Pipe
Hard Water Bypass
Genesis Upflow-NHW
1" NPT 1" NPT 3/4" NPT 3/8" 2.5" 8NPSM 32 mm No
Genesis Upflow-HW
1" NPT 1" NPT 3/4" NPT 3/8" 2.5" 8NPSM 32 mm Yes
Main Technical Parameters
Water Capacity See Performance Data Sheet
Power Input 100-240VAC / 50-60Hz
Power Output 12VDC / 2A
Regeneration
Cycles
Sequence 1: Service → Backwash → Brine & Slow Rinse → Fast Rinse → Brine Refill
Sequence 2: Service → Backwash → Brine & Slow Rinse → Backwash → Fast Rinse → Brine Refill
Sequence 3: Service → Brine Refill → Service (180 min-time fixed) → Backwash → Brine & Slow Rinse →
Backwash → Fast Rinse
