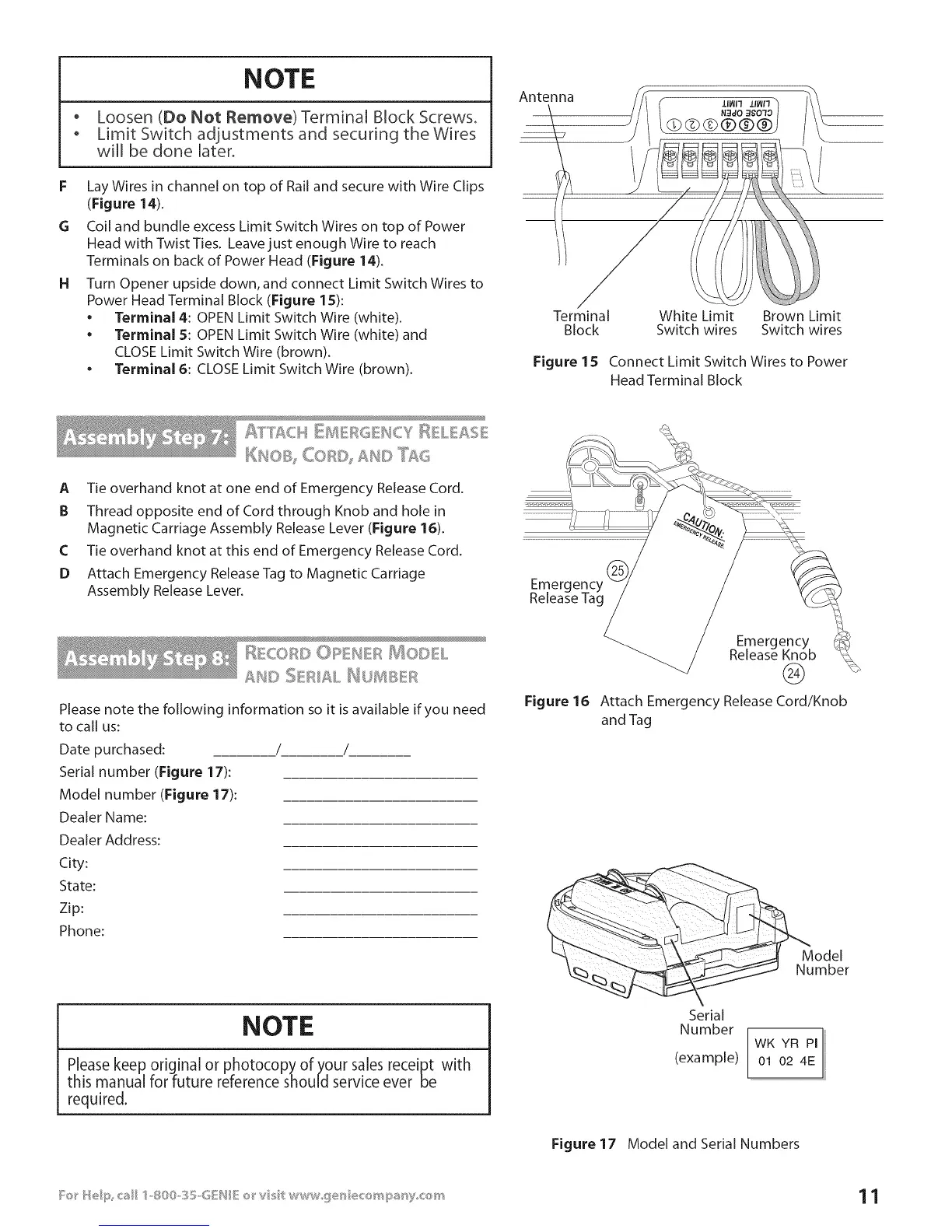

NOTE
o Loosen (Do Not Remove) Terminal Block Screws_
o Limit Switch adjustments and securing the Wires
will be done later.
F Lay Wires in channel on top of Rail and secure with Wire Clips
(Figure 14).
G Coil and bundle excess Limit Switch Wires on top of Power
Head with Twist Ties. Leave just enough Wire to reach
Terminals on back of Power Head (Figure 14).
H Turn Opener upside down, and connect Limit Switch Wires to
Power Head Terminal Block (Figure lS):
• Terminal 4: OPEN Limit Switch Wire (white).
• Terminal 5: OPEN Limit Switch Wire (white) and
CLOSE Limit Switch Wire (brown).
• Terminal 6: CLOSE Limit Switch Wire (brown).
Antenna
Terminal White Limit Brown Limit
Block Switch wires Switch wires
Figure 15 Connect Limit Switch Wires to Power
HeadTerminal Block
_ffT'£Ck¢ _D4 F_G _SCY_ L AS
A Tie overhand knot at one end of Emergency Release Cord.
B Thread opposite end of Cord through Knob and hole in
Magnetic Carriage Assembly Release Lever (Figure 16).
C Tie overhand knot at this end of Emergency Release Cord.
D Attach Emergency Release Tag to Magnetic Carriage
Assembly Release Lever.
Please note the following information so it is available if you need
to call us:
Date purchased: / /
Serial number (Figure 17):
Model number (Figure 17):
Dealer Name:
Dealer Address:
City:
State:
Zip:
Phone:
Figure 16
Emergency
Release Knob
®
Attach Emergency Release Cord/Knob
and Tag
Model
Number
NOTE
Please keep original or photocopy of your sales receipt with
this manual for future reference should service ever be
required.
Serial
Number
(example)
WK YR PI
01 02 4E
Figure 17 Model and Serial Numbers
