L st
item Part Name Quantity
Required
1-Pc Rail 13-Pc Rail
1 Power Head Assembly (main carton) 1 1
2 1/4"-20 x 13/16" HexHead Shoulder Bolt (blue bag) 2 2
(yellow bolt)
3 RailAssembly (1 piece#packaged separately) 1
4 RailAssembly (3 piece)(main carton) 1
4A First RailSection 1
4B Middle RailSection 1
4C End RailSection 1
8 1/4"-20 Hex SerratedFlangeNut (blue bag) 4 4
9 RailClamps(blue bag) 4
10 5/16"-18 x 11/16" Hex HeadShoulder Bolt (blue bag) 8
11 5/16"-18 Hex Serrated Flange Nut (blue & orange bags) varieS/modeI 12
12 Magnetic CarriageAssembly (maincarton) 1 1
13 Collar (blue bag) 3
14 Retaining Clip (blue bag) 3
15 RailStrap (blue bag) 1 1
16 1/4"-20 Hex HeadBolt (blue bag) 2 2
18 Open Limit Switch Assembly (White)(green bag) 1 1
19 CloseLimit Switch Assembly(Brown) (green bag) 1 1
21 No.8-32 x 1" HexHead Screw (green bag) 2 2
22 Emergency ReleaseCord (green bag) 1 1
23 Emergency ReleaseCord (Iong)(yellow) 10'&12'only
24 Emergency ReleaseKnob (green bag) 1 1
25 Emergency ReleaseTag(green bag) 1 1
26 Header Bracket(orange bag) 1 1
28 Door Bracket(orange bag) 1 1
30 1/4" x 2" LagScrew(orange bag) varieS/modeI 8
31 Straight Door Arm (main carton) 1 1
32 ClevisPin,3/8" x 15/16" (yellow bag) 2 2
33 Cotter Pin,.073" dia.(yellow bag) 2 2
34 Curved Door Arm (maincarton) 1 1
35 3/8" x 7/8" Hex Head Bolt (yellow bag) 2 2
36 3/8" HexSerrated Flange Nut (yellow bag) 2 2
37_ 2-ConductorWire (main carton) 1 Roll 1 Roll
38_ Insulated Staple(red bag) approx.30 approx.30
40* Wall Console (main carton) 1 1
41" #6 x 1-1/4" Pan HeadScrew (red bag) 2 2
42* Entrapment Warning Label (manual)(main carton) 1 1
43* Safe-T-Beam(STB)Sensor (GreenLED)(maincarton) 1 1
44* Safe-T-Beam(STB)Source (Red LED#main carton) 1 1
45* Safe-T-Beam(STB)Bracket (yellow bag) 2 2
46 Coupler (blue bag) 1 1
47_ No.lO xl 1/4" Phillips HexHeadScrew(yellow bag) 4 4
48_ 1 Button RemoteControl (main carton) varieS/modeI varieS/modeI
49* 3 Button Remote Control (main carton) varieS/modeI varieS/modeI
SO* WirelessKeypad(main carton) varieS/modeI varieS/modeI
51" 2 Button Remote Control (main carton) varieS/modeI varieS/modeI
52* Safety&Maintenance Guide (manual)(main carton) 1 1
53 Wire Clip (green bag) 7
54 Bumper (blue bag) 1 1
SS* 5/16"-18x 3/4" HexHeadBolt(orange bag) 3
56 1/4-20 x 3/4" Self-drilling Screw(orange bag) 3 3
57 Mounting Straps(main carton) 2 2
Denotesitems not shownon page8. Theseitemswill beillustrated
throughout the manualasrequired.
Model Number
I_ f}' Serial Number

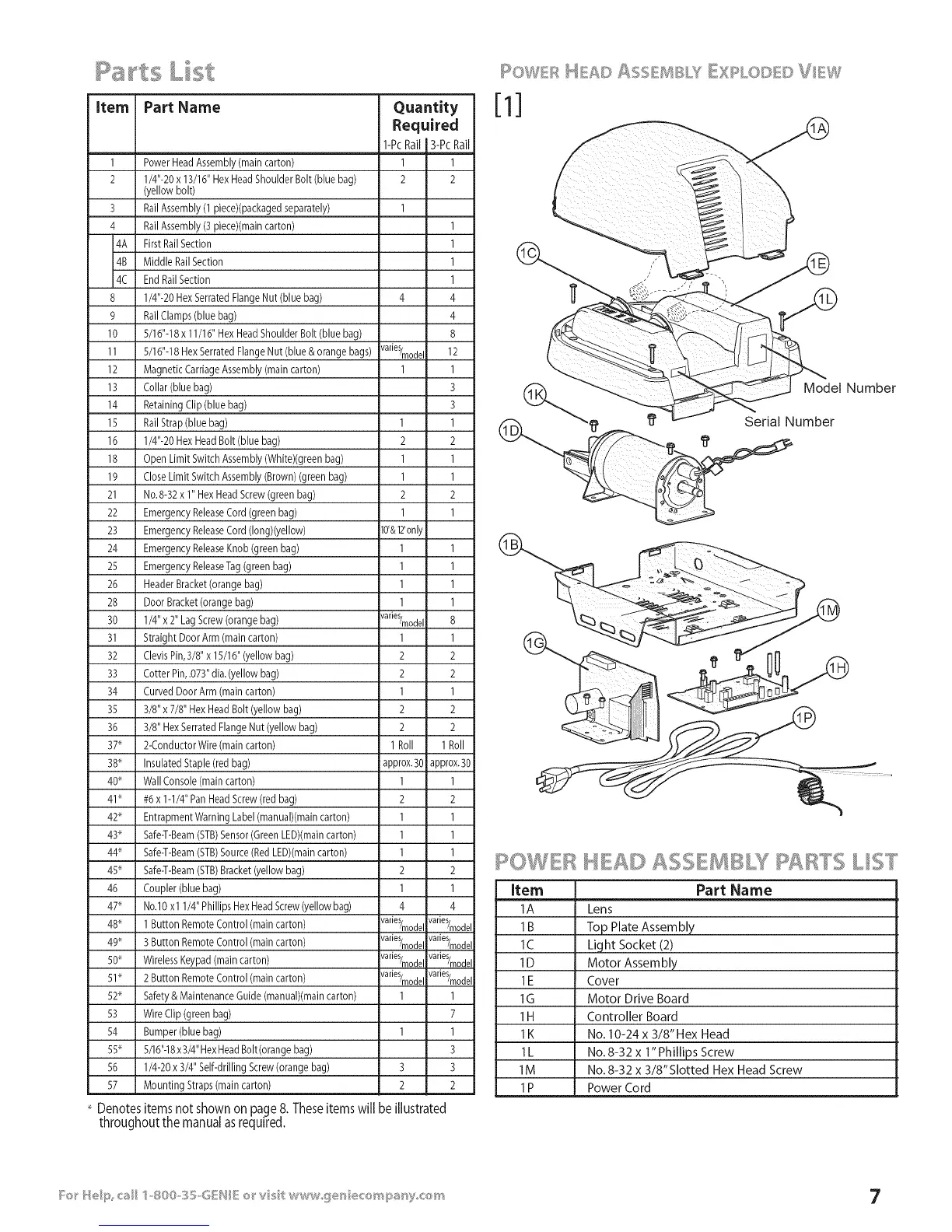

ROWER HEAD c ....,, B Ts L/ST
Item
1A
1B
lC
1D
1E
1G
1H
1K
1L
1M
1P
Part Name
Lens
Top Plate Assembly
Light Socket (2)
Motor Assembly
Cover
Motor Drive Board
Controller Board
No. 10-24 x 3/8" Hex Head
No.8-32 x 1" Phillips Screw
No. 8-32 x 3/8" Slotted Hex Head Screw
Power Cord
To Next Page
