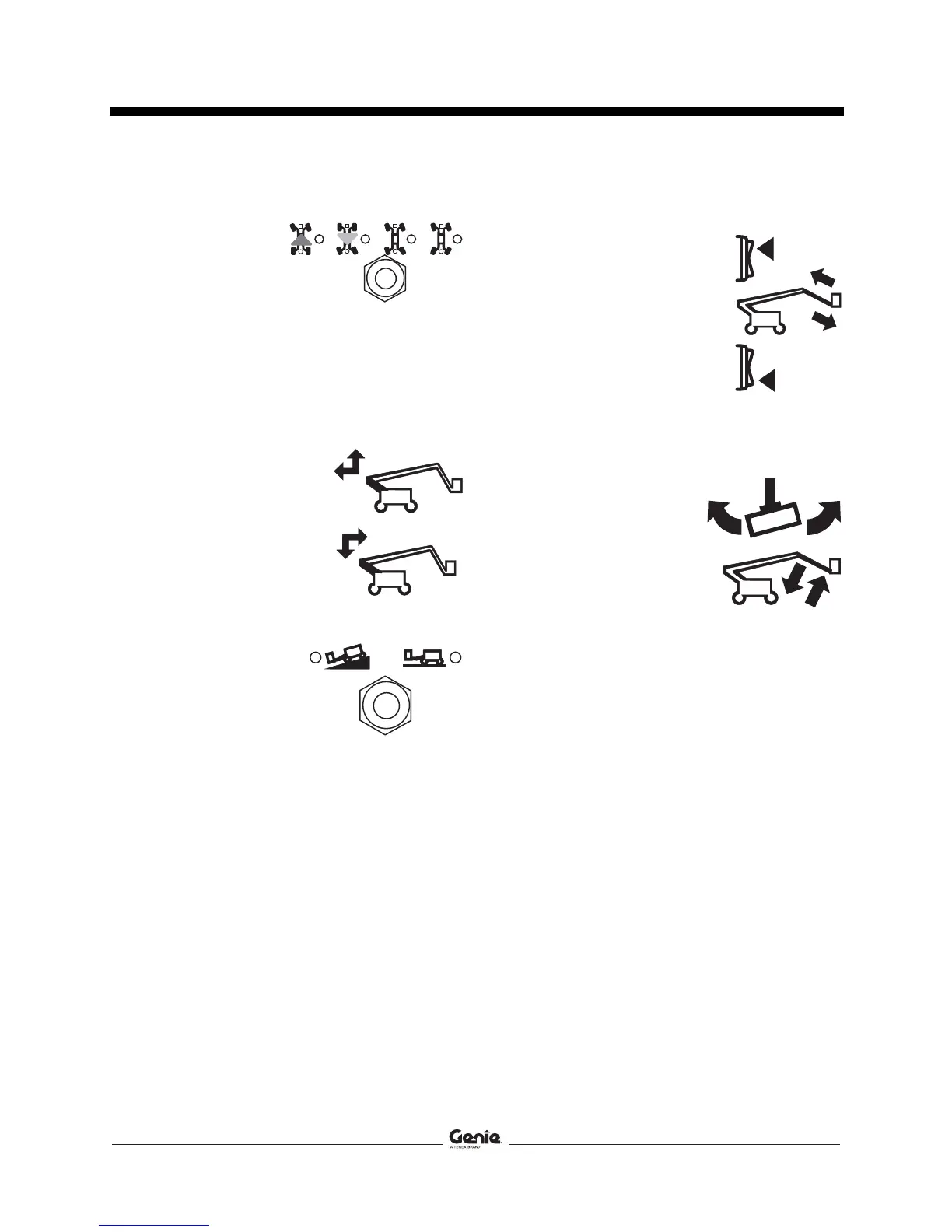

Controls
26 ZX-135/70 Part No. 1272823GT
19 Steer mode select switch with indicator lights
Move the steer
mode select switch
to choose steer
mode.
The indicator light
next to the current
steer mode will be
on.
20 Single axis proportional control handle for
secondary boom up/extend and down/retract
function
Move the control handle
up and the secondary
boom will raise and then
extend. Move the control
handle down and the
secondary boom will
retract and then lower.
21 Drive select switch with indicator lights
Move the drive select
switch to choose drive
setting. The indicator
light next to the current
setting will be on.
22 Thumb rocker for jib boom extend/retract
function
Push the top of the rocker
switch and the jib boom will
retract. Push the bottom of the
rocker switch and the jib boom
will extend.
23 Dual axis proportional control handle for jib
boom up/down and platform rotate left/right
functions
Move the control handle
up and the jib boom will
raise. Move the control
handle down and the jib
boom will lower. Move
the control handle to the
left and the platform will
rotate to the left. Move
the control handle to the
right and the platform will
rotate to the right.

Genie ZX-135/70 with Jib-Extend Specifications

General

Turntable Rotation	360° continuous
Platform Rotation	160°
Gradeability	45%
Maximum Platform Height	135 ft
Engine Power	74 hp
Fuel Type	Diesel
Stowed Height (ft)	10 ft
Max Working Height	141 ft
Platform Height	135 ft
Max Horizontal Reach	70 ft
Platform Capacity	600 lbs
Machine Width	8 ft 2 in
Stowed Height	10 ft
Drive Speed - Stowed	3.5 km/h
Jib Length	12 ft
Horizontal Reach	70 ft
Platform Capacity (lbs)	600 lbs
Drive Speed	3.5 km/h
Stowed Length	43 ft 2 in / 13.16 m
Stowed Width	8 ft 2 in
