Third Edition • First Printing Operator's Manual
Controls
Part No. 1272823GT ZX-135/70 27

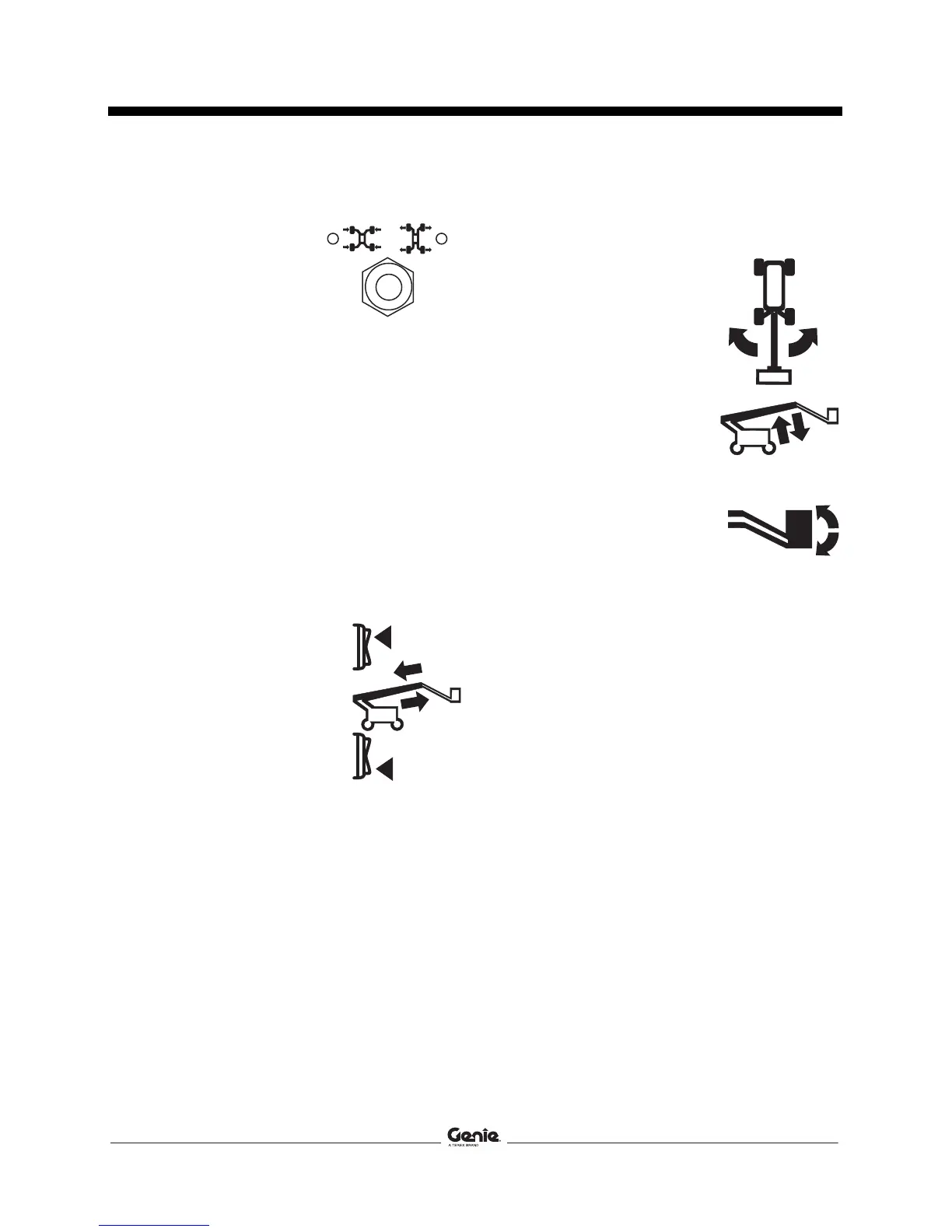

24 Axle extend/retract switch with indicator lights
Move the axle select
switch to choose an axle
setting. The indicator light
will flash while the axles
are extending and stay
on when the axles are
fully extended. The
indicator light will flash
while the axles are
retracting and stay on
when the axles are fully
retracted.
25 Drive enable switch with indicator light
Light on indicates that the primary boom has
moved past either circle-end wheel and the
drive function is turned off. To drive, move the
drive enable switch and slowly move the drive
control handle off center.
26 Thumb rocker switch for primary boom
extend/retract function
Push the top of the rocker
switch and primary boom
will retract. Push the
bottom of the rocker switch
and the primary boom will
extend.
27 Dual axis proportional control handle for
primary boom up/down and turntable rotate
left/right functions
Move the control handle up
and the primary boom will
raise. Move the control
handle down and the
primary boom will lower.
Move the control handle to
the left and the turntable
will rotate to the left. Move
the control handle to the
right and the turntable will
rotate to the right.
28 Platform level switch
Move the platform level
switch up and the level of the
platform will raise. Move the
platform level switch down
and the level of the platform
will lower.
