Inspections
Part No. 1272823GT ZX-135/70 37
57 Slowly move the control handle in the direction
indicated by the yellow triangle on the control
panel OR press the thumb rocker switch in the
direction indicated by the yellow triangle.
Result: All wheels should turn in the direction
that the yellow triangles point on the drive
chassis.

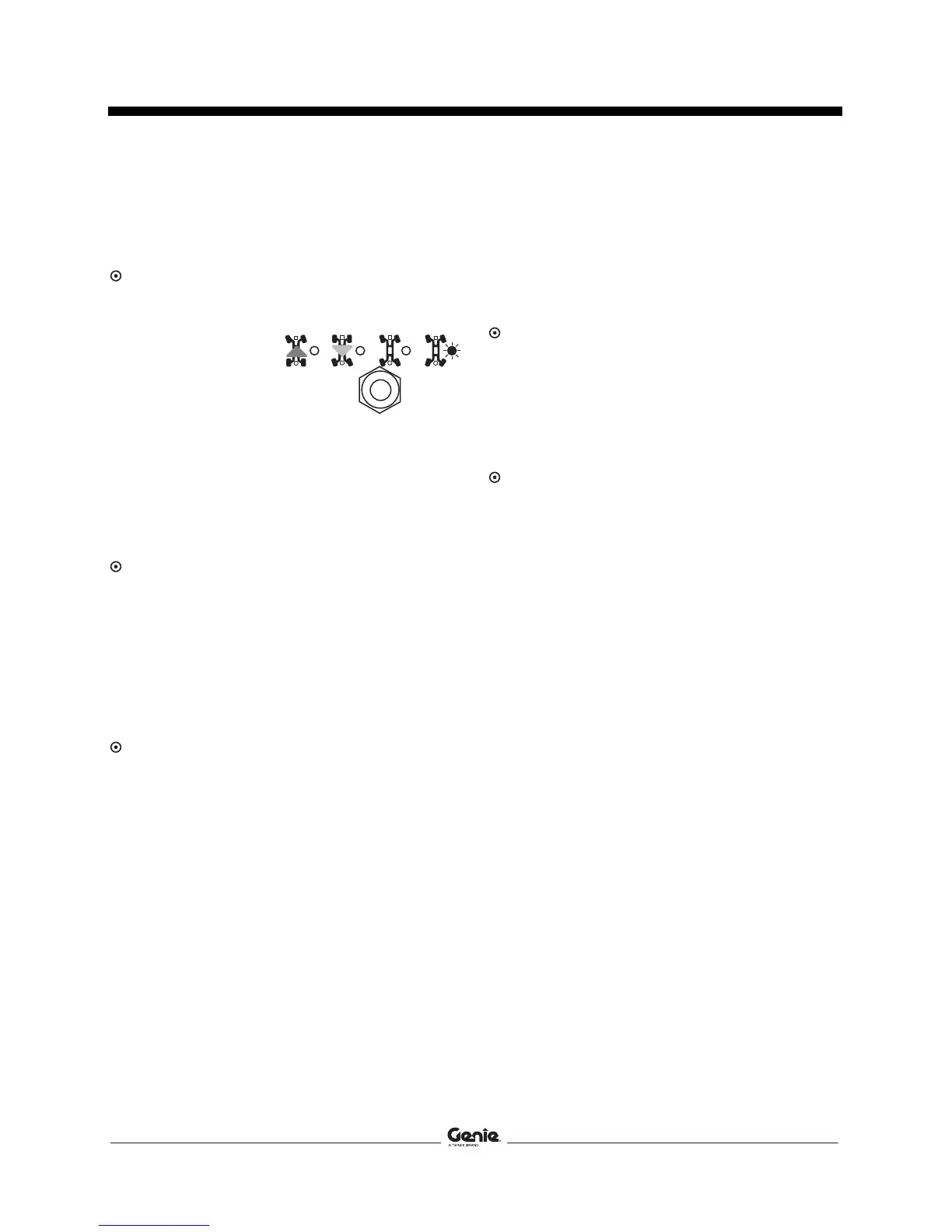

58 Move the steer
mode select switch
and choose
coordinated steer.
59 Press down the foot switch.
60 Slowly move the drive control handle in the
direction indicated by the blue triangle on the
control panel OR press the thumb rocker
switch in the direction indicated by the blue
triangle.
Result: The square-end wheels should turn in
the direction that the blue triangles point on the
drive chassis. The circle-end wheels should
turn in the direction that the yellow triangles
point on the drive chassis.
61 Slowly move the control handle in the direction
indicated by the yellow triangle on the control
panel OR press the thumb rocker switch in the
direction indicated by the yellow triangle.
Result: The square-end wheels should turn in
the direction that the yellow triangles point on
the drive chassis. The circle-end wheels should
turn in the direction that the blue triangles point
on the drive chassis.
Test Drive and Braking
62 Press down the foot switch.
63 Slowly move the drive control handle in the
direction indicated by the blue arrow on the
control panel until the machine begins to move,
then return the handle to the center position.
Result: The machine should move in the
direction that the blue arrow points on the drive
chassis, then come to an abrupt stop.
64 Slowly move the control handle in the direction
indicated by the yellow arrow on the control
panel until the machine begins to move, then
return the handle to the center position.
Result: The machine should move in the
direction that the yellow arrow points on the
drive chassis, then come to an abrupt stop.
Note: The brakes must be able to hold the machine
on any slope it is able to climb.
