Operator's Manual Third Edition • First Printing
Inspections
36 ZX-135/70 Part No. 1272823GT

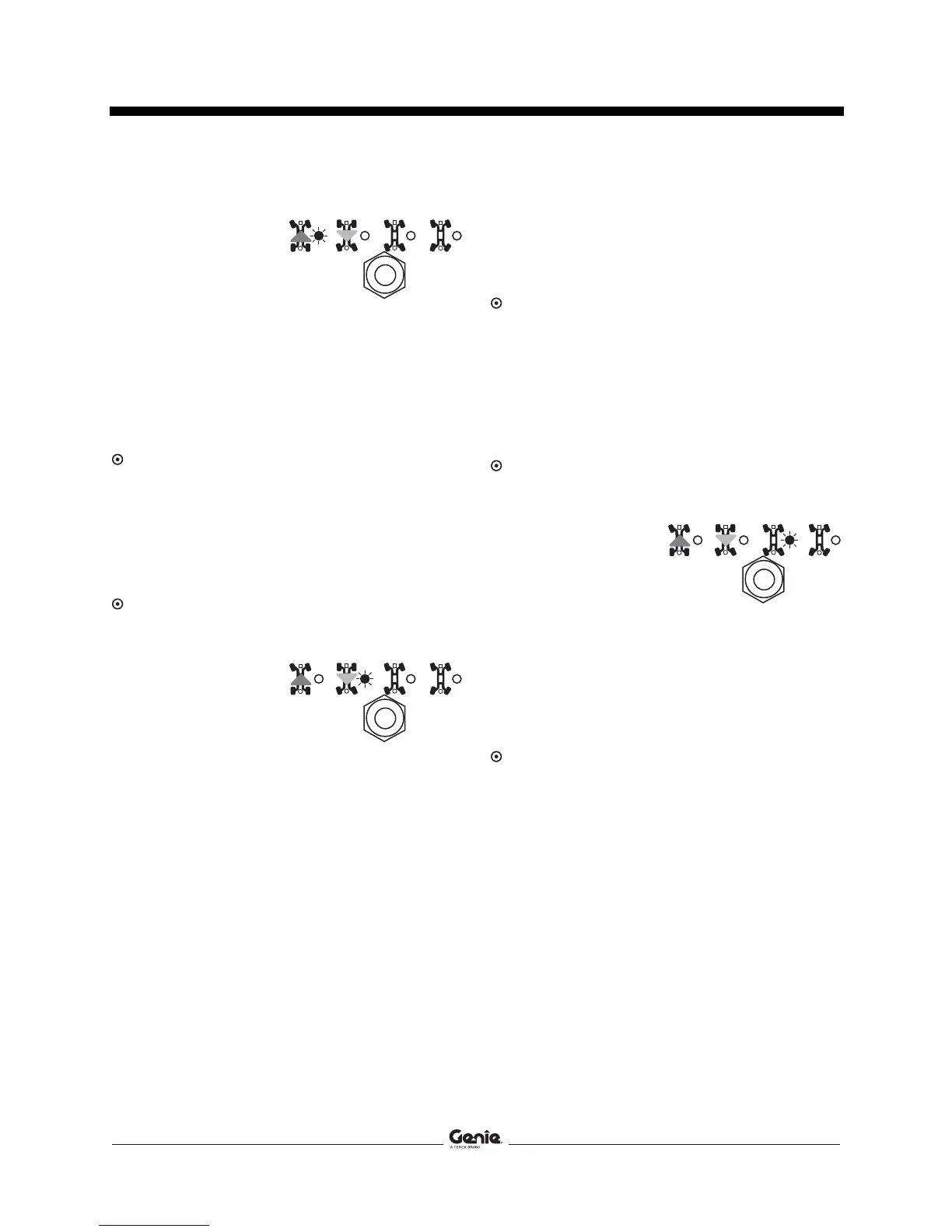

Test the Steering
46 Move the steer
mode select switch
and choose
square-end (blue
arrow) steer.
47 Press down the foot switch.
48 Slowly move the drive control handle in the
direction indicated by the blue triangle on the
control panel OR press the thumb rocker
switch in the direction indicated by the blue
triangle.
Result: The square-end wheels should turn in
the direction that the blue triangles point on the
drive chassis.
49 Slowly move the control handle in the direction
indicated by the yellow triangle on the control
panel OR press the thumb rocker switch in the
direction indicated by the yellow triangle.
Result: The square-end wheels should turn in
the direction that the yellow triangles point on
the drive chassis.
50 Move the steer
mode select switch
and choose
circle-end (yellow
arrow) steer.
51 Press down the foot switch.
52 Slowly move the control handle in the direction
indicated by the yellow triangle on the control
panel OR press the thumb rocker switch in the
direction indicated by the yellow triangle.
Result: The circle-end wheels should turn in
the direction that the blue triangles point on the
drive chassis.
53 Slowly move the drive control handle in the
direction indicated by the blue triangle on the
control panel OR press the thumb rocker
switch in the direction indicated by the blue
triangle.
Result: The circle-end wheels should turn in
the direction that the yellow triangles point on
the drive chassis.
54 Move the steer
mode select switch
and choose crab
steer.
55 Press down the foot switch.
56 Slowly move the drive control handle in the
direction indicated by the blue triangle on the
control panel OR press the thumb rocker
switch in the direction indicated by the blue
triangle.
Result: All wheels should turn in the direction
that the blue triangles point on the drive
chassis.
