Operator's Manual Third Edition • First Printing
Operating Instructions
48 ZX-135/70 Part No. 1272823GT
Emergency Stop
Push in the red Emergency Stop button to the off
position at the ground controls or the platform
controls to stop all machine functions and turn the
engine off.
Repair any function that operates when either red
Emergency Stop button is pushed in.
Selecting and operating the ground controls will
override the platform red Emergency Stop button.
Emergency Controls
Use emergency power if the primary power source
(engine) fails.
1 Turn the key switch to ground or platform
control.
2 Pull out the red Emergency Stop button to the
on position.
3 Press down the foot switch when using the
controls from the platform.
4 Simultaneously hold the emergency
power switch on and activate the
desired function.
The drive function will not operate with emergency
power.

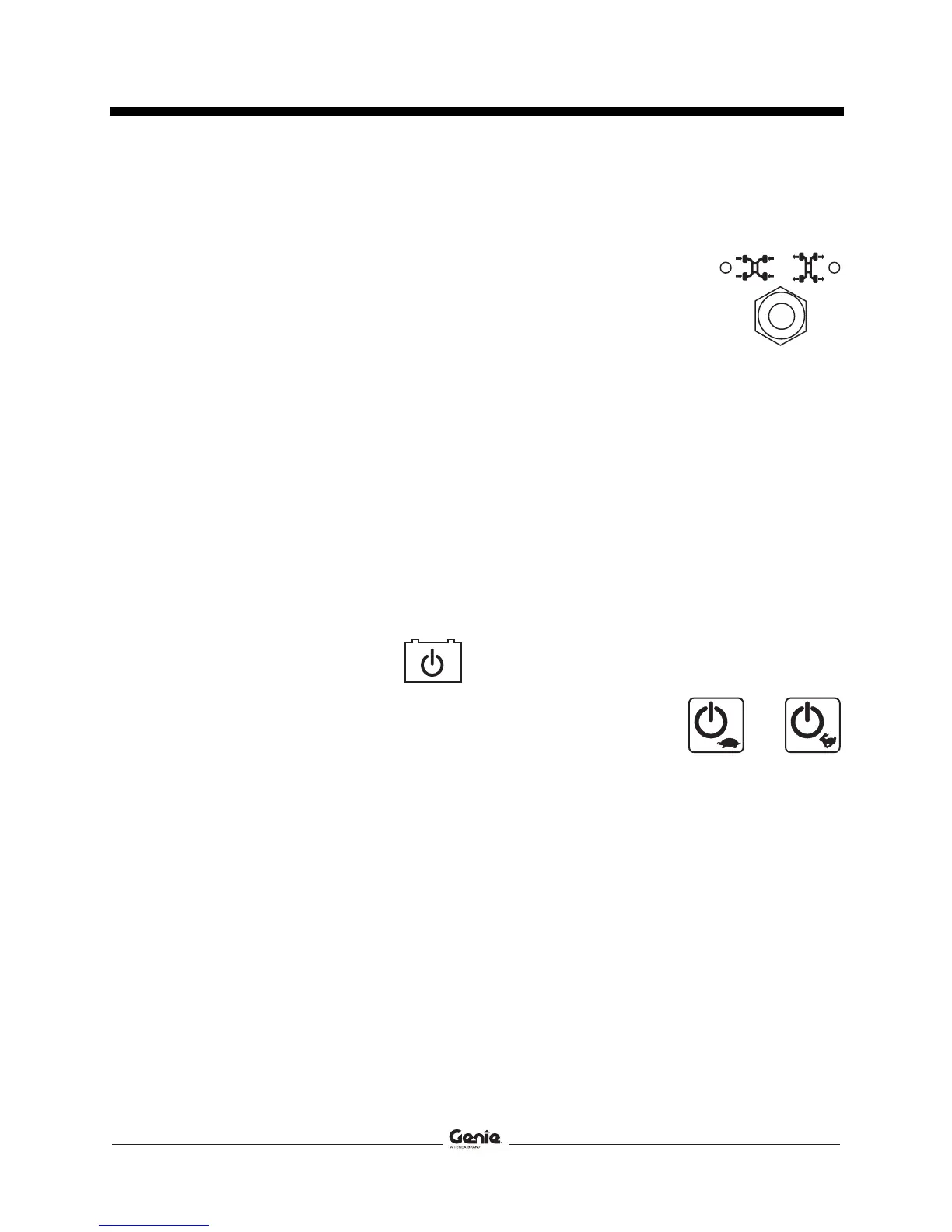

To Extend and Retract Axles
1 Turn the key switch to platform control.
2 At the platform controls,
press down the foot switch
and move the drive control
handle in either direction
and move the axle switch in
the appropriate direction.
The indicator light will flash while the axles are
moving and stay on when the axles are fully
extended or retracted.
The axles can only be retracted if the primary and
secondary booms are fully lowered and retracted
and the platform is between the circle-end wheels.
Operation from Ground
1 Turn the key switch to ground control.
2 Pull out the red Emergency Stop button to the
on position.
3 Start the engine.
To Position Platform
1 Push and hold a function
enable/speed select
button.
2 Push the appropriate
function button
according to the
markings on the control
panel.
Drive and steer functions are not available from the
ground controls.
