Third Edition • First Printing Operator's Manual
Operating Instructions
Part No. 1272823GT ZX-135/70 49
Operation from Platform
1 Turn the key switch to platform control.
2 Pull out both ground and platform red
Emergency Stop buttons to the on position.
3 Start the engine. Do not press down the foot
switch when starting the engine.
To Position Platform
1 Press down the foot switch.
2 Slowly move the appropriate function control
handle or thumb rocker switch or toggle switch
according to the markings on the control panel.

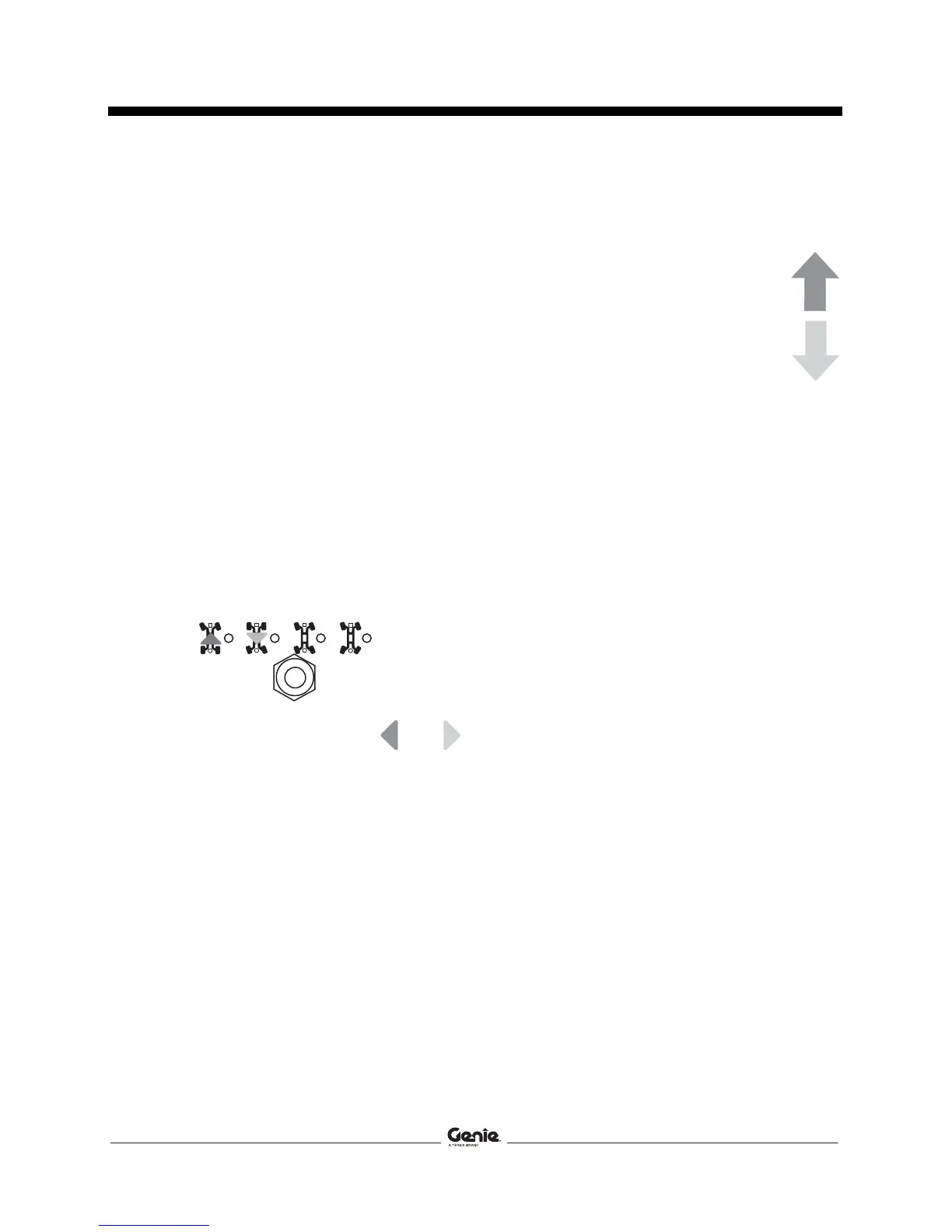

To Steer
1 Press down the foot switch.
2 Select the steer mode by moving the steer
mode switch. The indicator light next to the
current steer mode will be on.
3 Slowly move the drive control
handle in the direction indicated
by blue or yellow triangles
OR press the thumb rocker
switch located on top of the drive
control handle.
Use the color-coded direction arrows on the
platform controls and the drive chassis to identify
the direction the wheels will turn.
To Drive
1 Press down the foot switch.
2 Increase speed: Slowly move the drive
control handle in the direction
indicated by the blue or yellow arrows.
Decrease speed: Slowly move the
drive control handle toward center.
Stop: Return the drive control handle
to center or release the foot switch.
Use the color-coded direction arrows on the
platform controls and the drive chassis to identify
the direction the machine will travel.
Machine travel speed is restricted when the boom
is raised or extended.
