Genie ZX-135/70 with Jib-Extend User Manual

Operator's Manual Third Edition • First Printing

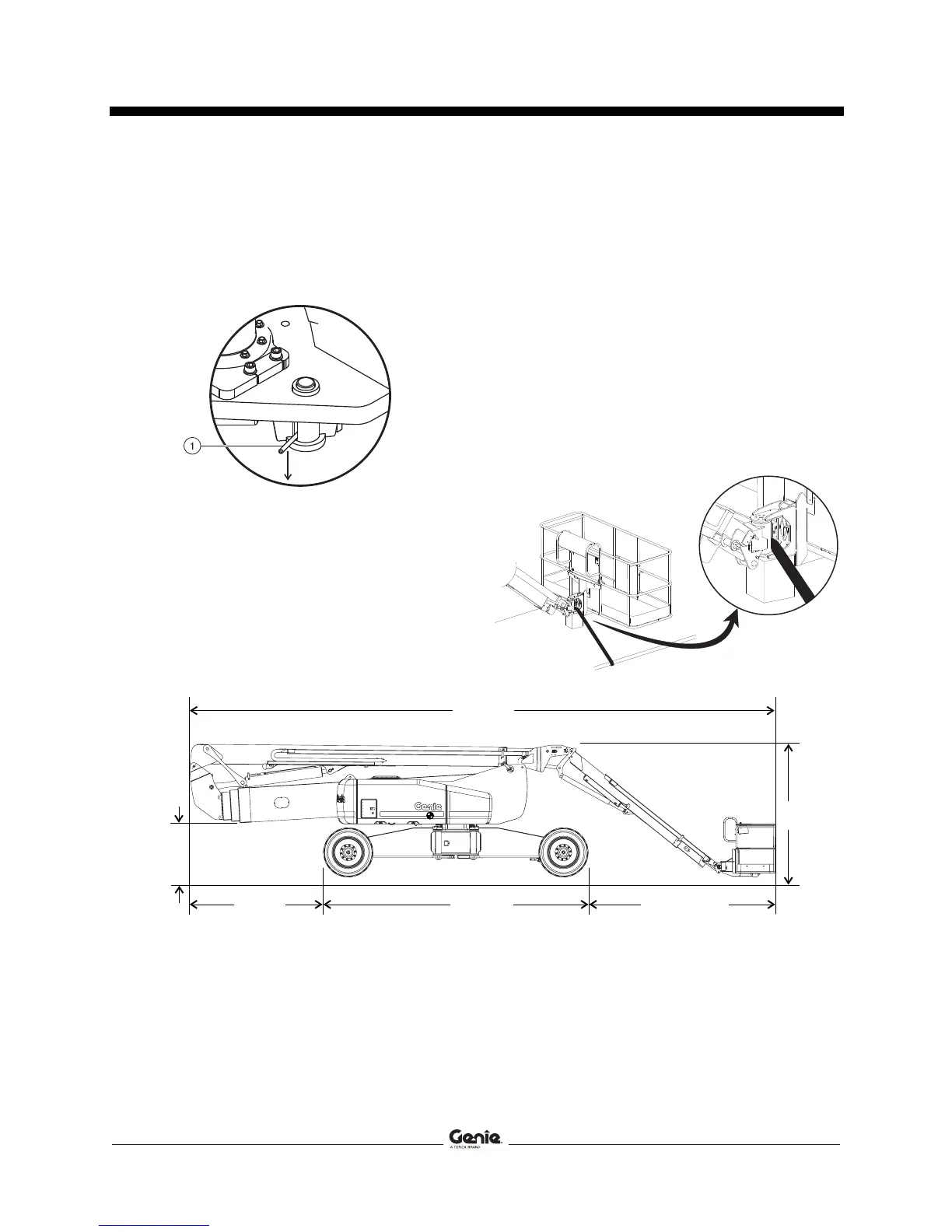

Transport and Lifting Instructions
56 ZX-135/70 Part No. 1272823GT
Securing to Truck or Trailer for
Transit
Always use the turntable rotation lock pin each time
the machine is transported.
1 Turntable rotation lock pin
Turn the key switch to the off position and remove
the key before transporting.
Inspect the entire machine for loose or unsecured
items.
Securing the Chassis
Use chains of ample load capacity.
Use a minimum of 6 chains.
Adjust the rigging to prevent damage to the chains.
Securing the Platform
Place a block under the platform rotator. Do not
allow the block to contact the platform cylinder.
Secure the platform with a nylon strap placed
through the lower platform support. Do not use
excessive downward force when securing the
boom section.
1.37 m
3.58 m
5.28 m 4.07 m
3.07 m
12.93 m

Genie ZX-135/70 with Jib-Extend Specifications

General

Turntable Rotation	360° continuous
Platform Rotation	160°
Gradeability	45%
Maximum Platform Height	135 ft
Engine Power	74 hp
Fuel Type	Diesel
Stowed Height (ft)	10 ft
Max Working Height	141 ft
Platform Height	135 ft
Max Horizontal Reach	70 ft
Platform Capacity	600 lbs
Machine Width	8 ft 2 in
Stowed Height	10 ft
Drive Speed - Stowed	3.5 km/h
Jib Length	12 ft
Horizontal Reach	70 ft
Platform Capacity (lbs)	600 lbs
Drive Speed	3.5 km/h
Stowed Length	43 ft 2 in / 13.16 m
Stowed Width	8 ft 2 in
