Third Edition • First Printing Operator's Manual

Transport and Lifting Instructions

Part No. 1272823GT ZX-135/70 57

Observe and Obey:

 Only qualified riggers should rig the machine.

 Only certified crane operators should lift the

machine and only in accordance with the

applicable crane regulations.

 Be sure the crane capacity, loading surfaces

and straps or lines are sufficient to withstand

the machine weight. See the serial label for the

machine weight.

Lifting Instructions

Fully lower and retract the boom. Fully lower the jib

(if equipped). Remove all loose items on the

machine.

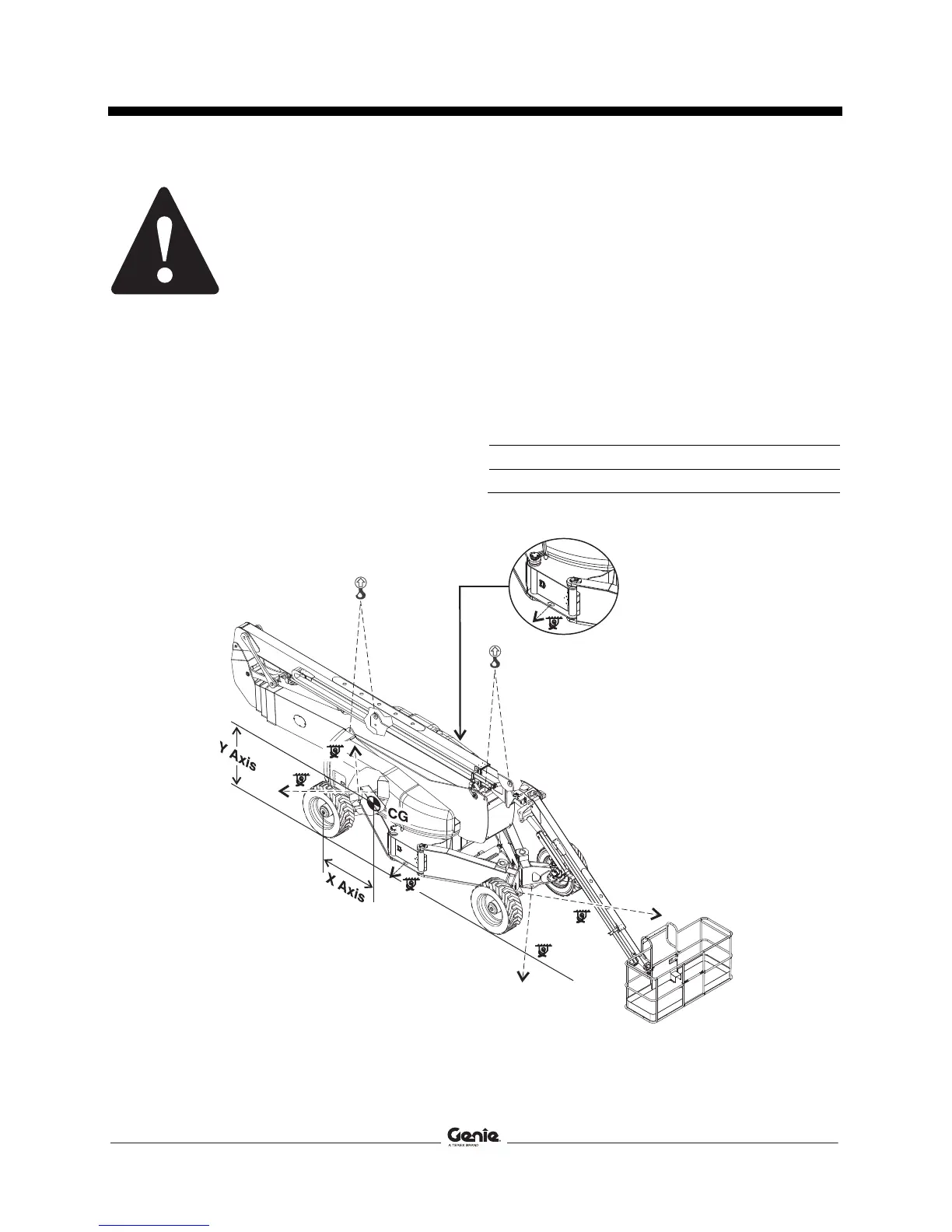

Determine the center of gravity of your machine

using the table and the picture on this page.

Attach the rigging only to the designated lifting

points on the machine. There are four lifting points

on the chassis.

Adjust the rigging to prevent damage to the

machine and to keep the machine level.

Center of gravity X Axis Y Axis

ZX-135/70

1.12 m 1.5 m
