INSTALLATION GUIDE
Page 43
Connection procedure
Detailed wiring diagrams
Typical Sensor Wiring for Temperature Probes
An inside temperature sensor should be located in the area which gives the most accurate
temperature reading to achieve optimum ventilation. The sensor should be connected to
the controller with a shielded two-wire cable. It should be located in an area protected
from operating machinery, animal bites, personnel or anything that could damage the
sensor.
The outside temperature sensor should be installed in a location which is not influenced
by heat generated from inside the building or direct sunlight. It should also be protected
from physical damage.

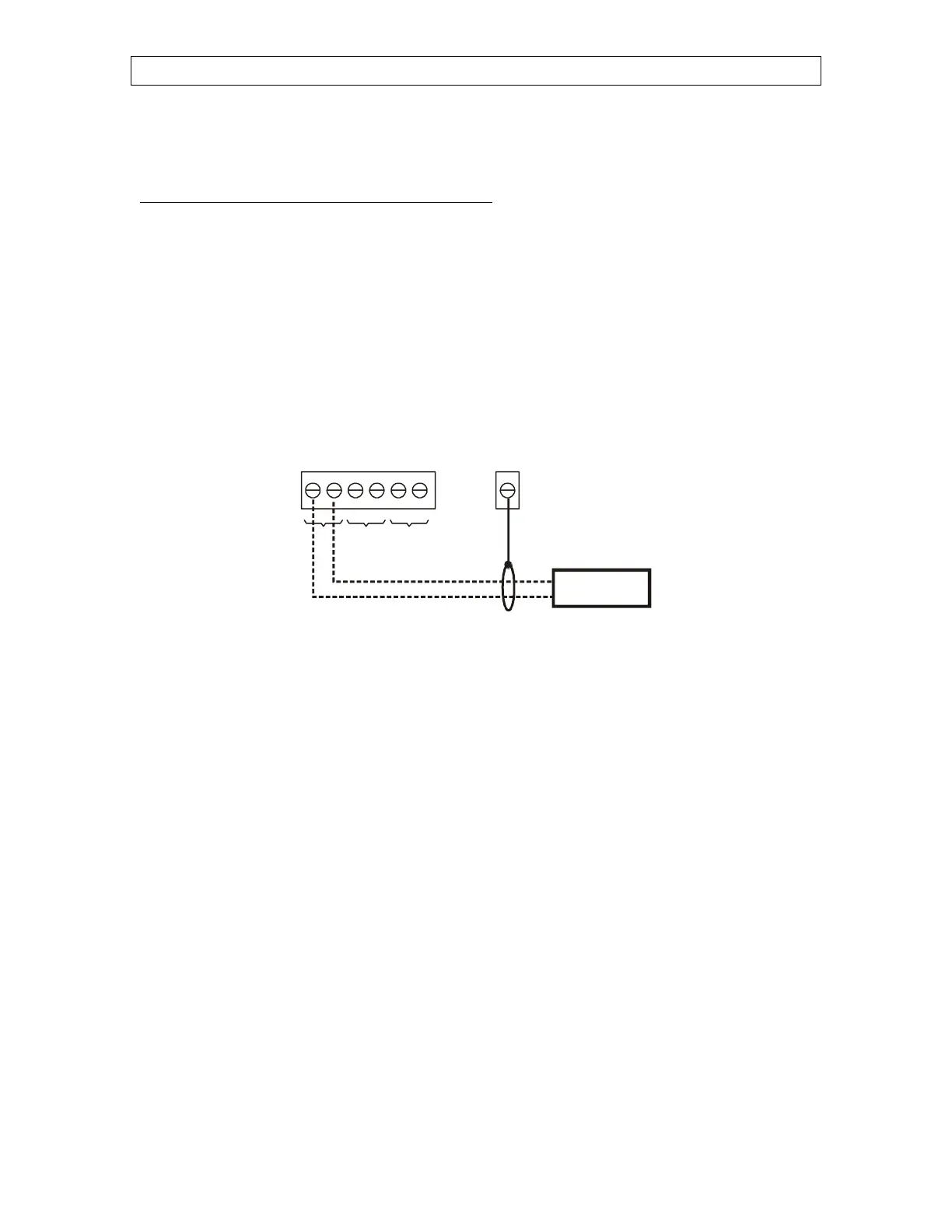

FIGURE NO. 2 Typical Temperature Probe Wiring
