Genius iTouch Series User Manual

INSTALLATION GUIDE
Page 45

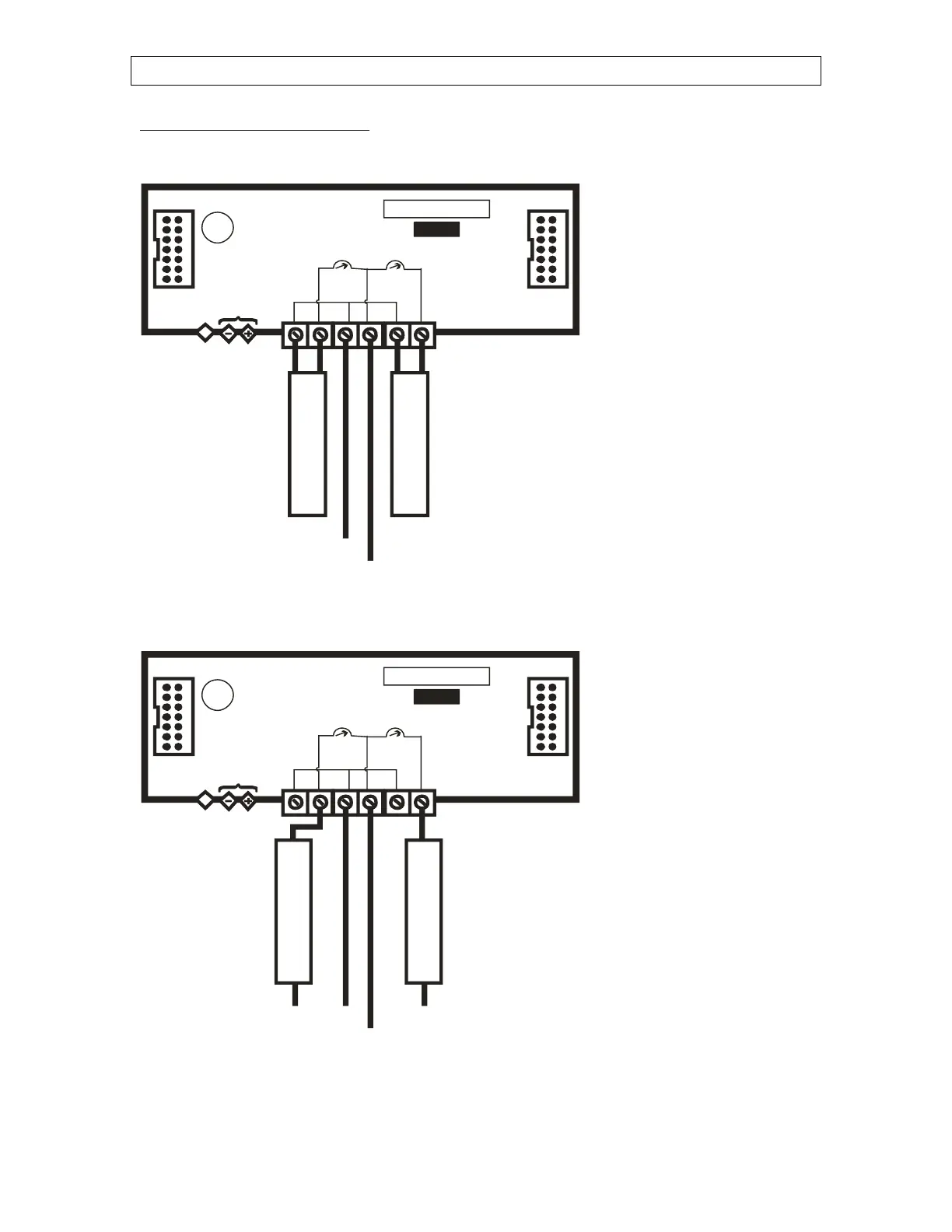

Typical Variable Stage Wiring
FIGURE NO. 4 Typical Variable Stage Wiring
VAR. BOARD
VARIABLE
OUTPUT 1
L1
L2/N
VARIABLE
OUTPUT 2
OUT 1
LINE
115/230 OUT 2
L2/N OUT
VAR OUT
L2/N OUT
VAR OUT
L1
L2/N
F
SHIELD
VAR
X1204
FIGURE NO. 5 Other Variable Stage Wiring
VAR. BOARD
VARIABLE
OUTPUT 1
L1
L2/N
VARIABLE
OUTPUT 2
OUT 1
LINE
115/230 OUT 2
L2/N OUT
VAR OUT
L2/N OUT
VAR OUT
L1
L2/N
F
SHIELD
VAR
X1204
L2/N L2/N
Note : For this wiring, the power source of the variable stage must be in phase with the
power source of the X1204 or X1418 VAR. BOARD.
