Genius iTouch Series User Manual

INSTALLATION GUIDE
Page 49
Typical V1 or V2 Module Wiring
Those modules are used to add one or two variable outputs. The added outputs will
follow the existing variable outputs of the VAR BOARD (X1204 or X1418).

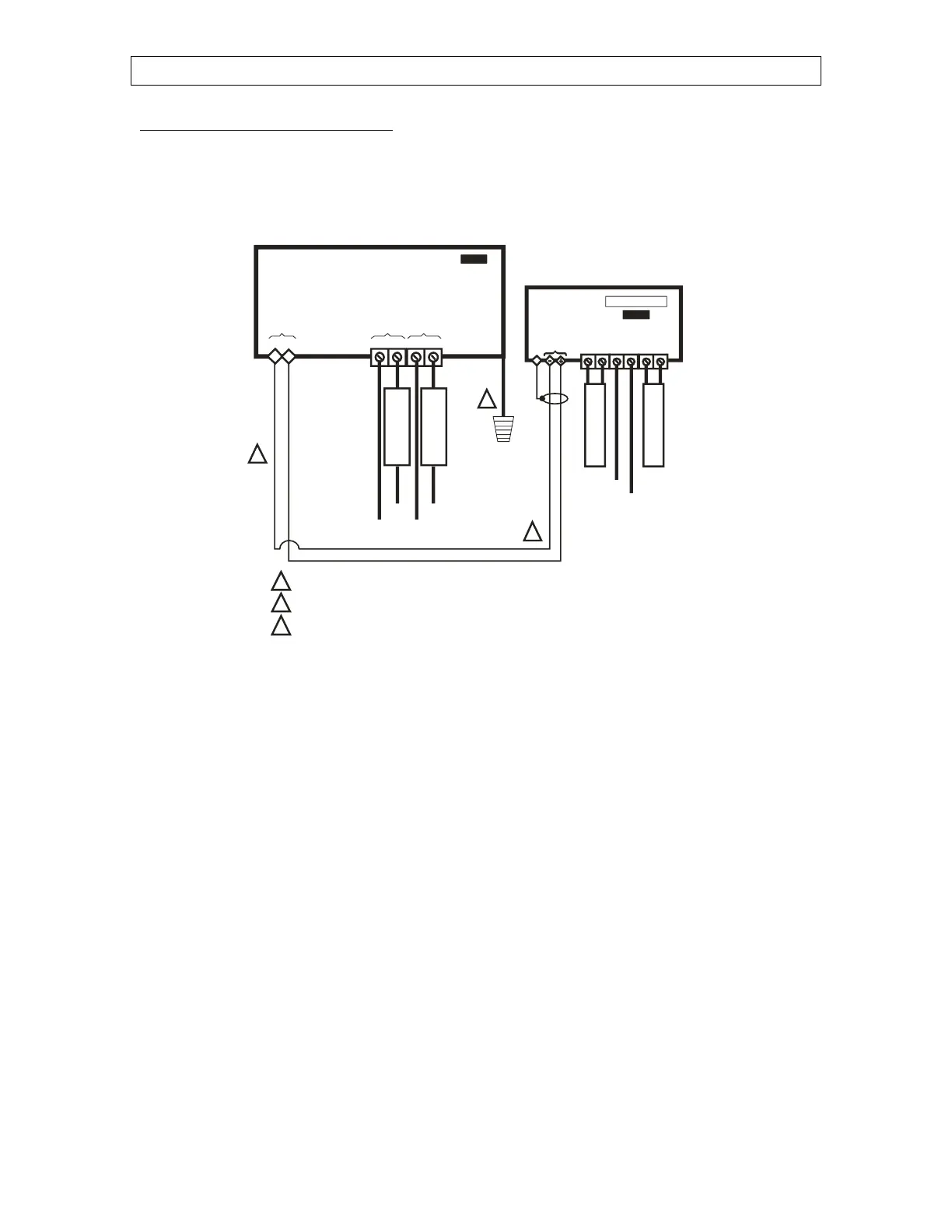

FIGURE NO. 11 Typical V1 and V2 Module Wiring
VAR. BOARD
L1
L2/N
OUT 1
LINE
115/230 OUT 2
L2/N OUT
VAR
OUT
L2/N OUT
VAR
OUT
L1
L2/N
SHIELD
VAR
X1243
-
+
1
2
OUT 1
115 / 230VINPUT
1
2
OUT 2
115 / 230V
L2/N L2/N
OUTPUT 1
OUTPUT 2
(V2 ONLY)
L1 L1
The module V# require the same phase and same voltage as the VAR. BOARD to operate
1
1
2
Use a wire connector to connect the ground wire to the ground of the electrical installation.
2
3
Communication wiring shielded, twisted pair (8 twist/ft). Max length for 350pf/m cable : 160 ft (50m).
max length for 89pf/m cable : 650 ft (200m).
3
X1204
OUTPUT 1
OUTPUT 2
