Genius iTouch Series - Typical Actuator Wiring; FIGURE NO. 6 Typical 115 VAC-Actuator Wiring; FIGURE NO. 7 Typical 24 VDC-Actuator Wiring

INSTALLATION GUIDE
Page 46
Typical Actuator Wiring
Follow the calibration procedure in the user guide; otherwise the actuator positioning will
be erratic.

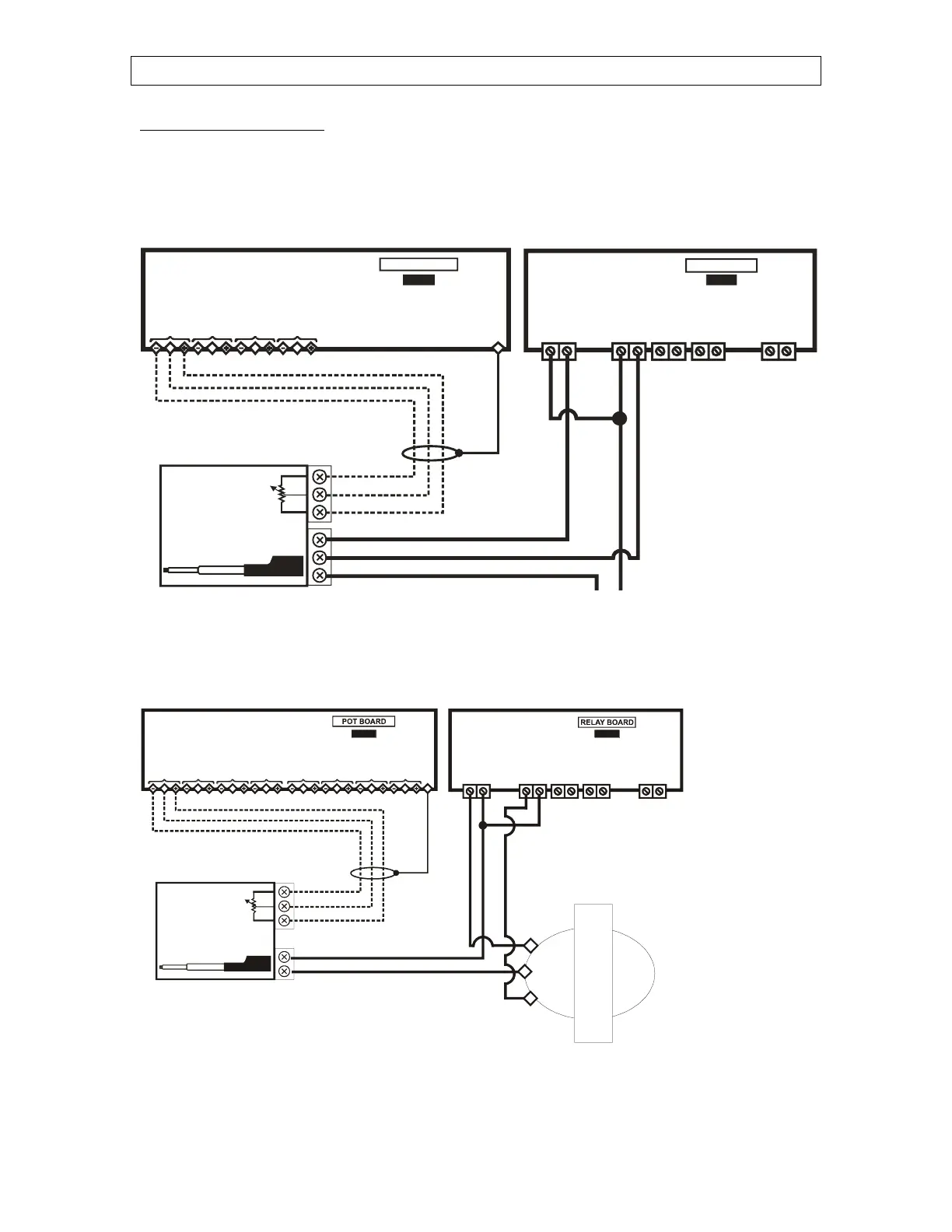

FIGURE NO. 6 Typical 115 VAC-Actuator Wiring
FEEDBACK
POTENTIOMETER
CLOSE
OPEN
COM
WINCH
N L1
115 VAC
WINCH
C
-
+
POT BOARD
POT 1 POT 2
W W
SHEILD
POT 3 POT 4
W W
NO C
RELAY BOARD
CNONO C NO C NO C
X1205 X1184
FIGURE NO. 7 Typical 24 VDC-Actuator Wiring
FEEDBACK
POTENTIOMETER
+
-
WINCH
24 VDC
WINCH
C
-
+
POT 1 POT 2
W W
SHIELD
POT 3 POT 4
W W
NO C CNONO C NO C NO C
X1205 X1184
POT 5 POT 6
W W
POT 7 POT 8
W W
TRANSFORMER
EXTERNAL
±24 VOLTS
POWER SUPPLY
+24V
GND
-24V
