INSTALLATION GUIDE
Page 44
Typical Feed Sensor Wiring
Feed sensors (ex.: CSD-1 Current Switch Detector) should be mounted inside the
controller enclosure with the feeder power wire running through the sensor loop. If a
single sensor monitors multiple feeder circuit, run the wires from all feeder groups the
same direction through the sensor loop.
The best use for a single feed sensor is monitoring your silo auger motor. This provides a
clear indication of all feed entering the building and it provides an alarm when the feed
silo is empty.

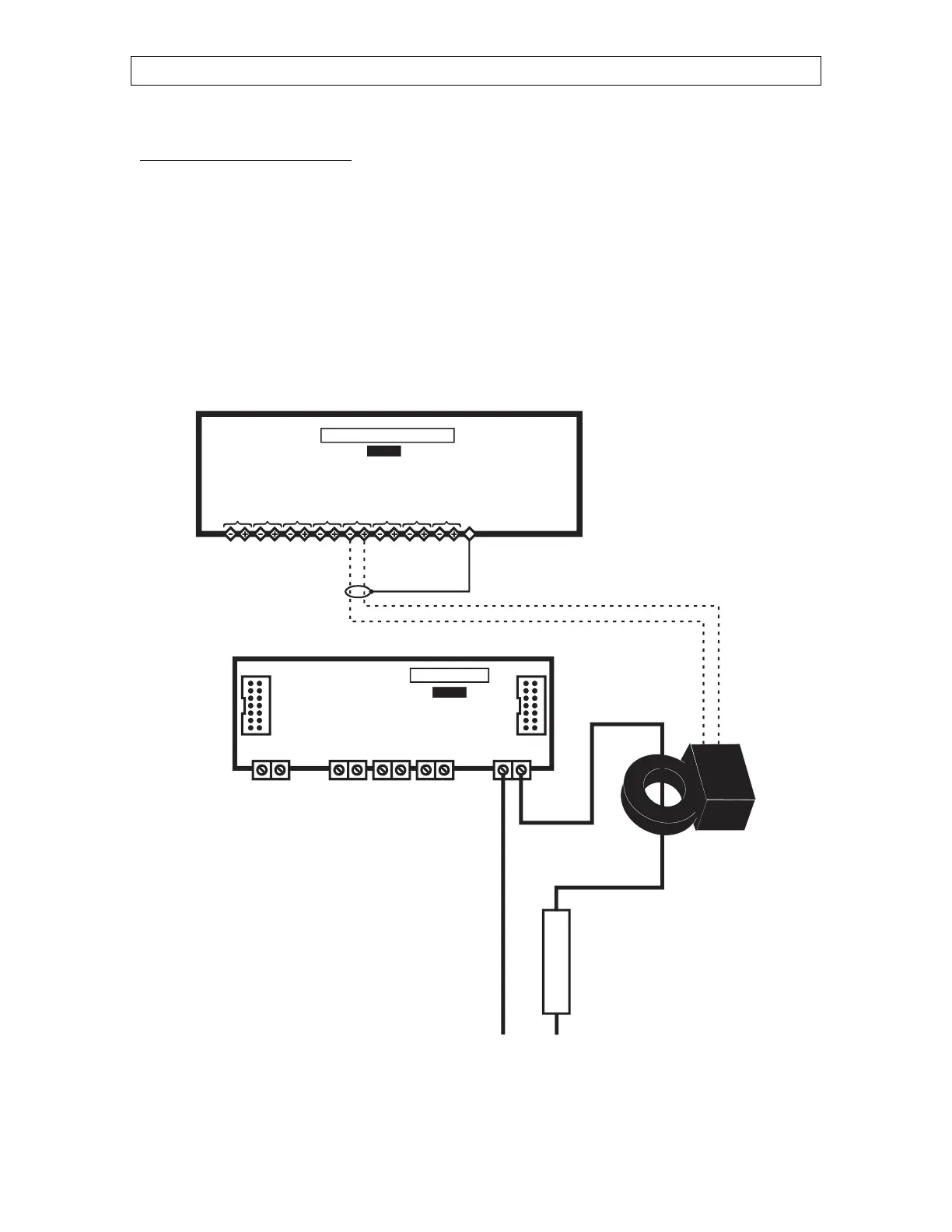

FIGURE NO. 3 Typical Feed Counter Wiring
