3 User Interface

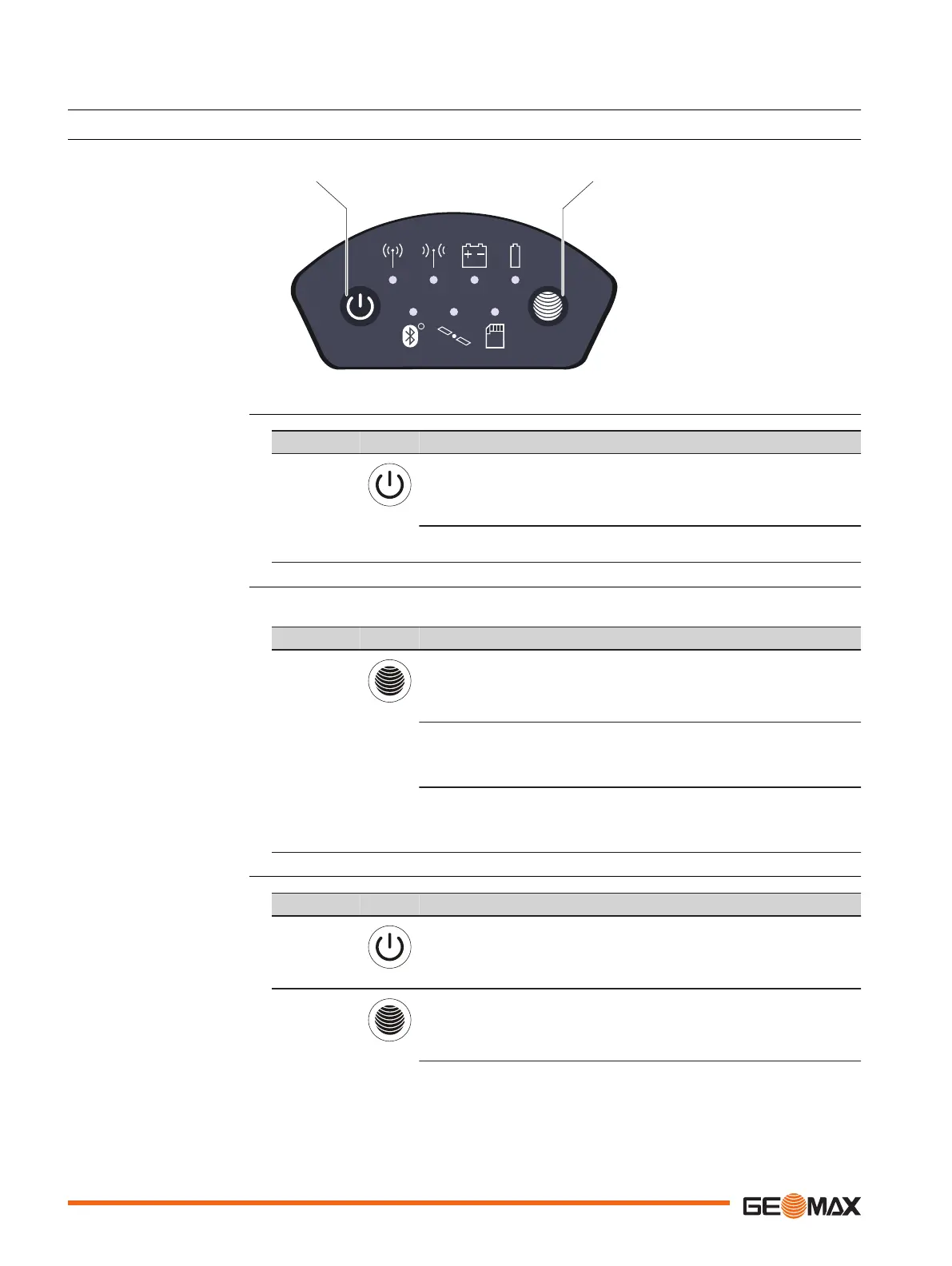

3.1 Keyboard
R
17111_001
a
b
a ON/OFF button
b Function button
Button Function
ON/OFF
If the GNSS receiver is off:
Turns on the GNSS receiver when held for 2 s.
☞
While the Zenith16/40 is booting the two Power LEDs
flash.
If the GNSS receiver is already on:
Turns off the GNSS receiver when held for 2 s.
☞
All functions described assume the Zenith16/40 is already on.
Button Function
Function
Press and hold button for <1 s.
Switches the receiver between rover or base mode.
Press and hold button for 3 s.
Updates the base position coordinates when the GNSS receiver is in
base mode. The RTK base LED flashes for 2 s. When no position is
available, the LED flashes red.
Press and hold button for 5 s.
Connects to the configured RTK base station or NTRIP server when
the GNSS receiver is in rover mode. The RTK rover LED flashes for
2 s. No action if a rover mode is not configured.
Button Function
ON/OFF Press and hold buttons for 1 s.
Function
The current almanacs stored on the GNSS receiver are deleted, new
almanacs are downloaded and the measurement engine is reset. The
Position LED flashes red three times.
Press and hold buttons for 5 s.
Description
ON/OFF button
Function button
Button combinations
16 User Interface
